Need 3 parts for GA windows.

Quick Learner from Norman Oklahoma

Apr 10, 2023 7:31 pm

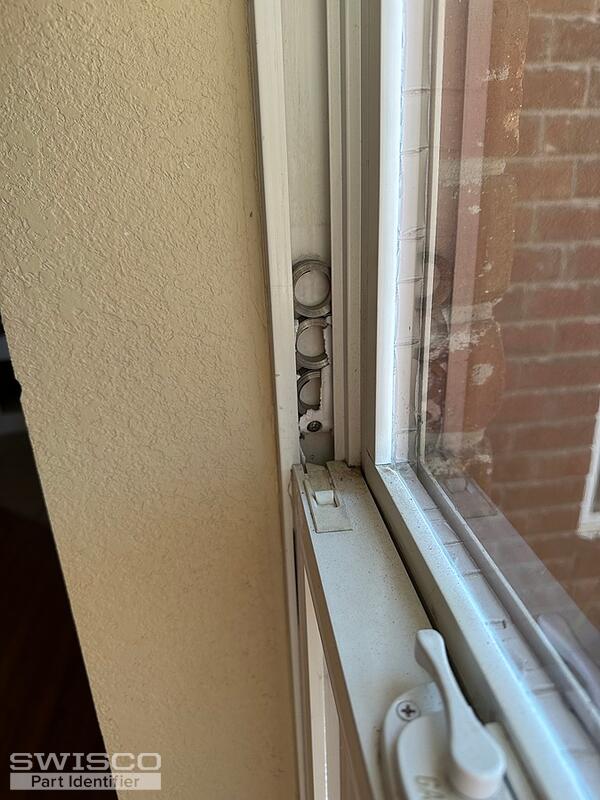

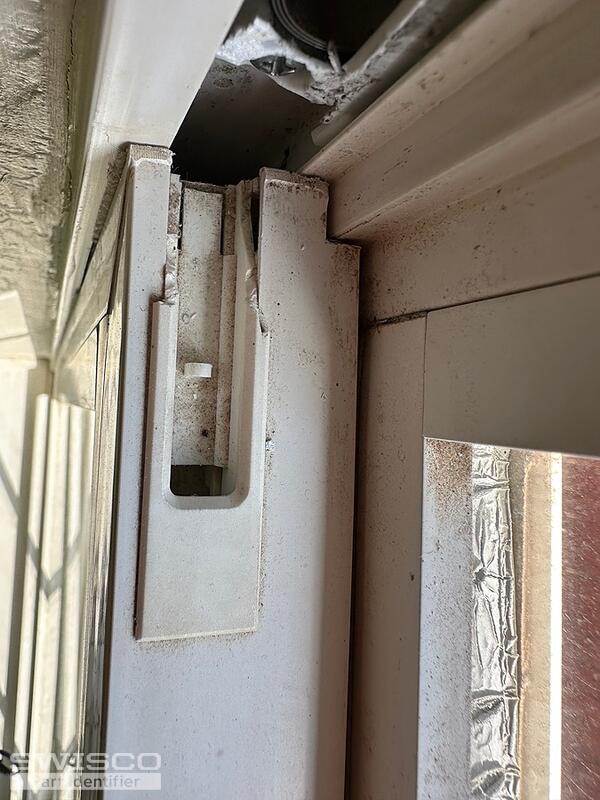

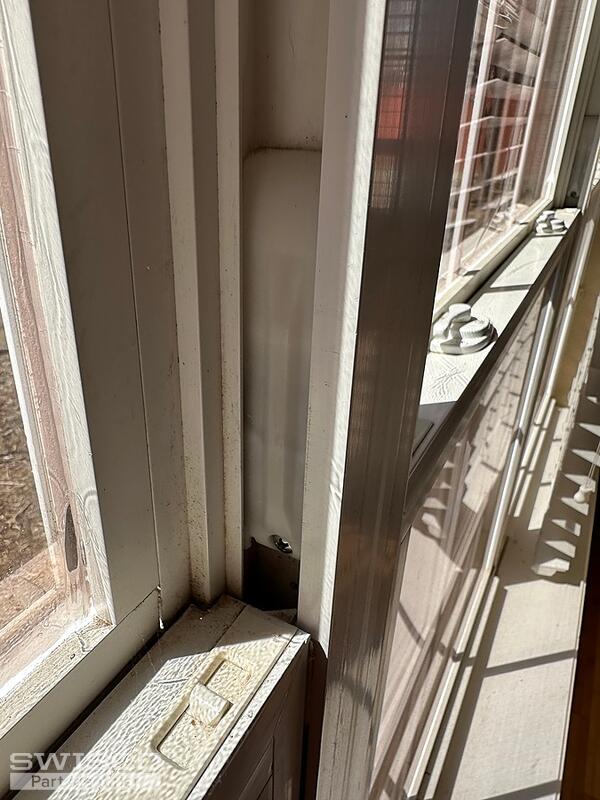

IMG 0726 This is the latch to secure window need 3 on each side

IMG 0727 Need plastic covers 4 for Lt side of the window and 3 Right side

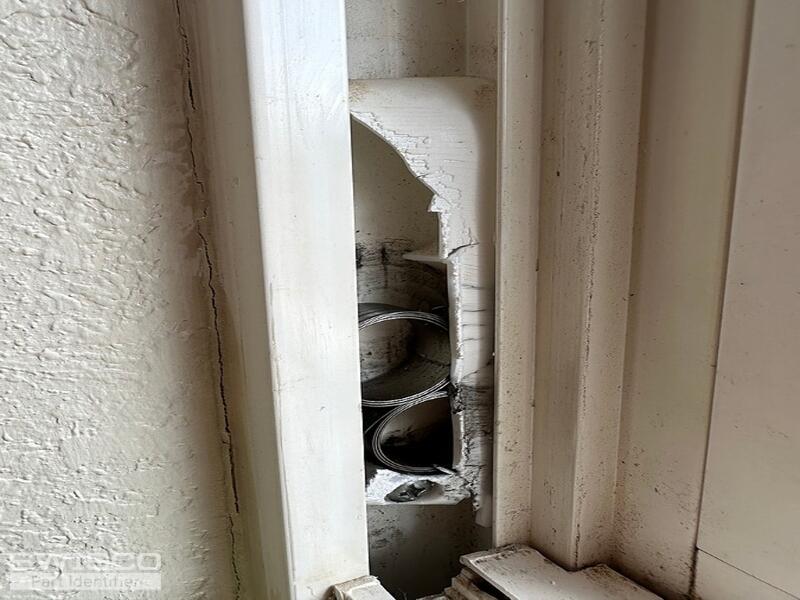

IMG The whole 3 coil kit including plastic cover .

5 user uploaded images

10 Replies

Casey from SWISCO

Apr 11, 2023 3:49 pm

Hello,

We can't be sure but I would recommend starting by removing an undamaged tilt latch from one of your windows to compare to the specifications of the 26-243 and 26-244.

As for the cover, we would need to see your balance assembly fully removed from the window to confirm which of our covers would be compatible. We've related a few videos on this page to assist you. Thank you!

Quick Learner from Norman Oklahoma

Apr 12, 2023 11:49 am

Hello Casey,

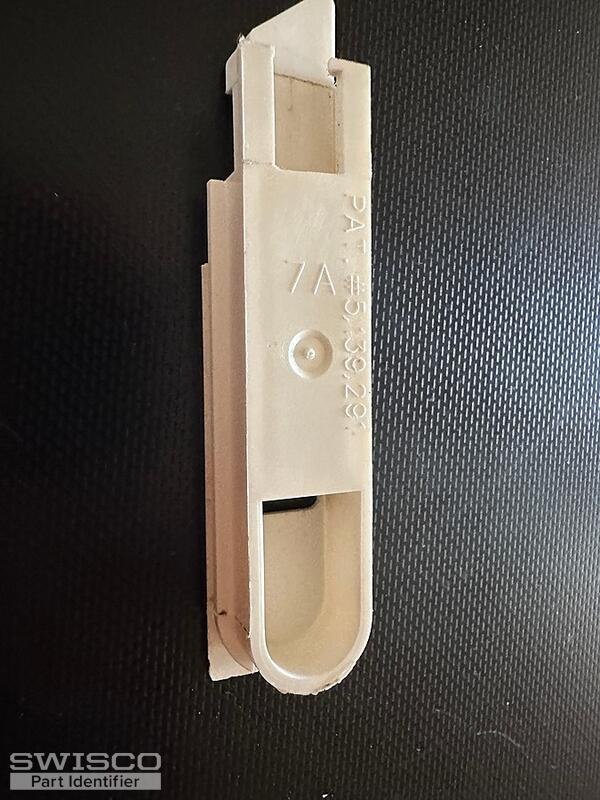

Here is a picture of the latch. It is written Pat # 5, 139,291 7A and 8 D

For the plastic cover I do not know how to take the whole system out .is there any other way I can send you a close-up picture? . It is a 3 coil system.

1 user uploaded image

Casey from SWISCO

Apr 12, 2023 12:11 pm

Unfortunately, we do not have a direct phone line but we'd be happy to assist you further through this thread. First, take a look at our video below to help you through the process of removing your could balance hardware.

As for the tilt latch, unfortunately, the mold number does not confirm the correct replacement. With that being said, you should be good to go as long as the dimensions below match an undamaged version of the tilt latch shown in your photos.

Alternate view of 26-244

Profile view of 26-244

Quick Learner from Norman Oklahoma

Apr 12, 2023 6:58 pm

Both dimensions are the same for 243 and 244 ?

Casey from SWISCO

Apr 13, 2023 8:19 am

Correct, they are opposite-handed versions of the same part.

Quick Learner from Norman Oklahoma

Apr 13, 2023 11:56 am

OK
Then the dimensions are correct.
Then I need 5 counts of 244, and 3 counts of 243

2 counts of 3 coil set (including plastic covers etc.)
Do you sale just the coils then I will let you know that

And 7 Plastic covers for Lt side to cover coils and 2 for Right side to cover coils.

Casey from SWISCO

Apr 13, 2023 12:08 pm

Great, we are not able to process orders through this thread but you are welcome to order the 26-243 and 26-244 tilt latches directly on our website or by giving our customer service team a call at (888) 991-1929.

As for your coil balance hardware, we would still need to see your assembly fully removed from the window to determine which of our replacements could work for your repair.

Quick Learner from Norman Oklahoma

May 19, 2023 11:45 am

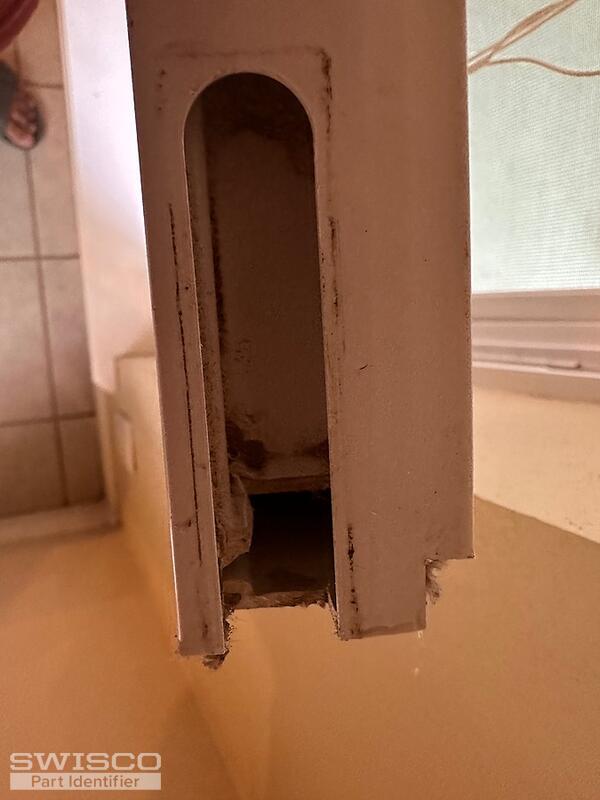

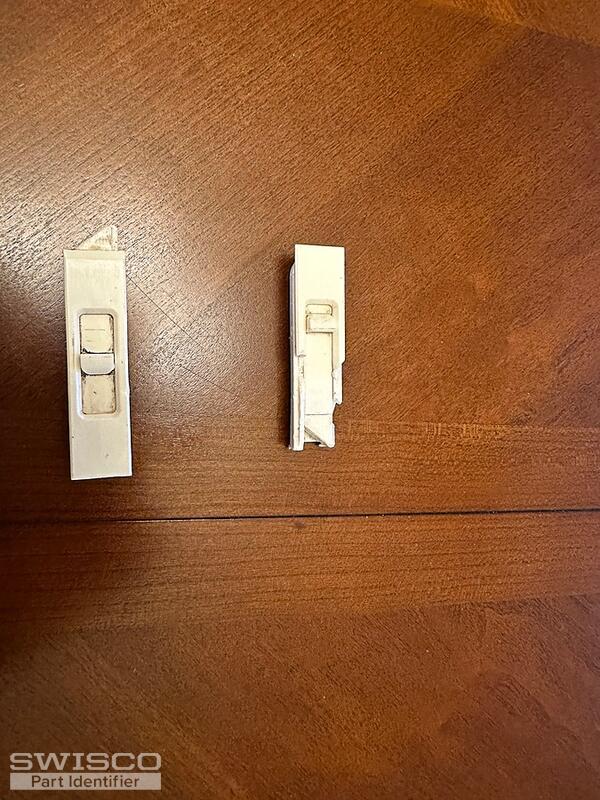

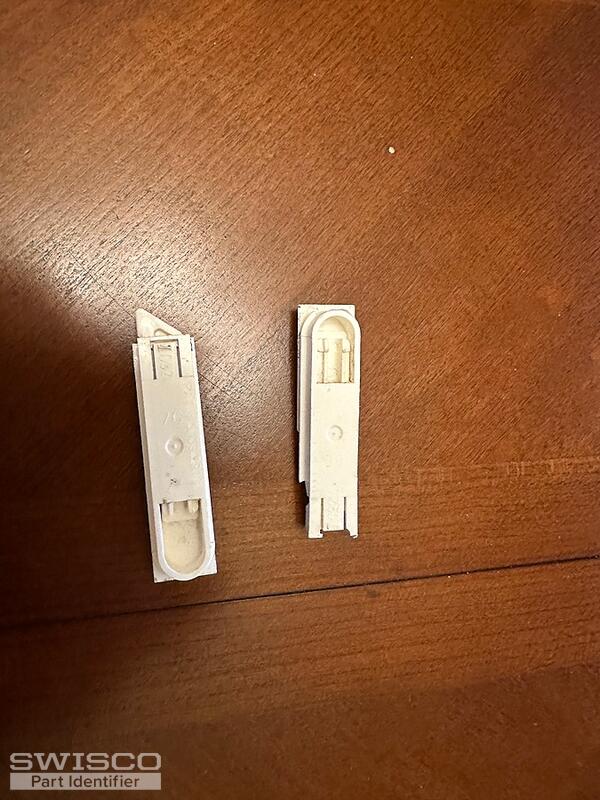

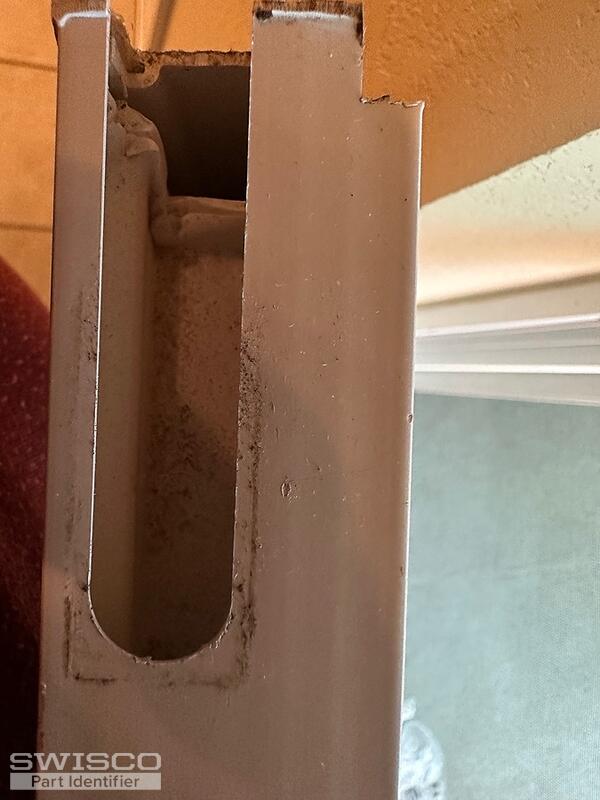

Here are the pictures of the latches and the slots
The dimensions are as depicted in your pictures

4 user uploaded images

Casey from SWISCO

May 19, 2023 12:40 pm

Unfortunately, we can't confirm measurements based on photos but as long as the dimensions included in this thread match up to your part, you should be good to go.
