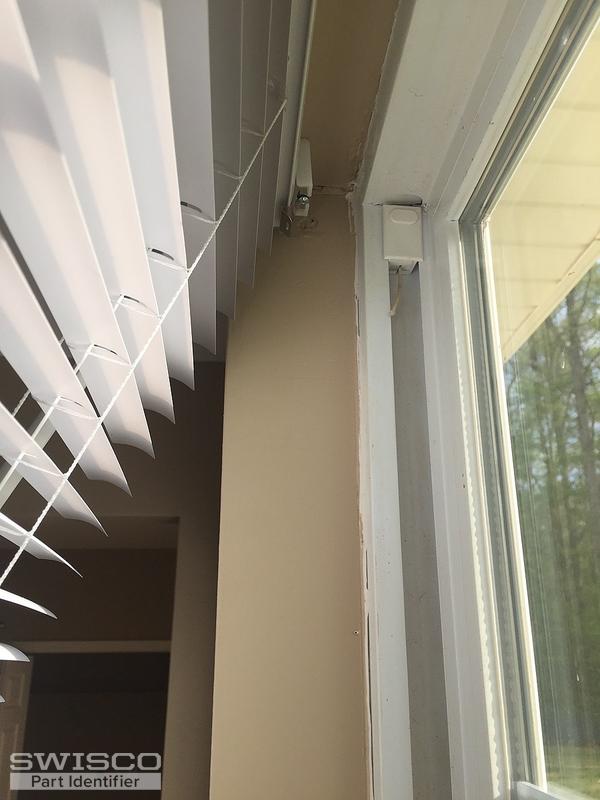

Need 4 channel balance assemblies for tilt SH new construction windows like these.

A contractor from North Carolina says:

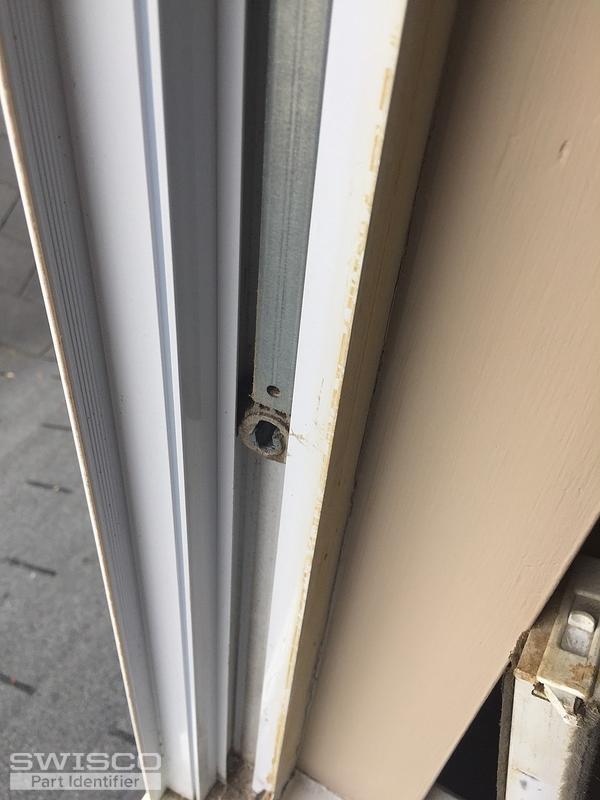

I've never seen the cover like what's at the top of the balance and I didn't open it up.
Also, not sure why photos are sideways...

Can you provide replacement balances?
Thumbnail of the uploaded file named 8C2E19FA-20B8-4963-890D-D08FEA28E8F3.jpeg
Thumbnail of the uploaded file named A3BC0C45-0A46-4C6E-A1E7-895AD5A4289A.jpeg

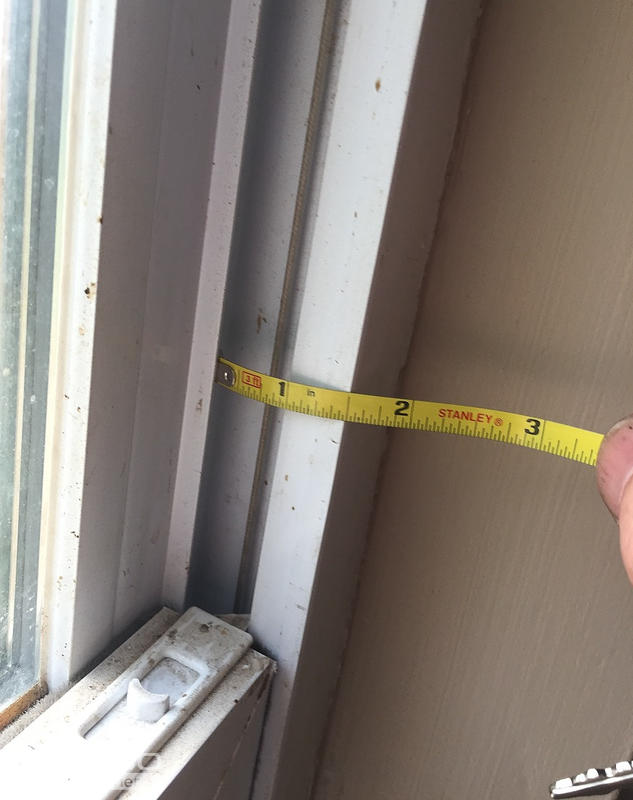

Thumbnail of the uploaded file named 3A911583-F393-478B-B8D2-C77FA0350DB0.jpeg

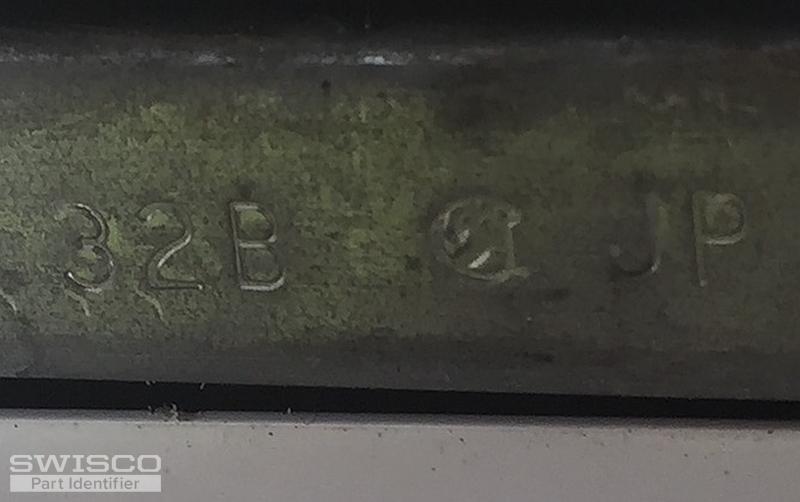

Thumbnail of the uploaded file named 32B
Profile picture of Paul
Paul from SWISCO responded:


Based on your photos, you'll need our S795-32 channel balance that comes with a 1-1/4" wide T-Lock shoe. The spring strength option will be 32B. The balance top is our 26-053. Thank you!
