Need 4 pivot bars for Unishield window : SWISCO.com

Home Owner from Huron, OH

Apr 13, 2025 8:25 am

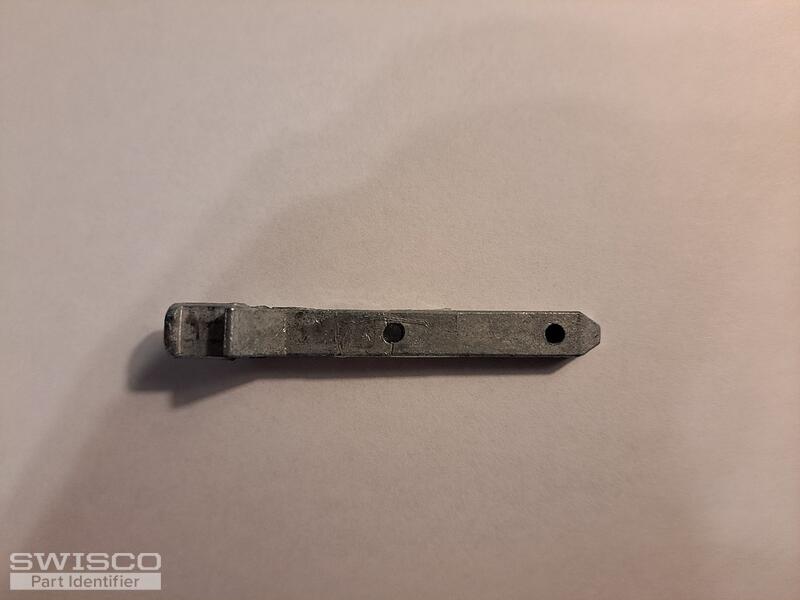

The above photo is only PART of the pivot bar for a Unishield window. (It broke and the other end is still in the window frame.) The piece shown is 1 3/8 inches long, 1/2 inch at the widest part, I see no markings on it. The window frame had two stickers on it that might help you. I've attached photos of those as well.

3 user uploaded images

4 Replies

Emily from SWISCO

Apr 15, 2025 10:58 am

Thanks for reaching out to us. We're happy to research this further. Would it be possible for us to see an undamaged version of this pivot bar? We would also like to see a photo of the pivot shoe.

Home Owner from Huron, OH

Apr 15, 2025 12:43 pm

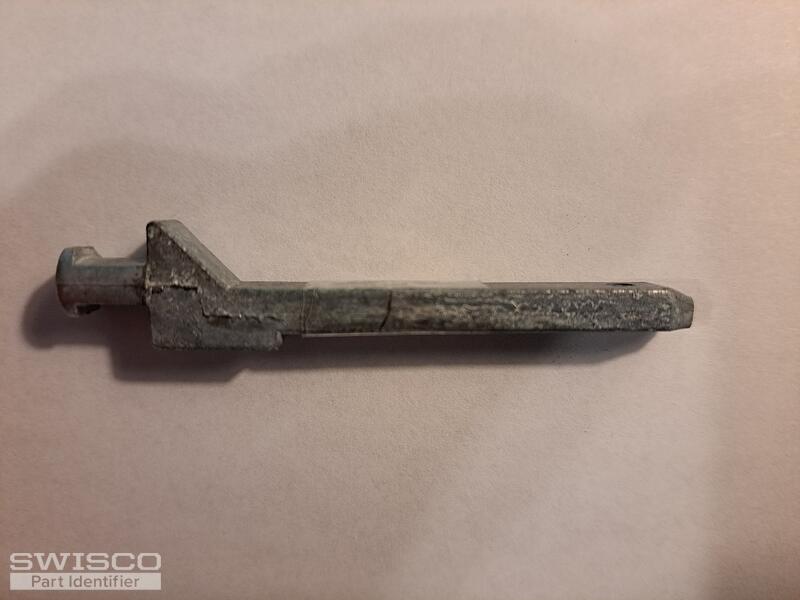

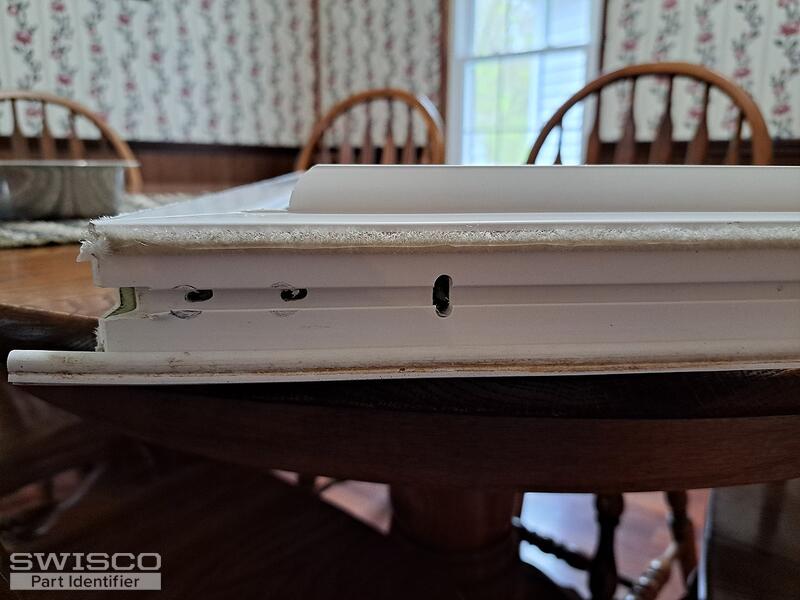

I assume the pivot shoe is the place in the window frame where the bar goes... I was able to extract the other end of the bar and get a pic of the frame. Both attached. The complete bar is 2 5/8" long. Thanks for your help.

3 user uploaded images

Emily from SWISCO

Apr 16, 2025 9:10 am

The pivot shoe is the part below the coil balances, but these photos are perfect! Your pivot bar resembles the 26-438. However, this isn't a direct match, so you may need to modify it by grinding down the collar so it's flatter. Just note that modified parts can't be returned for a refund. Take a look at the specifications and see what you think.

Dimensions for 23-26-438
