Need 8 of the described window channel balances

Quick Learner from FL

1/2" wide

Metal channel 37" long

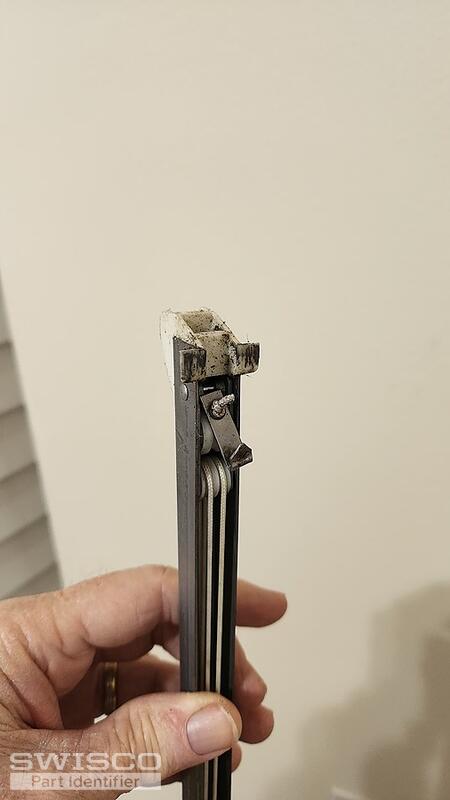

Ends as shown in photos

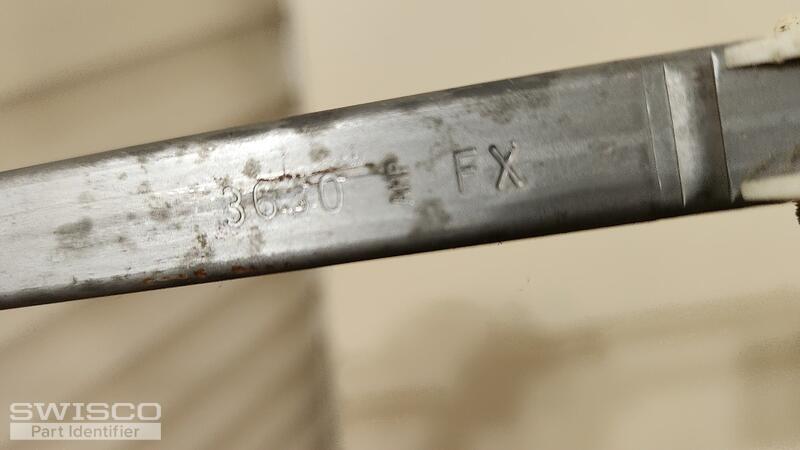

Stamping reads 3630 FX (with small characters AHP between the 3630 and the FX)

My name is Keith

5 user uploaded images
4 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Hey Keith. This looks like either an S380-37 or S385-37 Channel Balance. The only difference between these two balances is the 'depth' of the bottom nylon shoe, or the 'heel-to-toe' measurement. See the diagram below for reference. Compare both balances with your old hardware to see what matches best. In either case for a stamp option choose 3630.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from FL
Hi Bob. The heal to toe measurement is 1" which it seems makes the part I need the S380. If you agree please inform me of the process for me to purchase 8 of these from you and have them shipped to me at:
Keith Derby, 231 Fig St., Sebastian, FL 32958
Thank you so much for such a quick reply. It is most appreciated.
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for getting back to me, Keith. Yep, if the shoe is 1" deep then it sounds like you have the S380-37, with a stamp option of 3630. You can order these balances one of two ways. You can order them directly through the online shop. From the S380-37 store page, simply click "Add to Cart", and then click checkout in the top right corner of the screen. Don't forget to set the stamp option you want (3630) and the quantity of balances needed. The other way is to contact our customer service team at the information here. Thanks for the kind words, and let us know if you need anything else!
