Need Anderson Window Parts

Home Owner from Melville, NY
May 10, 2023 11:35 am
I am hoping you can help me. I have a picture window with two casement style windows on either side. It was installed around 2004 in a summer house by the beach. All of the hardware is rusted and corroded but my right side window (from inside) is the worst and I removed the hardware to replace it. The crank handle is stripped, the split arm operator skips and in now broken and the window lock handle is also broke off. The crank handle has the number 1361 356 ST, the operator gear has C-9400-A1 on the front and F-9400-8A on the back, the locking arm has 135143- on one line and L 2 below it. Please let me know if these parts are available. Thanks!

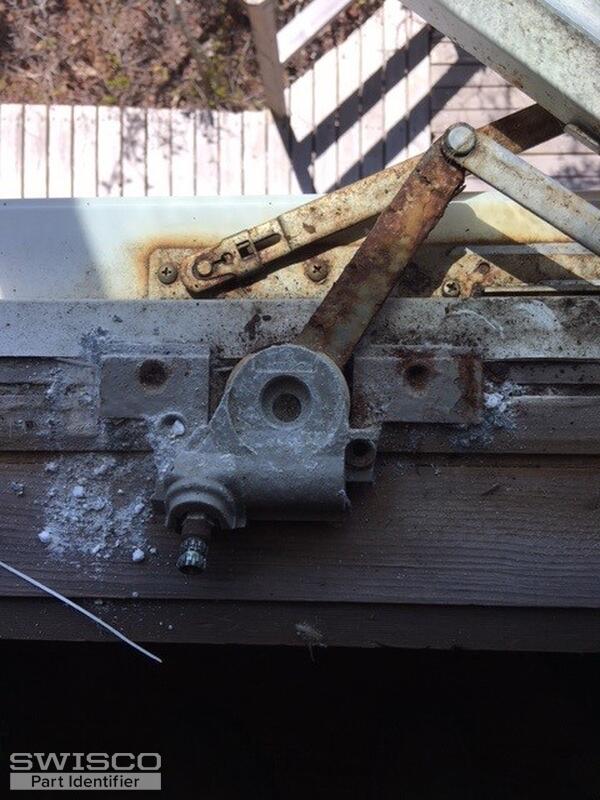

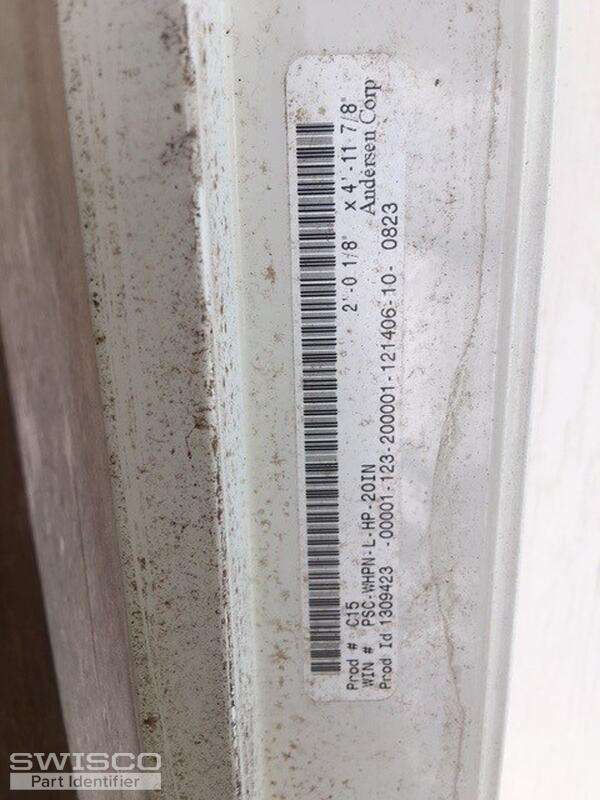

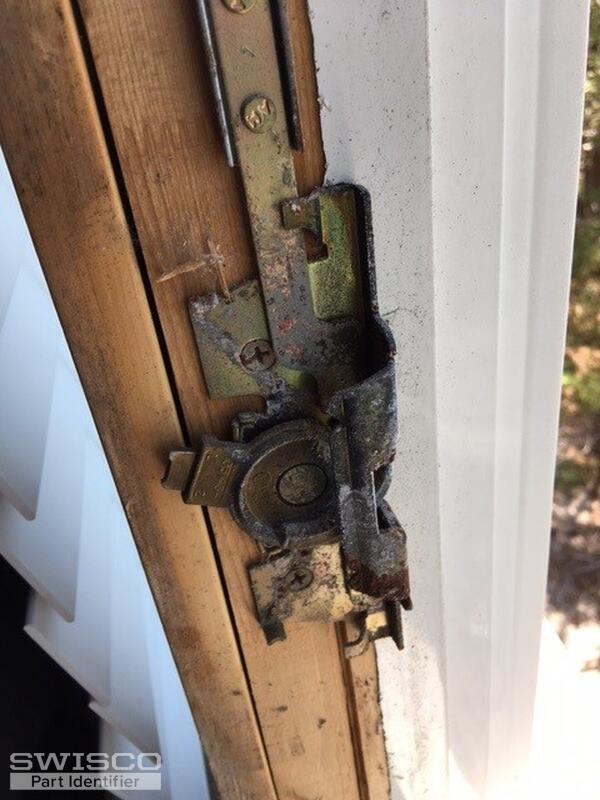

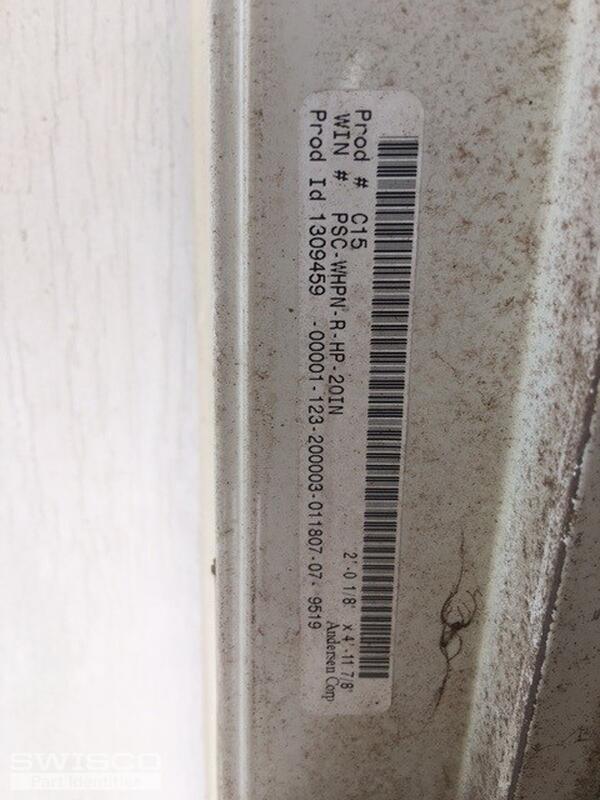

Left Window Sticker Right Window Broken Lock Right Window Broken Operator Right Window Sticker
4 user uploaded images
1 Replies
Tom
Tom from SWISCO
May 10, 2023 12:18 pm
SWISCO
EXPERT

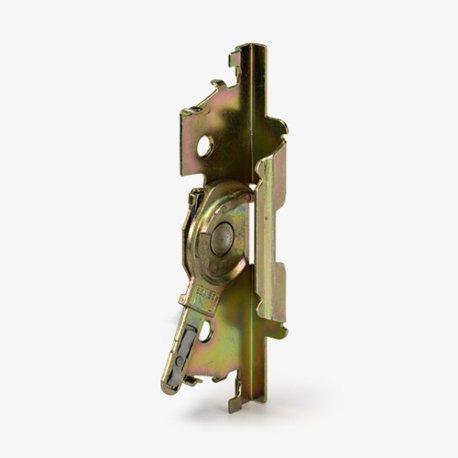

Hello! Looks like you need a new operator and lock. The operator appears to match our 39-264, while your lock matches our 38-146. Look them over and let me know if you had any questions!

Dimensions for 39-264
Dimensions for 39-264
