Need Balance spring help : SWISCO.com

Home Owner from Port Orchard, WA

Aug 3, 2024 10:41 am

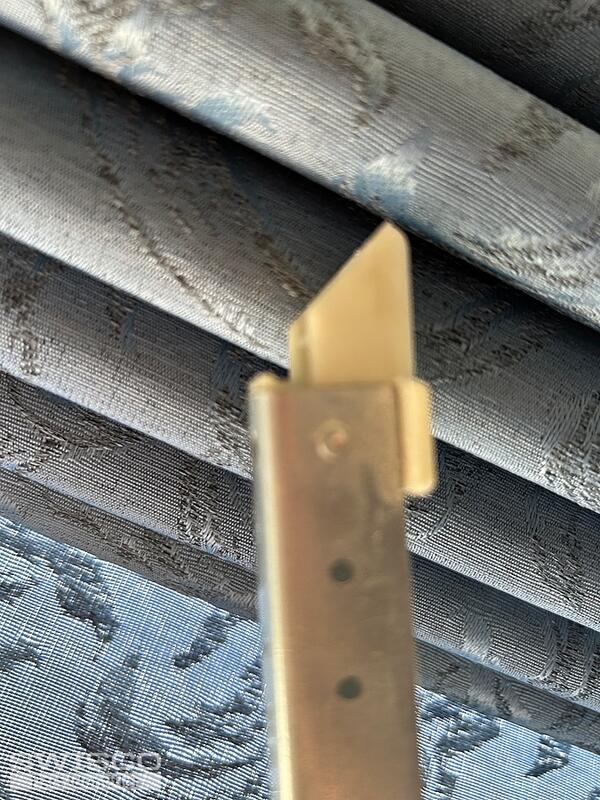

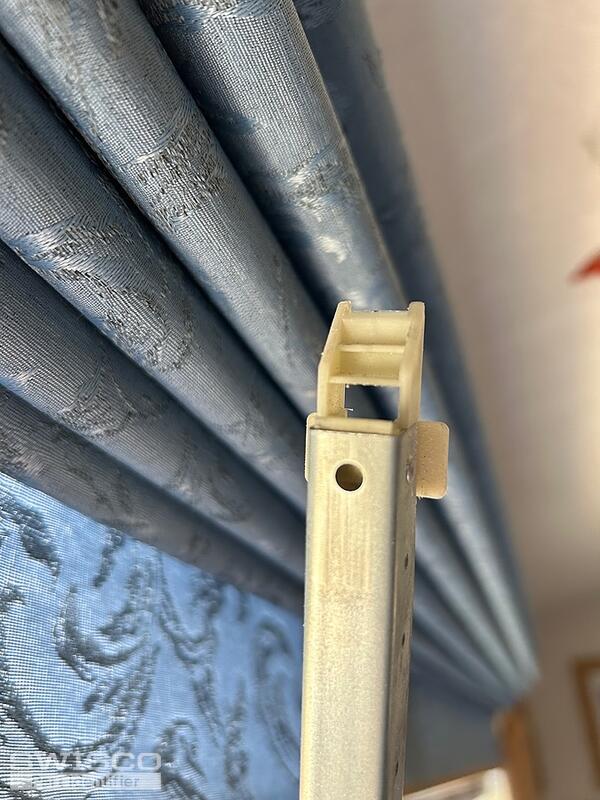

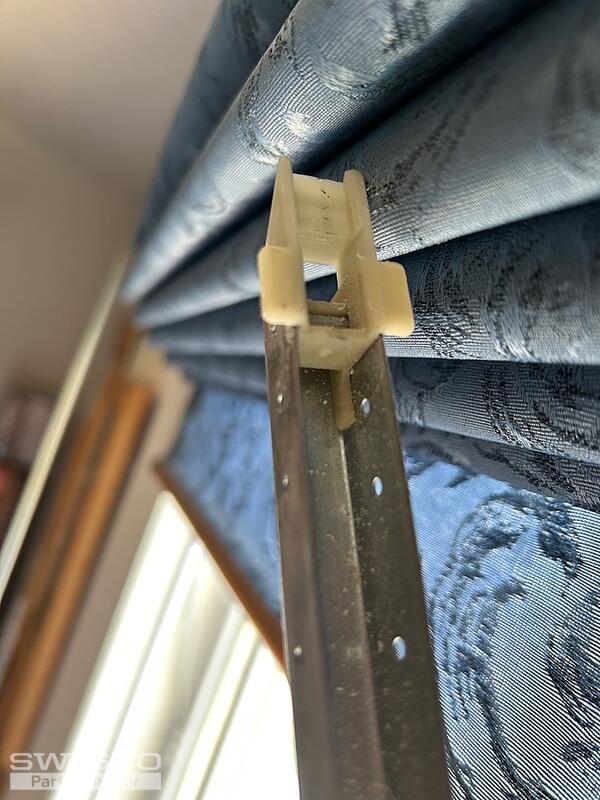

Hi, I uploaded photos of my part needed to replace my balance springs. I weighed the sash at 14 pounds.

I hope you can help me.

Thank you

Linda

5 user uploaded images

4 Replies

Casey from SWISCO

Aug 6, 2024 11:41 am

Hello,

We'd be happy to help but we would need to see the top fitting of your balance fully removed from the window to narrow down your options. See the videos related on this page to assist you in the meantime. Thank you!

Home Owner from Port Orchard, WA

Aug 7, 2024 4:31 pm

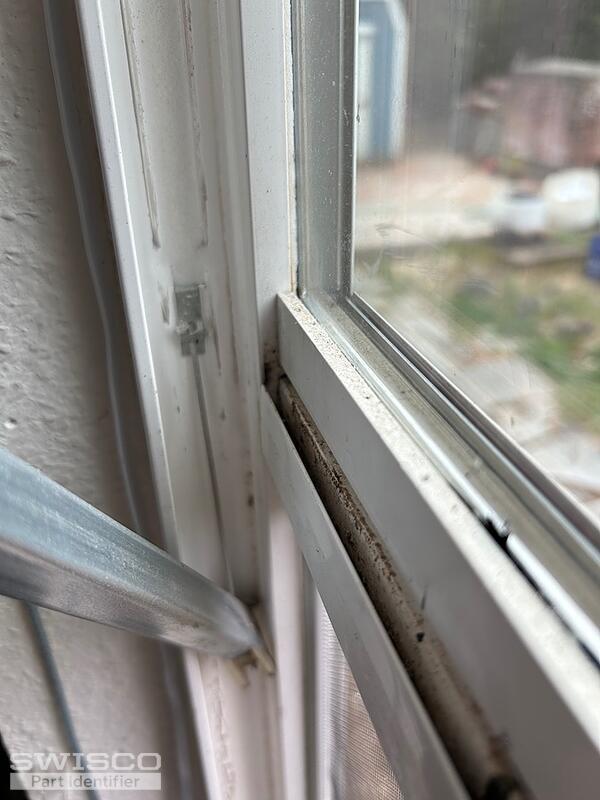

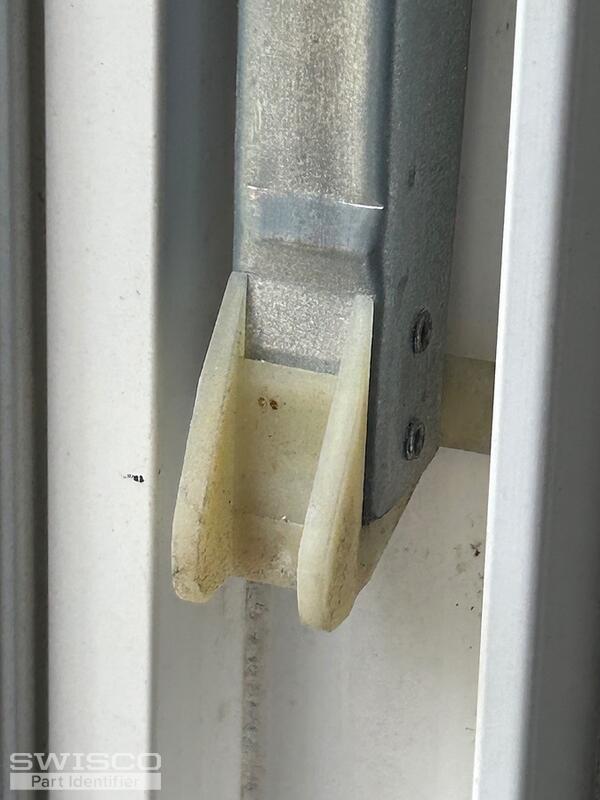

Here are additional photos to help identify my window part.

3 user uploaded images

Casey from SWISCO

Aug 8, 2024 8:11 am

Thanks for getting back to us. With this combination of attachments, you could have either the S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You'll also need 2630 spring strength options for your replacement balances. Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
