Need Balances

Question

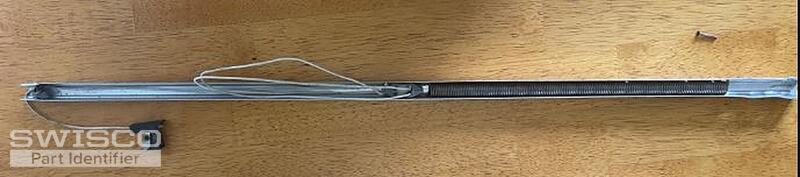

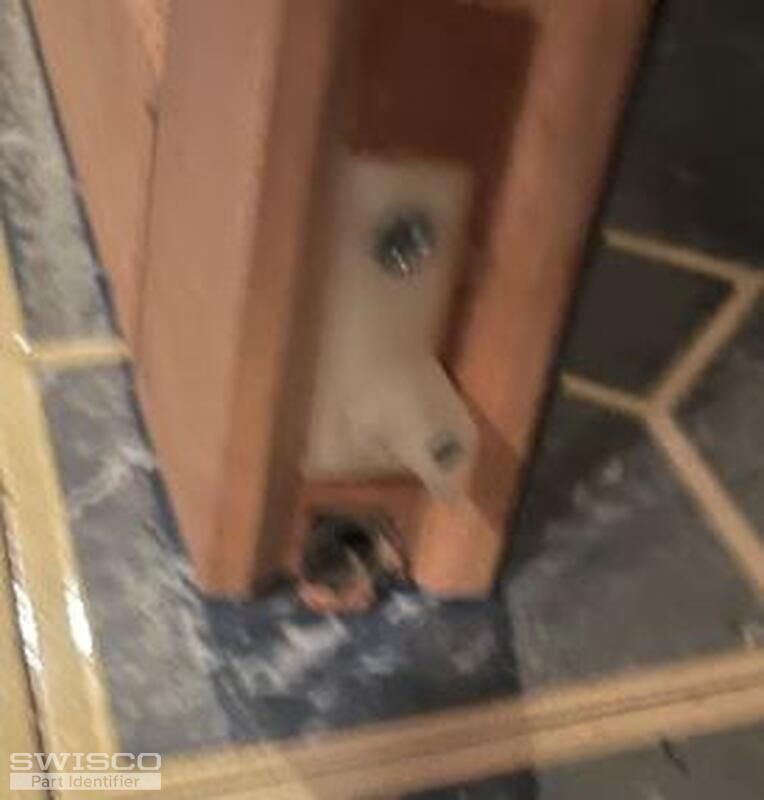

is This is for a LP 3224 double hung window (picture of spare sash included with ID stickers). I have included picture of OAL with views of each side. There is a 24 stamped on the lower sash balance. Due to corrosion, I can’t tell if there is anything else. The sash weighs just over 20 lbs. The top sash balance measures 25” OAL and is stamped 24 HD(? Not absolutely positive about the D)

Thanks for your help.

Casey · Accepted Answer

Hello,

Your balance resembles the S751-25 at first glance. The 24HD strength options will support a sash between 18-22 pounds. We also offer the 26-150 pivots commonly used with this assembly. Review the specifications to confirm they match your original hardware. Thanks for posting!

Close up view of the S751 balance top.

Close up view of the S751 balance shoe.

Dimensions for 26-150
