Need Caldwell balance replacement...

Quick Learner from Oregon

As noted in photo (W2), part is stamped: 10 4 KS Caldwell. Caldwell CSS, John , suggests it is one of Caldwell's Series 86 10-4. Thanks. - Scott

3 user uploaded images
5 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hi there, Scott.

The balance shown here in your photos looks to be either the S380-11 or S385-11. The depth of the bottom fitting as shown in the image below will be the deciding factor. I also recommend the 1040 strength option based on your old stamp.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.

Quick Learner from Oregon
Thanks for the prompt reply Emily. The measurement came out at 1 and 3/32 inches. I've ordered the replacement balances. - Scott
Quick Learner from Oregon

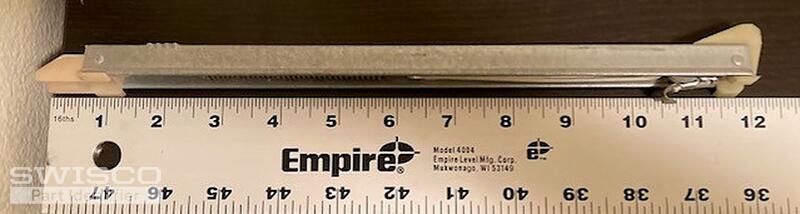

Hi again Emily. Have just watched the how-to videos. Very helpful. It occurred to me to take a length measurement to validate your assumption. Overall balance length is 12 inches. See photo. If that impacts my order, could you please adjust as needed on your end? Thanks. - Scott

Order: 2183222
1 user uploaded image
Emily
Emily from SWISCO
SWISCO
Expert

When determining the length, you want to measure only the metal channel. The metal channel for your balance should be 11". Feel free to use the image below as a reference.

How to measure the length of the Series 380 channel balance.
How to measure the length of the Series 380 channel balance.
