Need Channel Balance

A handy person from Minnesota says:

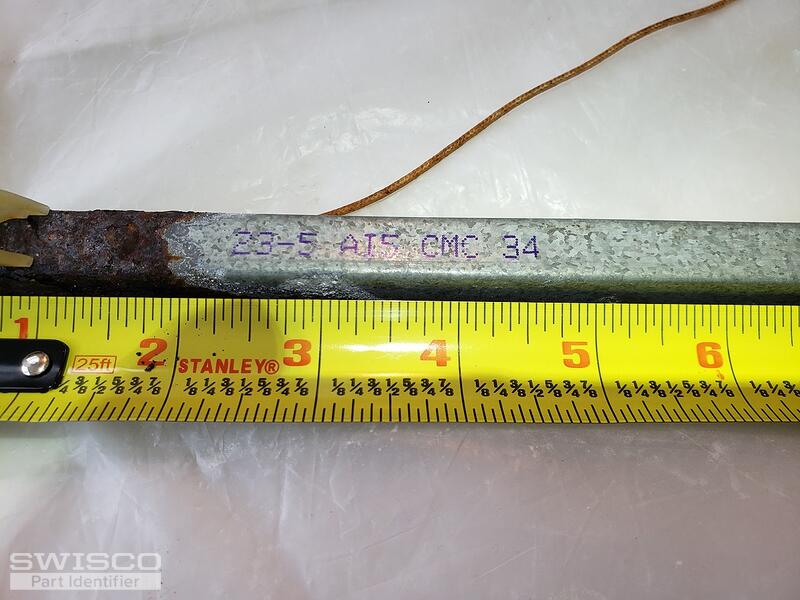

channel balance approx 24" see photo 2: "23-5 AT5 CMC 34" (but is rusted to left)

What series do I need?

Windows installed late 2010 in Florida condo:

"IWC aluminum non-impact windows - bronze aluminum/bronze glass - 36X72 single hung"

Need 6 for 3 window units.

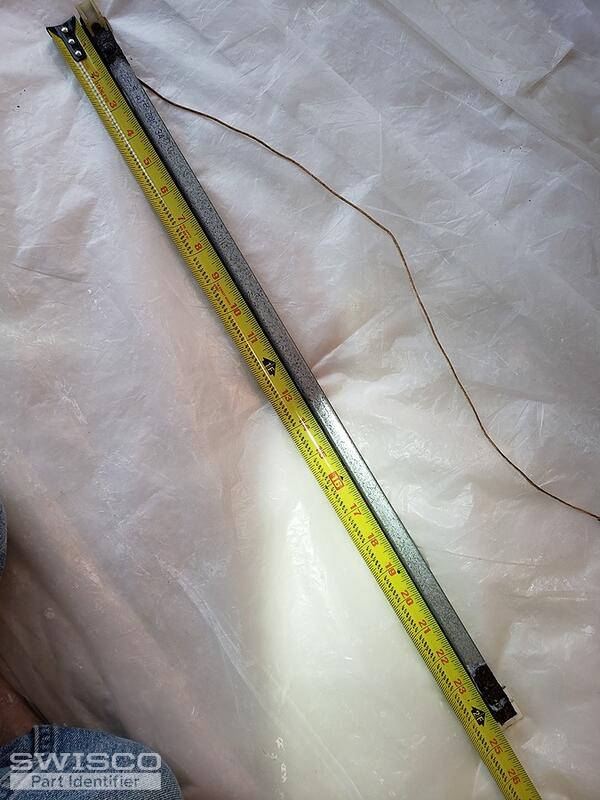

Thumbnail of the uploaded file named channel balance 1.jpg

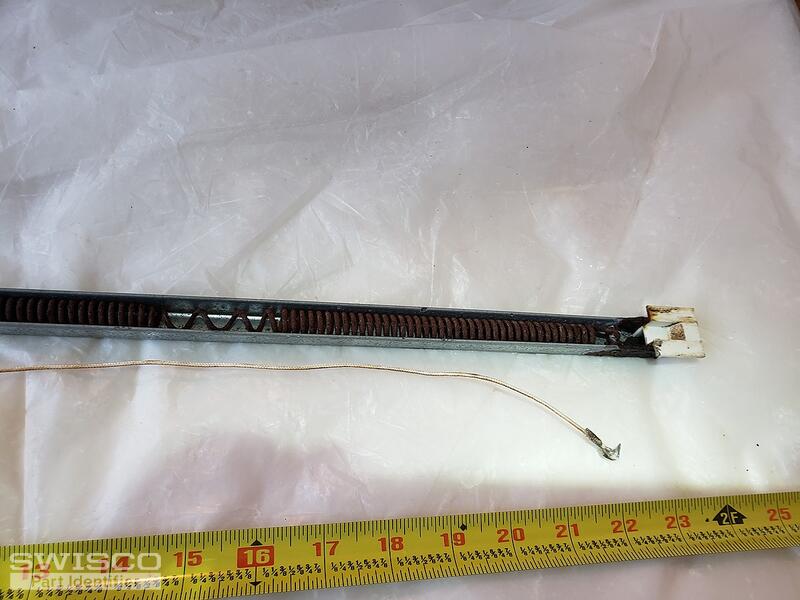

Thumbnail of the uploaded file named channel balance 2.jpg

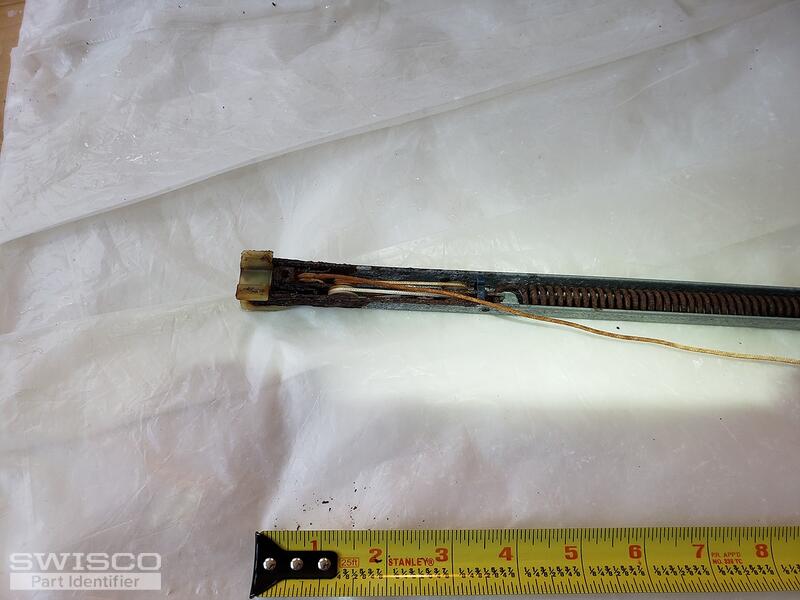

Thumbnail of the uploaded file named channel balance 3.jpg
Thumbnail of the uploaded file named channel balance 4.jpg
Profile picture of Bob
Bob from SWISCO responded:

I believe these are balances that use the 19-041 Top Fitting as well as the 15-004 1-3/32" deep Bottom Shoe. Please compare to confirm. If so, none of our standard balances have this attachment combo but we can provide them to you via custom order. I just shot you an email with a purchase link enclosed to order six(6) as requested. Let me know if you have any other questions, or if the fittings don't match, prior to placing your order.

A handy person from Minnesota says:
I don't have one physically with me here, but I will be in Florida next week to look, and place an order then.
If you can give me any more details to identify which fittings I have, please do. Just what is 1-3/32" ?
Profile picture of Bob
Bob from SWISCO responded:

The 1-3/32" measurement is the depth. You can see what I mean in the diagram below. If this depth measurement is at all different on yours, please let us know and we can find something closer.

Alternate view of 15-004
Alternate view of 15-004

A handy person from Minnesota says:
Once I can pull one out af a window, I can send closeup pics of the caps if it's unclear.

Thanks
