Need Crank Handle

Question

Hello! Looking for a crank for a 2008 Weather Shield window. Colors an available ??
Hard to explain the color... Is that something I could possibly get from you? Thank you!

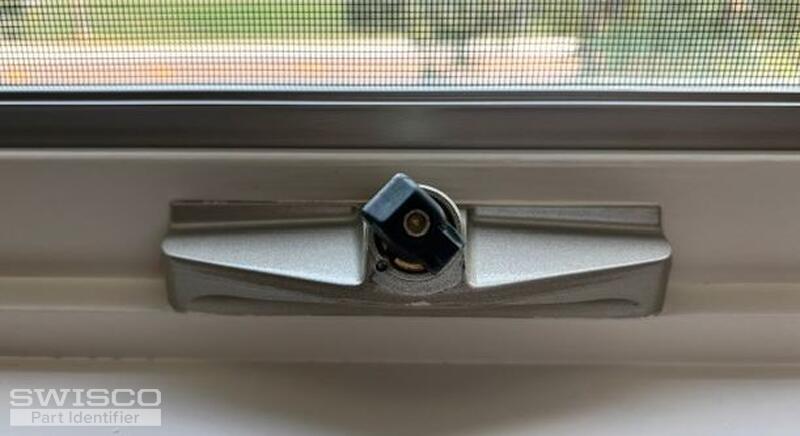

Not sure if this picture is helpful at all regarding a new handle. I should mention that the whole structure is 5" long, with the crank being about 4 1/2" long. Hopefully, this is will help.

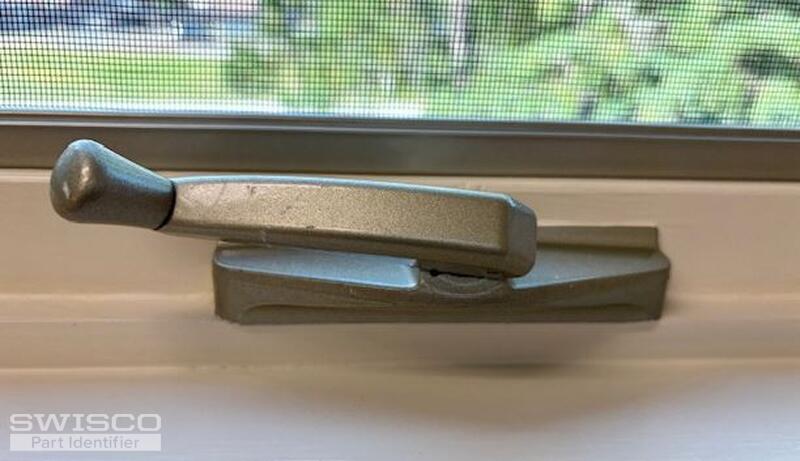

Here are some pictures that I hope will help. It was kind of hard to measure, but I got about 3" measuring where the crank curves up and about 3 1/4" where it curves under. The base is 5" long, and where you attach the crank, it's about 14/16th". I'm so bad at this! I'll also check out the link you sent me. Thank you for your trouble!

Bob · Accepted Answer

Thanks for posting. This looks like an operator that has a 11/32" diameter spline that the handle fits onto. That black piece still attached to the operator is actually part of the old handle. Try removing it and measuring the spline diameter to be safe. If it's indeed 11/32", then something like our 39-205 Crank Handle will work as a substitute. Let me know what you think.
