Need Handle

Question

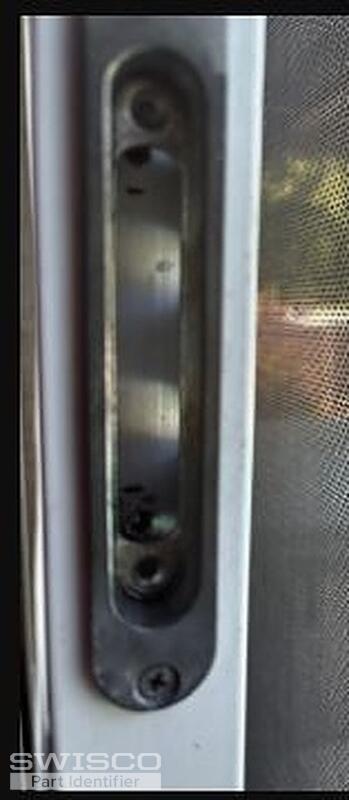

My sliding door lock is broken and I would like to order a complete door lock replacement. Please find attached the photos.
Also, need a Lock.

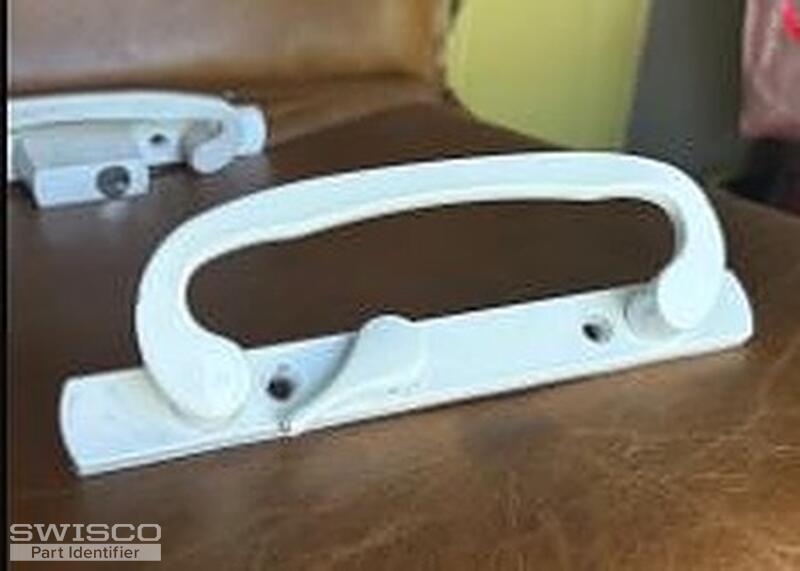

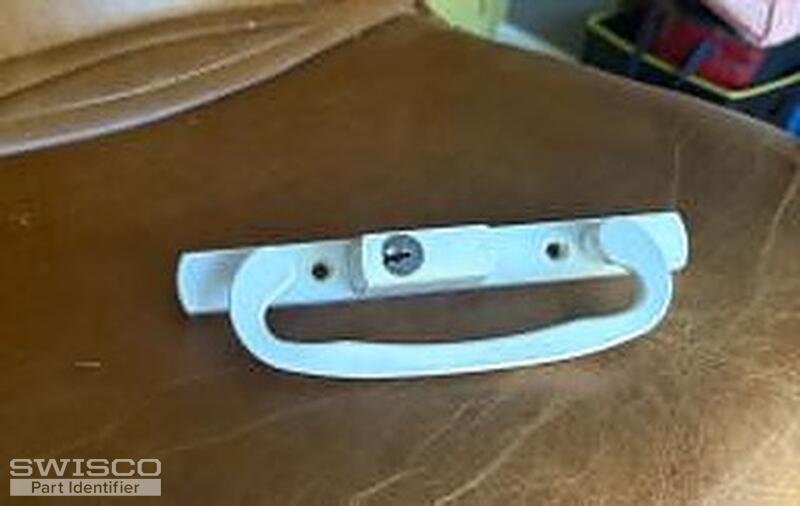

Thank you for your response and sending the pictures with the measurements. The middle picture have exactly the same measurements with the equivalent part that I have. However the door handle with the key holder(the last picture in the bottom) doesn’t have the same measurements between the nuts. Yours is 3 15/16” and mine is 4 15/16”.
The question is does this matter because every thing looks so much alike? If it is not a problem then I will order the ones you sent me. Awaiting your response. Thanks

Find attached two pictures of measurements, one from top of the circle/ hole and the other middle of circle/hole both starting from 1.

Bob · Accepted Answer

Hello there. Based on your photos, I think most likely the center-to-center hole spacing of the handle set actually is 3-15/16" and you can use the 82-086. Please confirm.

Dimensions for 82-086

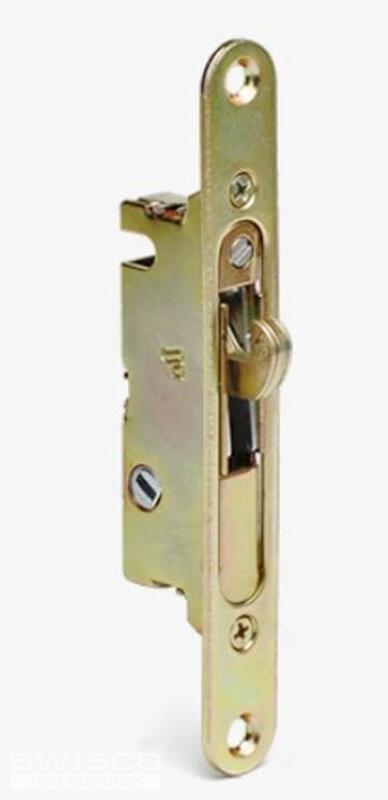

I'm a little confused as far as the mortise lock goes--as you are showing two different ones. See the 82-229 and 82-227.

Alternate image for 82-227

Alternate image for 82-229

Alternate view of 82-229
