Need Harcar window replacement parts

Question

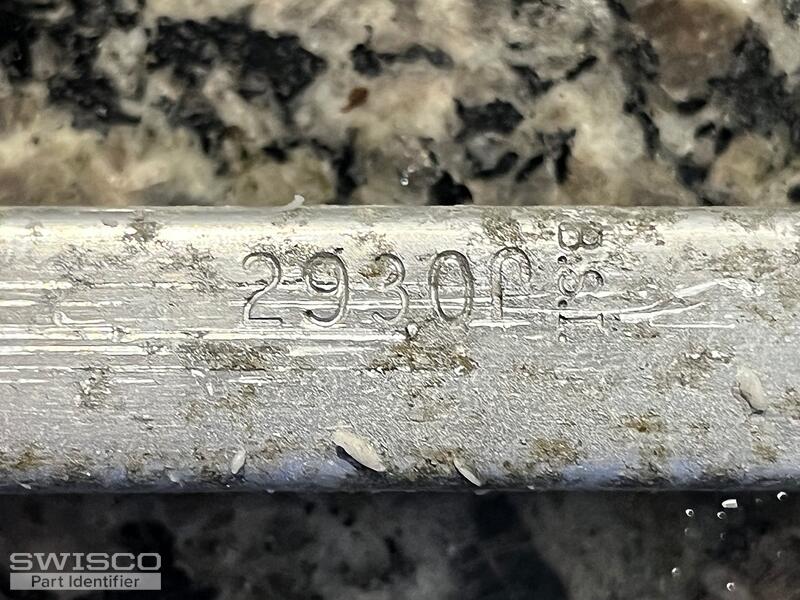

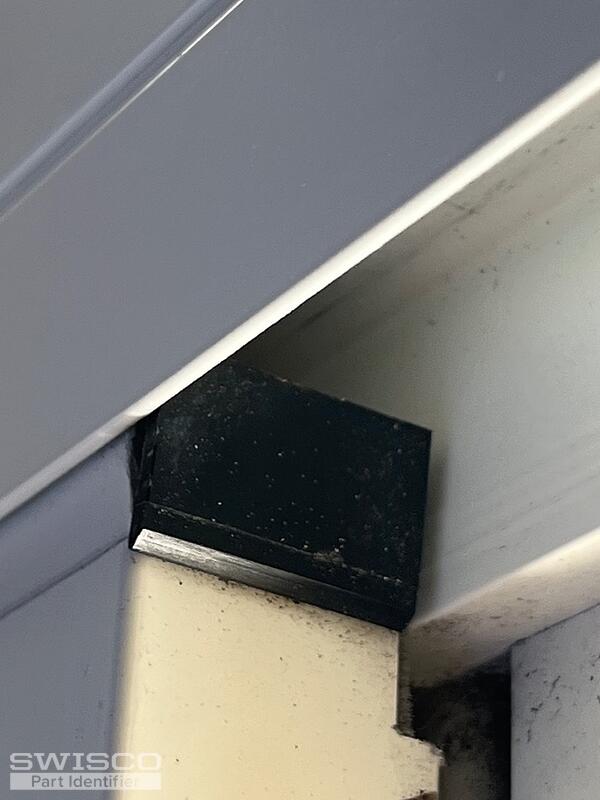

Looking for 4 channel balances and stoppers for some old Harcar non tilt windows.  Channel balance length is 30" (metal only), width is half inch.  Picture 3945 shows stamp number on the metal.  Also need the black stopper parts ... all of those became brittle and broke.  Can you help?

Bob · Accepted Answer

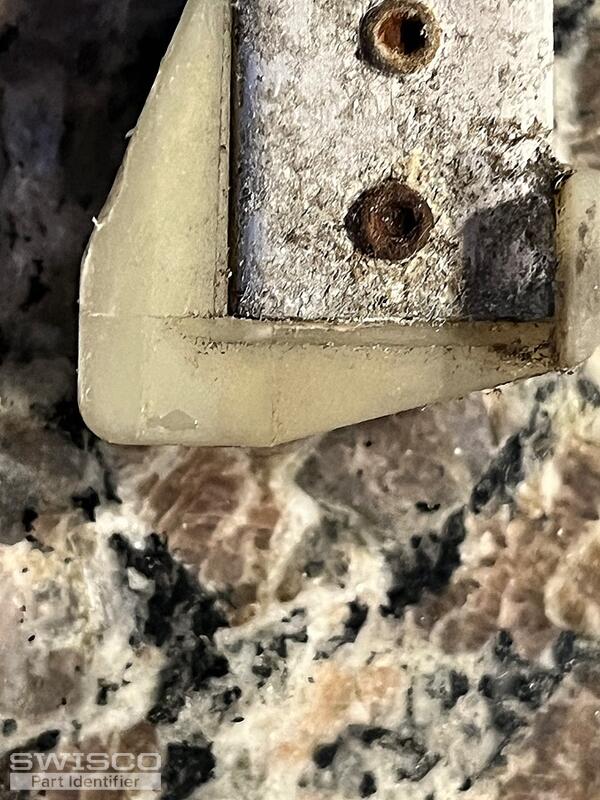

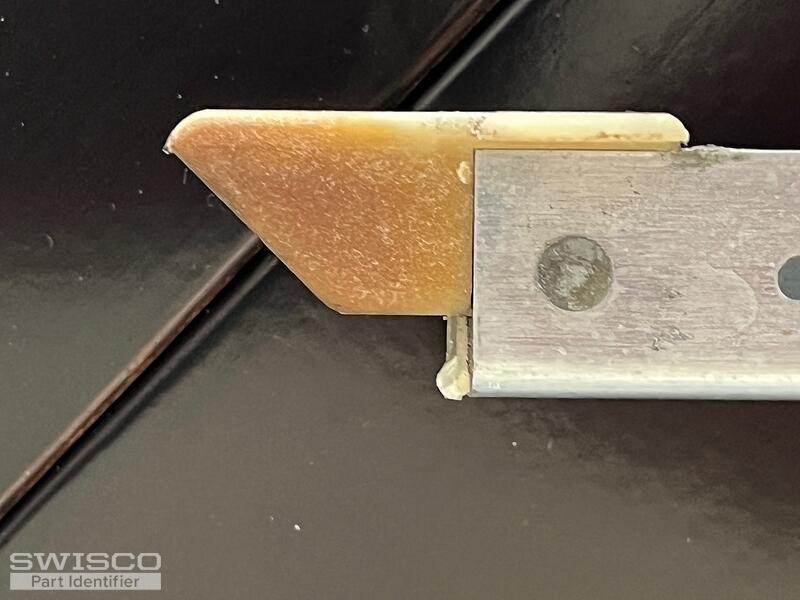

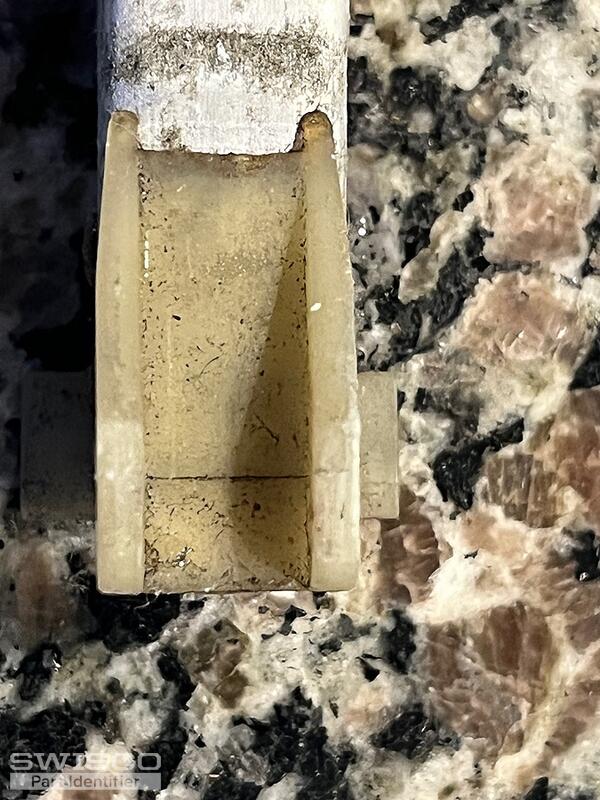

Thanks for writing in. It looks like the nylon attachments on both ends each possess 'wings', or side tabs. Is that correct? If so, see either our S380-30 or S385-30 Channel Balance. The only difference between these two balances is the 'depth' of the bottom nylon shoe, or the 'heel-to-toe' measurement. See the diagram below for reference. Compare both with your old hardware to see what matches best. In either case, for a stamp option choose 2930.

Comparison of the S378, S380 and S385 balance shoes.

For the Top Sash Guides, please remove an undamaged one and show us pictures of the front and side. That should narrow down your options!

Comparison of the S378, S380 and S385 balance shoes.

For the Top Sash Guides, please remove an undamaged one and show us pictures of the front and side. That should narrow down your options!
