Need Help Identifying - 14 5 KU CMC 7

Quick Learner from Los Angeles

Mar 14, 2023 11:46 pm

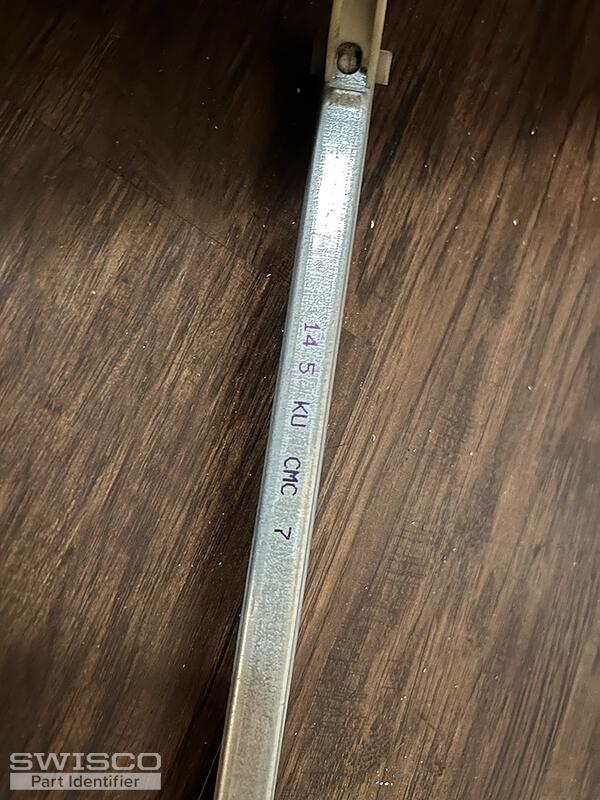

Need Help Identifying - 14 5 KU CMC 7

The measurement of the channel is 15 inches.

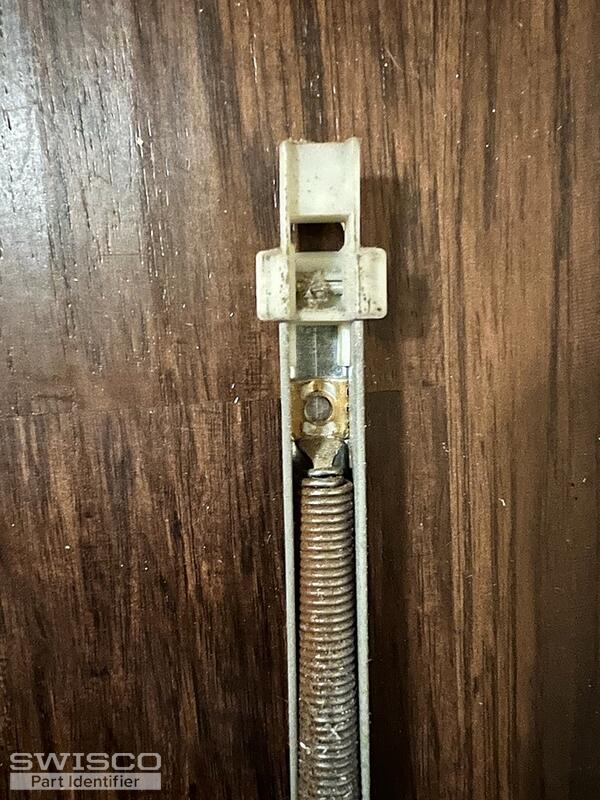

Please see photos. Thanks in advance!

5 user uploaded images

3 Replies

+ Add a Comment

Lauren

Lauren from SWISCO

Mar 15, 2023 11:57 am

SWISCO

EXPERT

Hello, thank you for posting,

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You will need a 15" balance with a 1450 stamp option.

Please review and let us know if you have any additional questions!

Comparison of the S380 and S385 balance shoes.

Comparison of the S380 and S385 balance shoes.

Quick Learner from Los Angeles

Mar 17, 2023 12:19 pm

Thanks! Just ordered the S380 on Swisco.

Lauren

Lauren from SWISCO

Mar 17, 2023 12:55 pm

SWISCO

EXPERT

No problem! Please let us know if you have any future hardware questions.
