Need Help with 32-4 IX CMC 7

Quick Learner from San Jose, California

Sep 12, 2023 12:24 am

Hello I need to purchase some replacement parts "32-4 IX CMC 7". Could you please help to identify which item I should get?

Thanks!

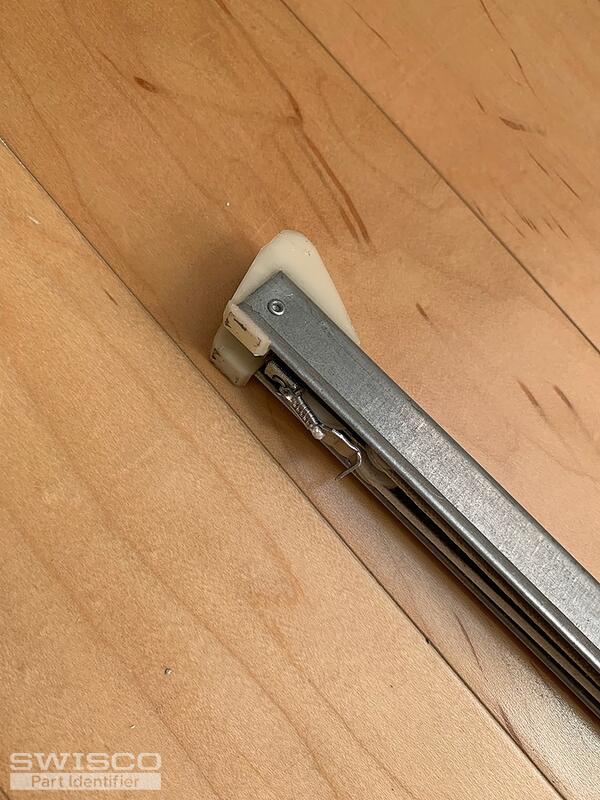

1 user uploaded image

4 Replies

Lauren from SWISCO

Sep 12, 2023 10:07 am

Hello, thank you for posting,

To further review, we will need to see the top attachment of the channel balance. From there we can determine the Series you have. Thank you!

Quick Learner from San Jose, California

Sep 24, 2023 5:08 pm

Hi Lauren,

Here are some more photos, please help to check. Thank you!

3 user uploaded images

Lauren from SWISCO

Sep 25, 2023 7:51 am

Thank you for the additional pictures,

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

The length of the metal channel excluding the nylon attachments should measure 33" long and you will need a 3240 stamp option. Please review and let me know if you have any additional questions!

Comparison of the S378, S380 and S385 balance shoes.
