Need Help with Channel Balance

Handy Person
Hello,

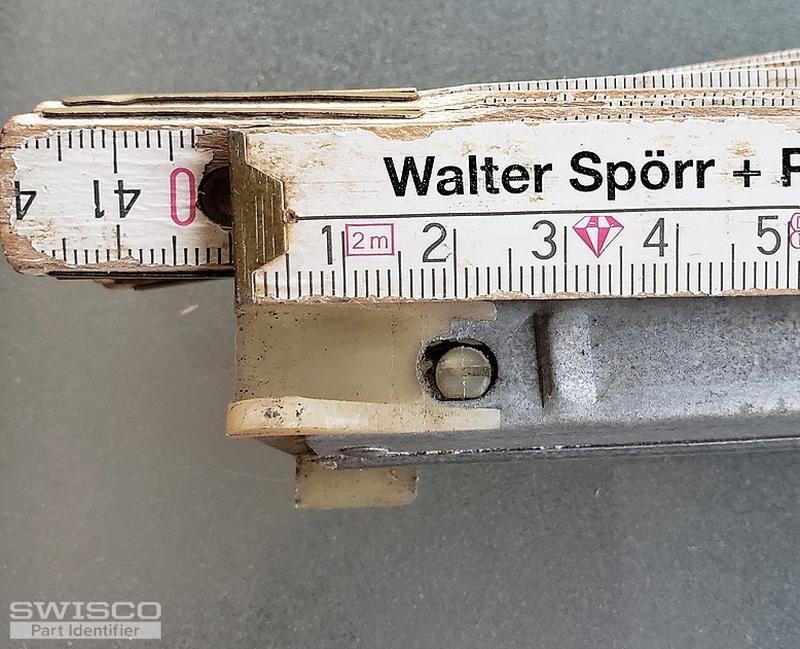

I m looking for a new window lift
Can you please help to identify?
Thanks a lot
Mario
5 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

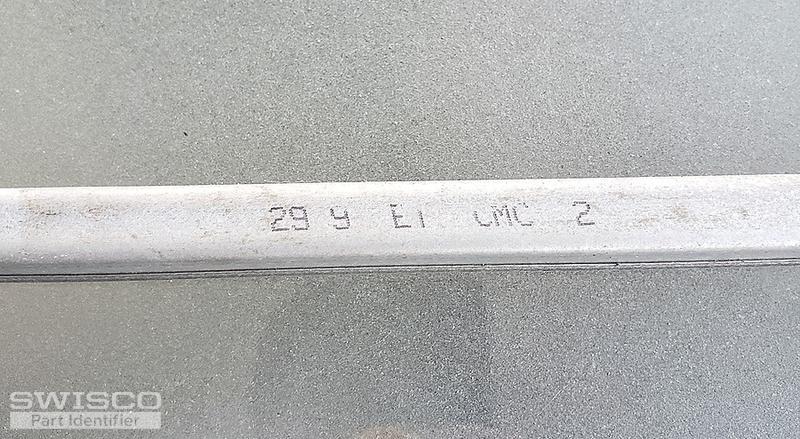

Hi Mario. This looks like either an S380-30 or S385-30. The only difference between these two balances is the 'depth' of the bottom nylon shoe, so compare both with your old hardware to see what matches best. Your stamp code of 29-9 is from an older rating system we do not use. To know what stamp option to pick, obtain the exact weight of your window sash. You can then match that exact weight with one of the weight ranges listed alongside each stamp option on the product page.

Reply to Thread
