Need Lock and Handle for glass patio door SD-R50-1816x2019

Start a new Discussion

Home Owner from New York

Mar 11, 2021 8:01 am

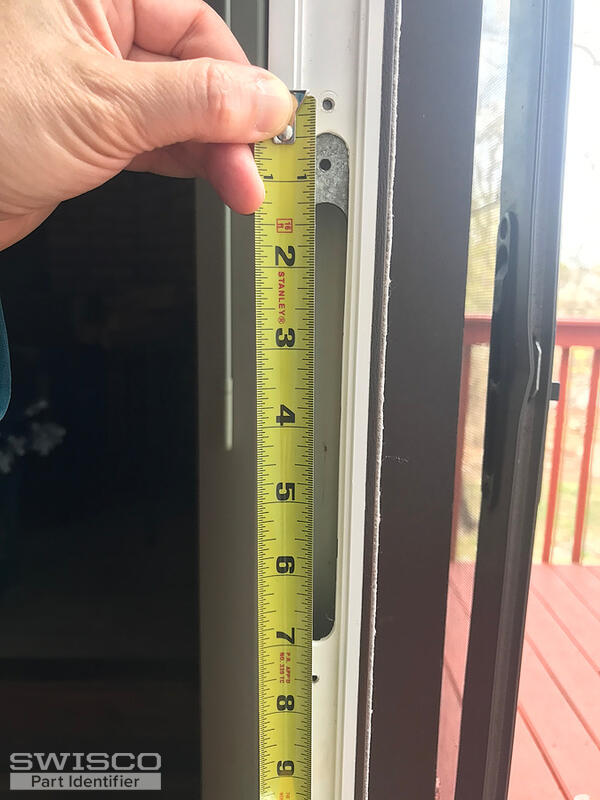

I no longer have the lock and handle that were in the spot, but I measured 8 inches between the holes on the left photo

2 user uploaded images

4 Replies

Tom from SWISCO

Mar 12, 2021 10:53 am

I won't be able to make a confirmed recommendation without seeing the original parts, but with the information provided I may be able to offer you a couple educated guesses. Before I do that, though, can you also show me the hole spacing where the handle went and give me the exact distance between the two outer most installation holes, center-to-center?

Home Owner from New York

Apr 10, 2021 2:11 pm

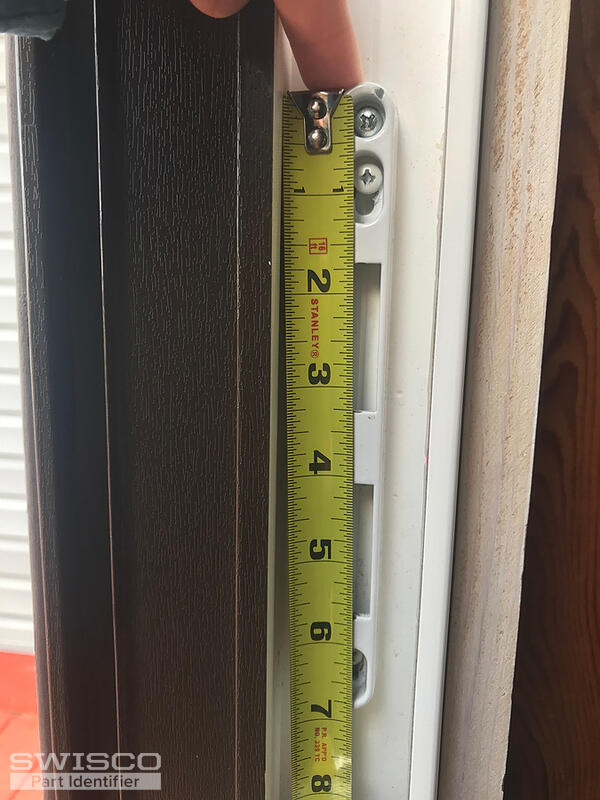

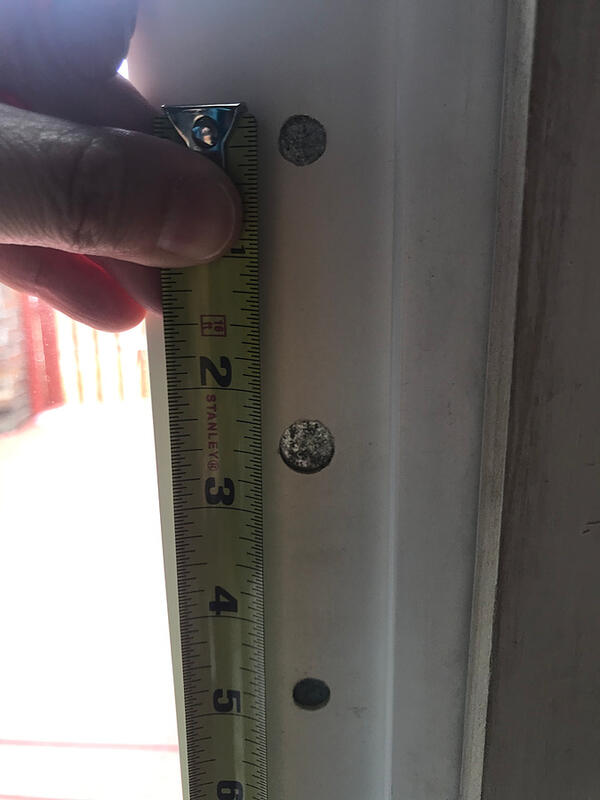

Thank you so much, Tom! Sorry it took me a little while to respond. Here is the photo of the other side. I appreciate your assistance.

4 user uploaded images

Dave Sr. from SWISCO

Apr 14, 2021 1:01 pm

I believe your handle set would be the 82-080. As for the mortise, take a look at the 82-238.

Take note that I can see from your photos that the internal "steel stiffener" has dropped down. You can see what I mean in your third photo here. You will need to raise it back up to install the new mortise lock and handle. Otherwise they won't fit.

Also note that your lock and handle use the 89-030 keeper. I'm not sure if your old one is compatible. The 82-238 mortise lock has an "anti-slam" button that must be engaged for the lock to work, which the 89-030 keeper is specifically suited to accommodate. You need to make sure the slam button hits your existing keeper in the correct location to operate.
