Need New Channel Balance

Start a new Discussion

Home Owner from St Augustine

Oct 24, 2021 5:49 pm

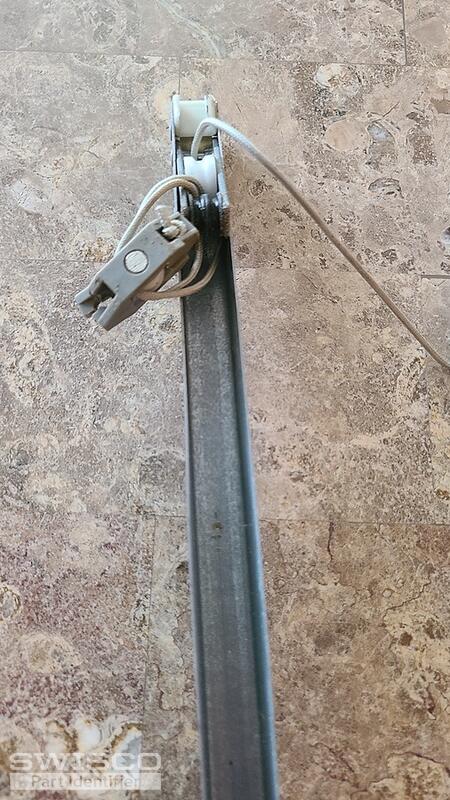

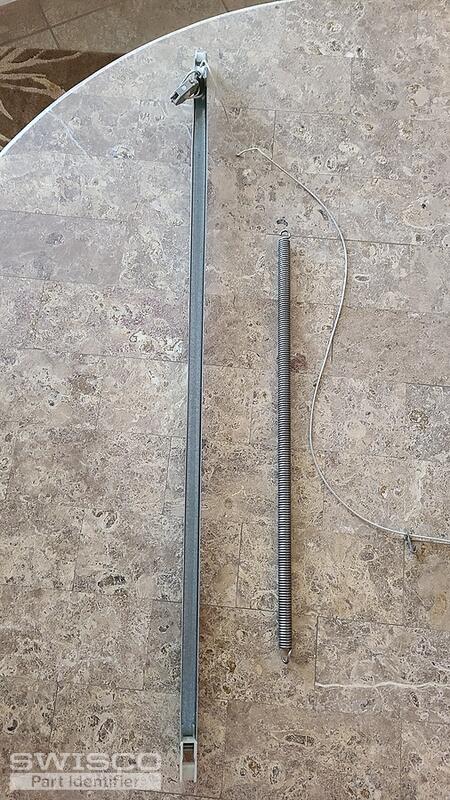

Need channel guide for Jordan window

2 user uploaded images

4 Replies

Casey from SWISCO

Oct 28, 2021 2:05 pm

Hello,

It looks like you have either our S351, with a 15-002 bottom attachment, or S390, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You'll also need to locate the stamp code on the metal channel to choose the corresponding strength option for your balances. Thank you!

Comparison of the S351 and S390 balance shoes.

Home Owner from St Augustine

Oct 28, 2021 6:32 pm

Believe unit needed is 15-002 S 351, 1 inch. Following is stamped: 27 5, BSI RD.

Please advise is more is needed.
Thank you.

Casey from SWISCO

Oct 29, 2021 8:24 am

Great, it sounds like you'll need the S351-28 channel balance with a 2750 strength option. Please let us know if you need anything else.
