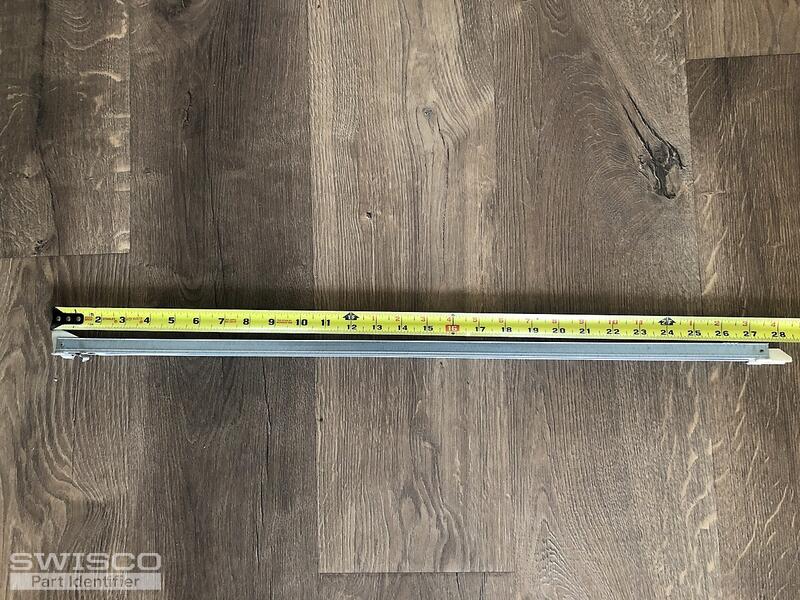

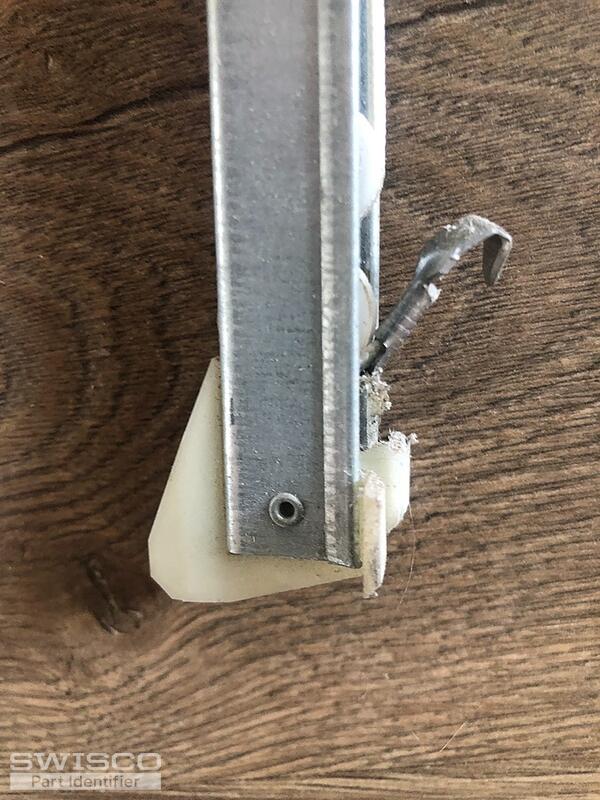

I am looking for replacement channel balances for my Milgard windows. I've attached photos of the original balances. Here is the text stamped on the inside of my window:
May 17, 2002 - MM-CH 031168 004.
The window panes these balances connect to are 29" tall x 33-3/4" wide.
Could you please advise me as to what I would need to order a replacement?
Thanks!
Brian
Need New Channel Balance
Home Owner from Marion, Iowa
May 25, 2023 11:00 am
5 user uploaded images
2 Replies
Jasmine from SWISCO
May 26, 2023 3:13 pm
Your channel balances could be either the S380-27 with a 1" shoe or the S385-27 with a 1-3/32" shoe. To determine which series is needed for your window, look over the dimensions from the diagram below to confirm the depth of your bottom shoe. Let me know if it does not match either measurement.
You'll need to select the 2640 stamp for a 19 to 26lb window. Thanks for writing in!
Comparison of the S380 and S385 balance shoes.
