Need Operator

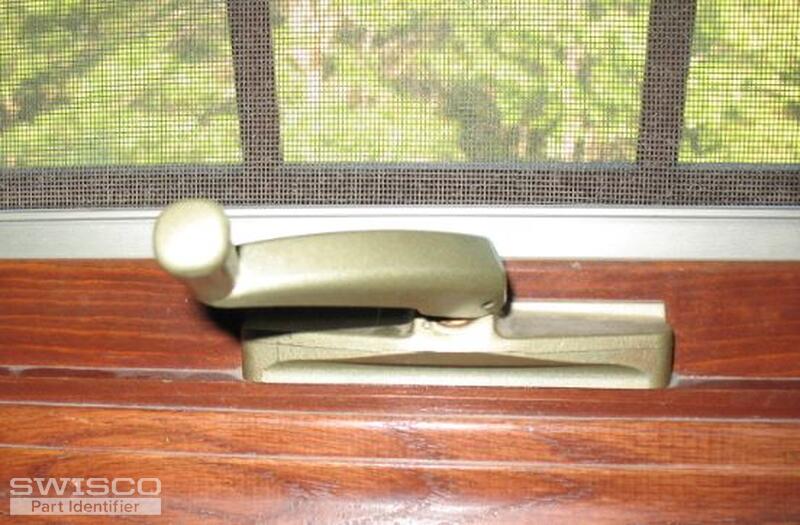

Sorry for the delay. I don't know if you have just the parts I took photos of. I don't need the whole operator. I've attached photos of the parts, and I don't really think I need the handle, but it's in the first photo. Also, I've included the PDF from weather Shield; pages 1 for the exploded view, and page 8, 16a, for the handle.

My window is wood on the interior and aluminum clad on the exterior. Overall jam width is 32; jamb height is 24; overall R/O width is 33; R/O height is 25 1/4 .

Thank you in advance for any help you can provide.

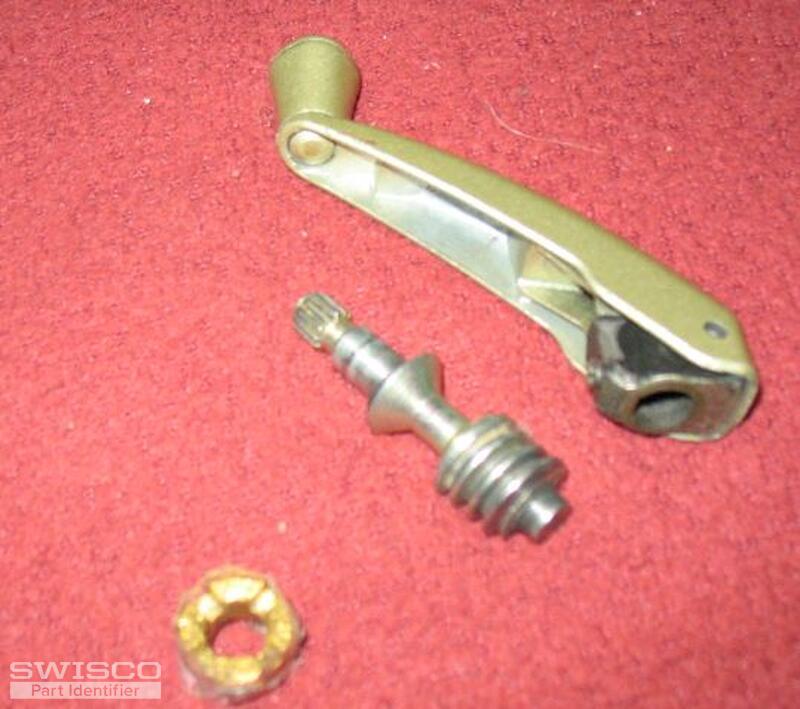

I'll send a photo in the next day or two. I was afraid I'd have to get the entire operator. It's too bad because only two small parts need replacing.

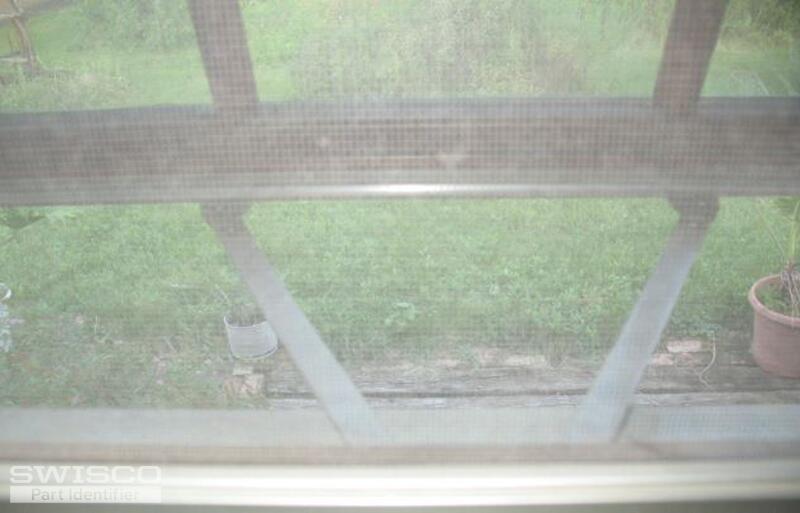

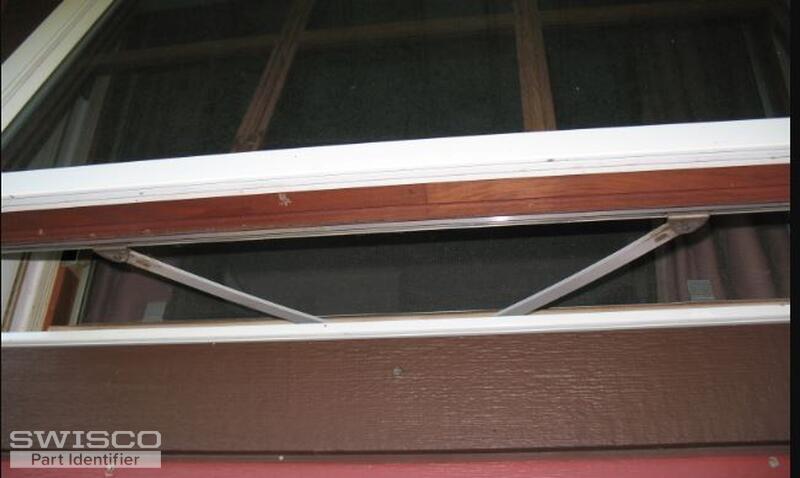

Sorry for the delay. The photos I took are from our other bathroom window which is the exact same thing as the damaged window. The damaged window requires a tall ladder to get to it, so I took photos from the undamaged window for comparison purposes.

I look forward to your response.
