Need Part Circled

A contractor from Texas says:
The item that is circled is the part I am trying to identify. TRUTH is the manufacturer but I am unable to locate the correct hole pattern. I believe it is the "Maxim operators" series. Any help help is greatly appreciated.

Best Regards

Mike
Thumbnail of the uploaded file named 92A24F7D-3767-4051-BA26-1045C4F8CFC0.jpeg
Thumbnail of the uploaded file named BC498969-5C2E-4128-A4A1-66B75DD97416.jpeg
Thumbnail of the uploaded file named 47466B8D-2E15-4F4C-A6EB-2CF6990A13AC.jpeg

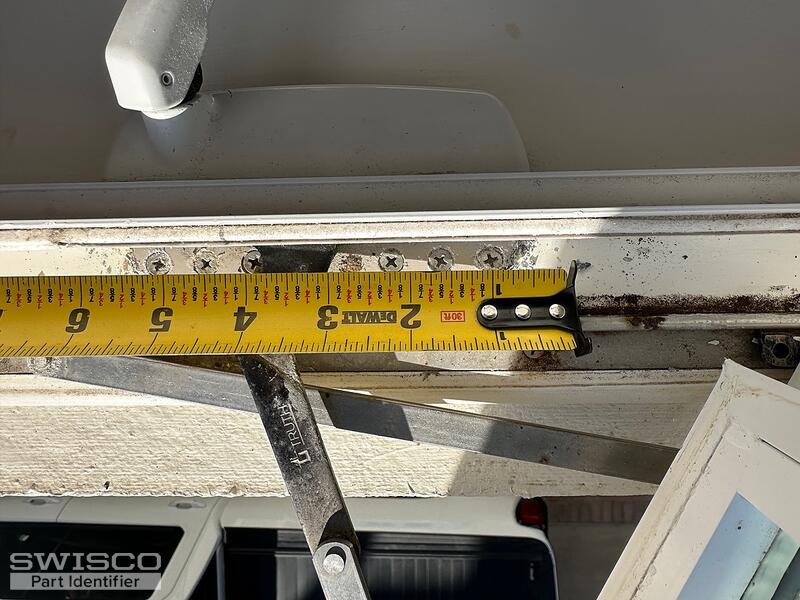

Thumbnail of the uploaded file named 72AF78BC-0A55-4BFE-8064-26A868EB076A.jpeg

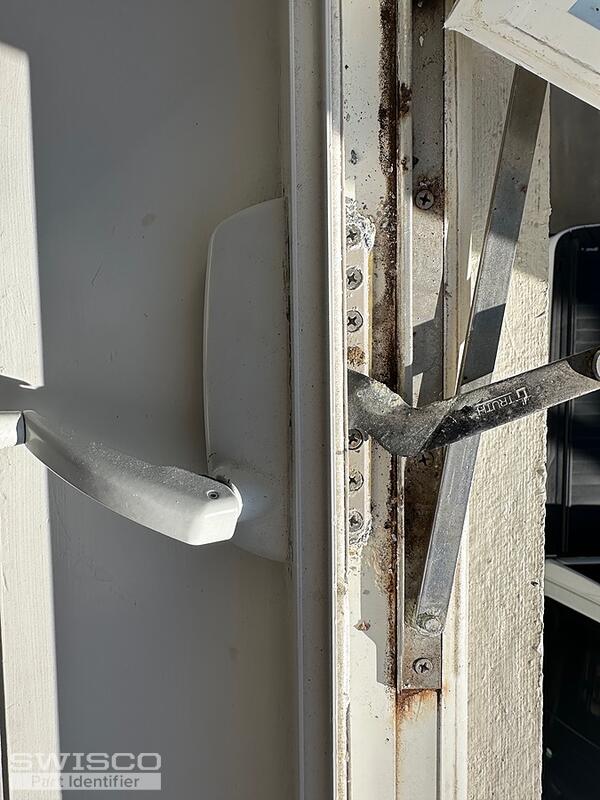

Thumbnail of the uploaded file named 2EFEB7DB-5949-4A89-A8A6-140D03A481B7.jpeg
Profile picture of Emily
Emily from SWISCO responded:

Thank you for reaching out to us, Mike. It looks like you have our 39-221B operator. We also sell the 39-451 cover and handle if you needed that as well. Look over the specifications and see what you think.

A contractor from Texas says:
Hello, the part I ordered varies a little in the length. The stainless steel part that is broken is 5-1/2" long vrs. the new part is 4-7/8". Is there another part from TRUTH that will accommodate this?

Thank you for your help

Mike

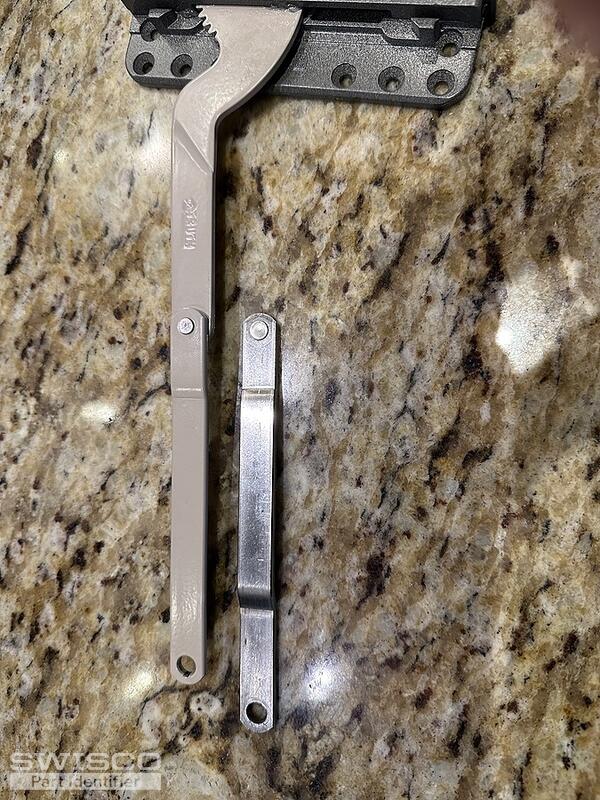

Thumbnail of the uploaded file named D051A4E5-2EEB-4B89-8F98-EF23EB749AD4.jpeg
Profile picture of Emily
Emily from SWISCO responded:

I'm afraid we don't sell an operator with these exact specifications. However, we do have a suggestion. You can drill out the arms for both operators and install the old link arm on the new operator. You'll need the 62-014 rivet to do so. What you want to do is place the elbow of the link arm on a metal plate and hammer the 62-014 rivet until the skinny end mushrooms out and locks it in place.
