Need Pivot Shoe

Home Owner from United States

Mar 2, 2026 8:40 am

Hi,

Hope you can help me select the correct Pivot Shoe for my older Vinyl Windows (30+ years old).

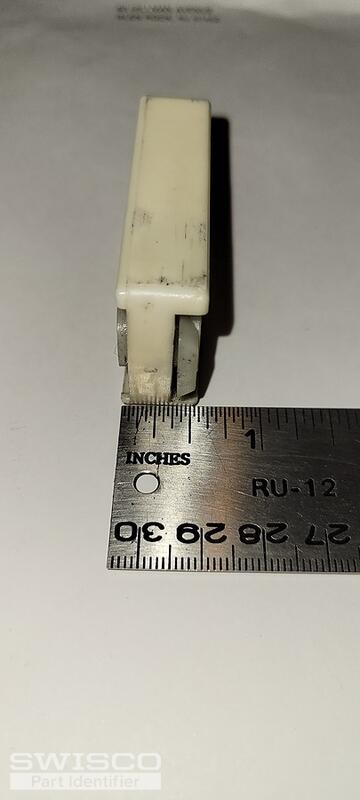

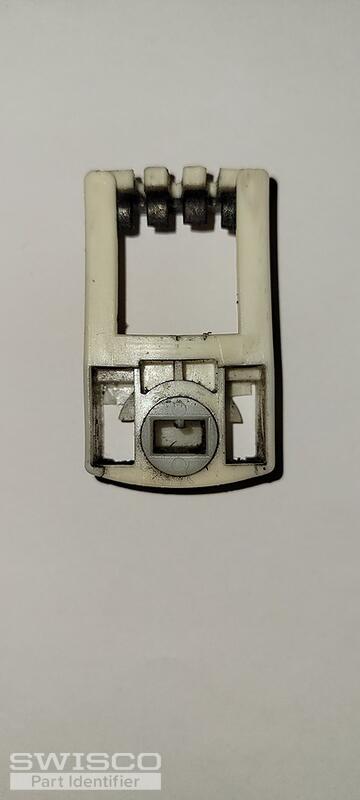

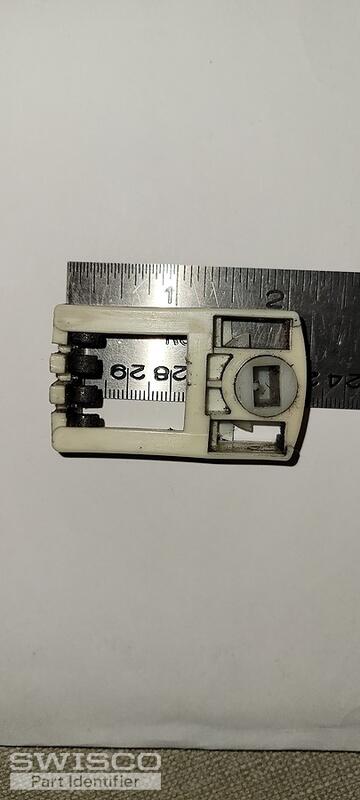

Attached are photos of the current Pivot Shoe. I believe it's 5/8" thick x 1 1/4" width x 2" Height at corners (Note: Height at center is 2 1/8")

Looking forward to your guidance.

Thank you,

5 user uploaded images

3 Replies

Home Owner from United States

Mar 2, 2026 8:47 am

Additionally, does SWISCO have the White Tip 29" Series 600 Spiral Balance?
Can't find it on your website.

Thank you.

1 user uploaded image

Paul from SWISCO

Mar 5, 2026 11:55 am

Thanks for reaching out to us. The manufacturer of your pivot shoe is no longer in business. The exact thickness of your pivot shoe is 9/16", so you should use the15-118. Regarding the S600-29 white tip, you can opt for the red tip, as it can accommodate a wider range of sash weights.
