Need Recommendation on Window Handle

Quick Learner from Toronto, Canada

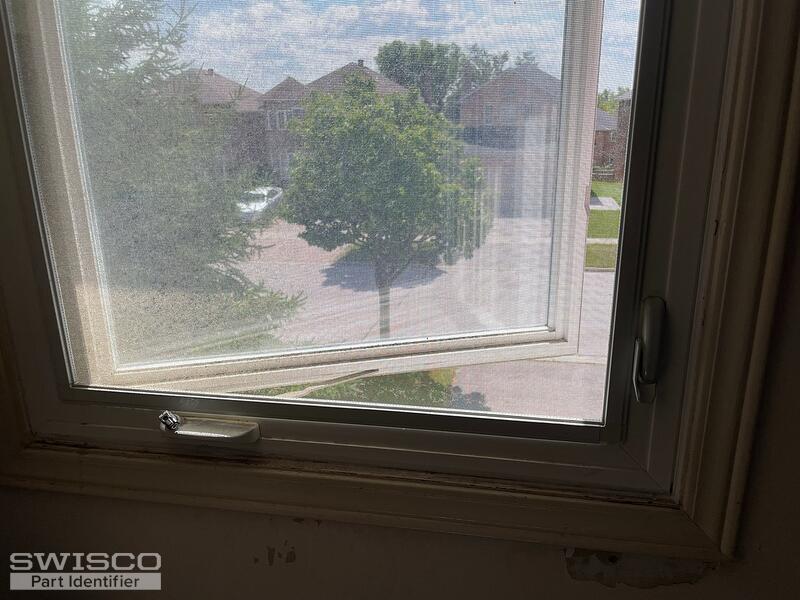

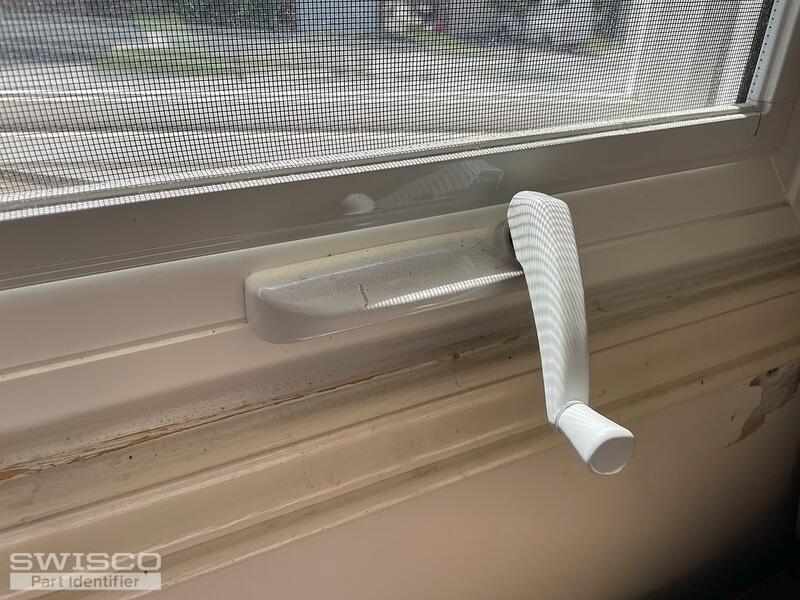

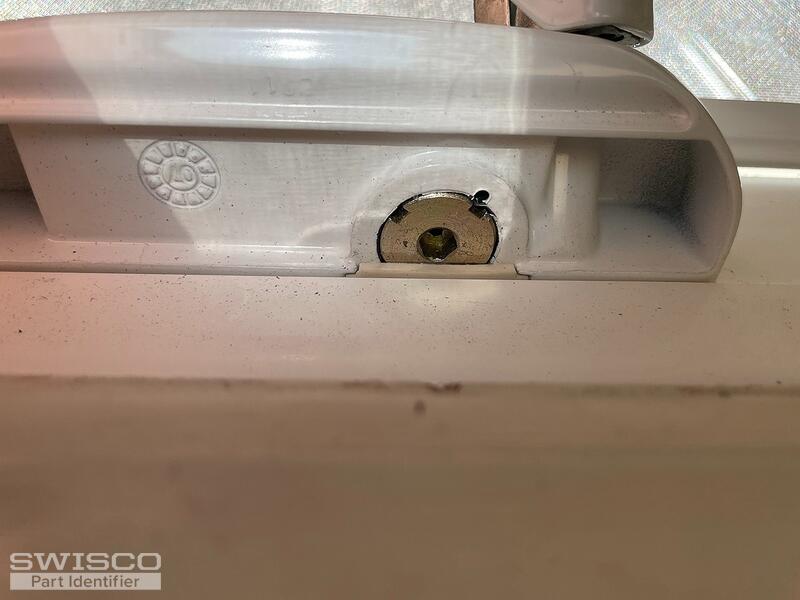

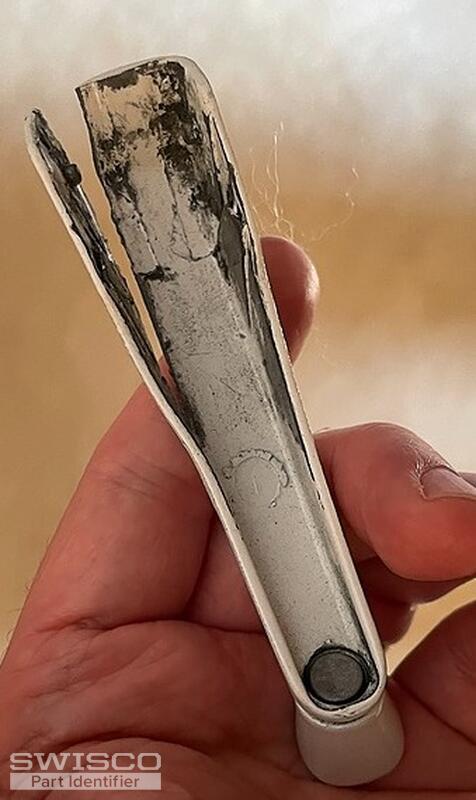

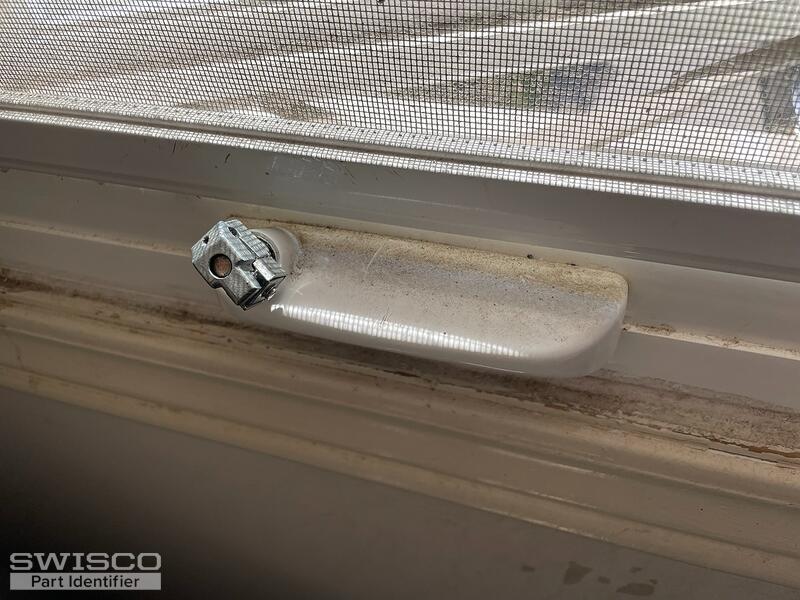

I have a broken window handle that I need to replace. There doesn't seem to be a logo or serial number anywhere on the window. Can you recommend a replacement? See attached photos of the broken handle and another that is intact.
5 user uploaded images
8 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

Is this the same type of operator assembly that you inquired about last year, which our expert Tom recommended our 39-253LB and 39-253RB to replace? If so, then you should be able to use either the 39-114L or 39-205 folding handle as a replacement. Thank you!

Quick Learner from Toronto, Canada
Hi! This is not the same window, so will need a new recommendation. Thanks!
Casey
Casey from SWISCO
SWISCO
Expert

In that case, please show us a clear photo of the operator's arms without the screen in the way, which will help us confirm which handles are compatible with your assembly.

I suspect the two options I mentioned will still work but it's always good to be sure. These handles also work for operators with an 11/32" diameter spline, so you can check that dimension for further confirmation.

Quick Learner from Toronto, Canada
I'm only looking to replace the handle not the entire assembly. What would you need to provide this recommendation? Thanks for the help :).
Casey
Casey from SWISCO
SWISCO
Expert

As I mentioned, the 11/32" handles that we've discussed so far are the top contenders but we would need to see a clear view of the operator arms that attach your operator to the sash to confirm which handles are compatible with your operator assembly.

Quick Learner from Toronto, Canada

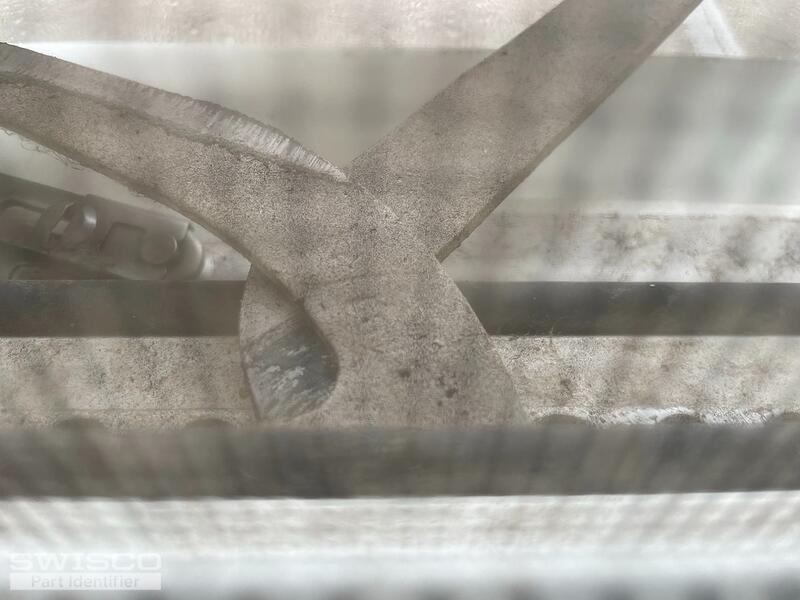

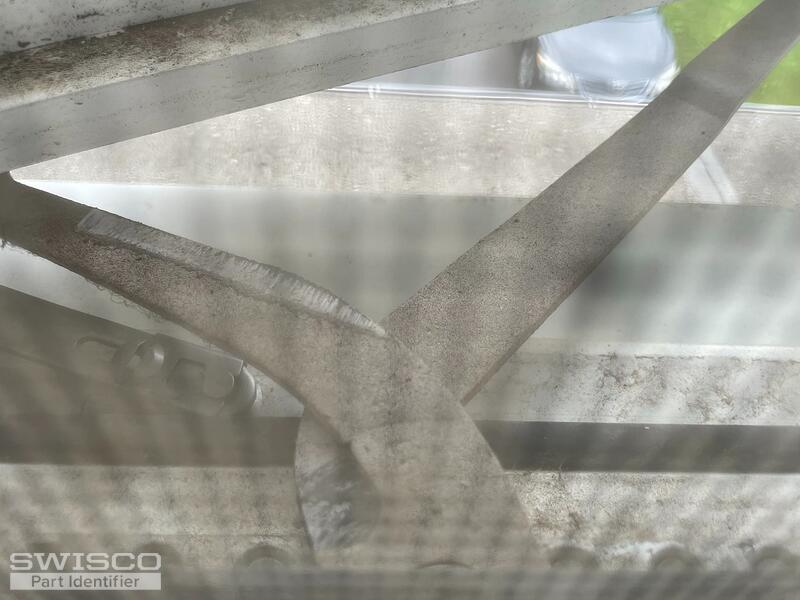

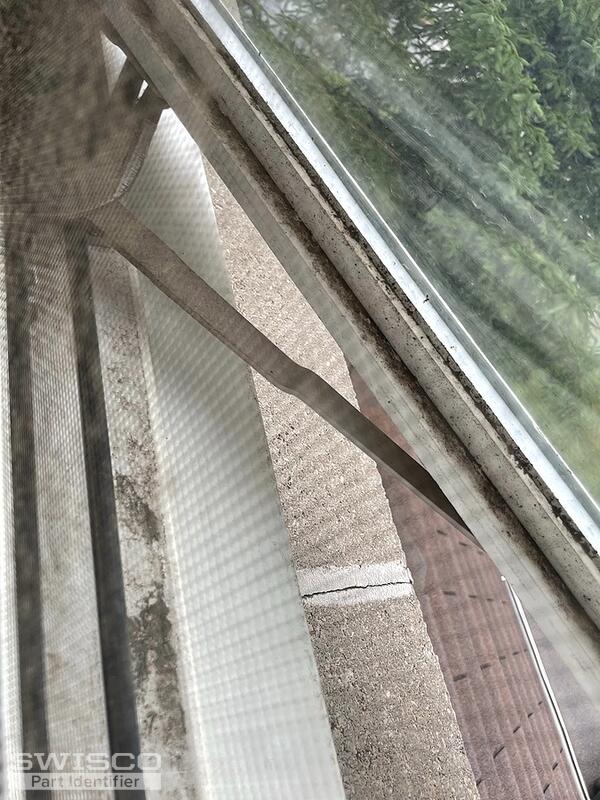

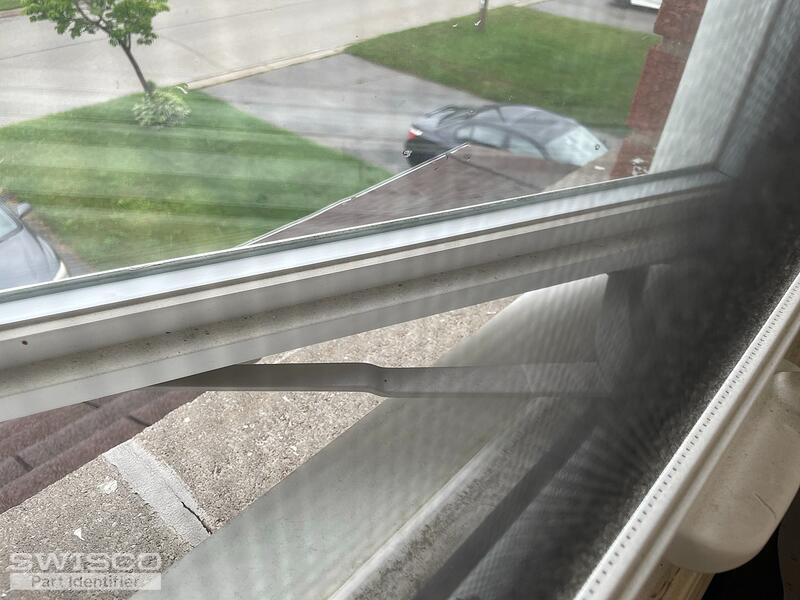

Sounds good, attached are several photos. I left the screen on since the window is in bad shape and I didn't want to break the frame.
4 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Thanks for getting back to us. The determining factor would be the type of attachment at the end of the long arm that attaches to the track but it does look like you have one of the two Encore style operators shown in the video below. Both of these operators would be compatible with the 39-114L or 39-205 folding handle that I mentioned in my original recommendation.
