Stamped on metal: 2910 NK BSI
30" long by 1/2"
Flanged shoe.
Entire assembly plus spring is broken.
Need Replacement Channel Balance
Quick Learner from Miami, FL
Feb 14, 2019 12:46 pm
1 user uploaded image
4 Replies
Bob from SWISCO
Feb 14, 2019 1:13 pm
Thanks for posting. Could you show us the channel balance removed from the window, with pictures of both end attachments? Many thanks.
Quick Learner from Miami, FL
Feb 14, 2019 5:38 pm

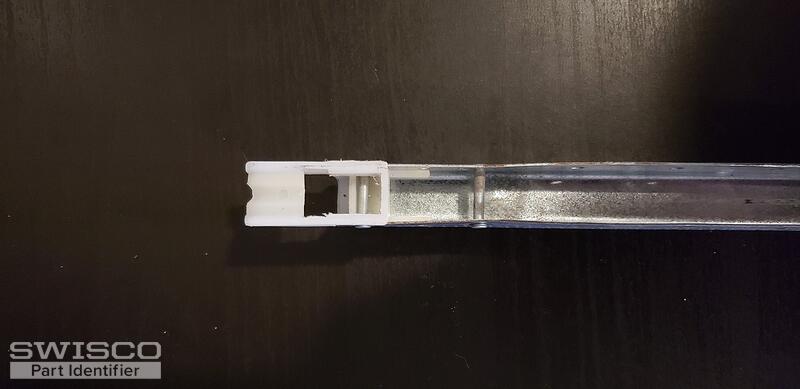

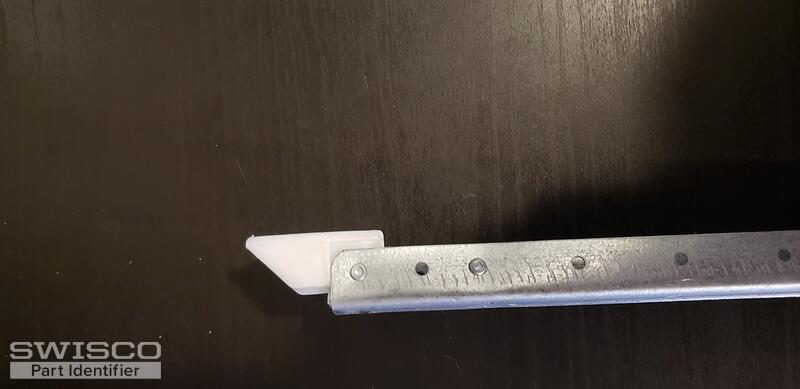

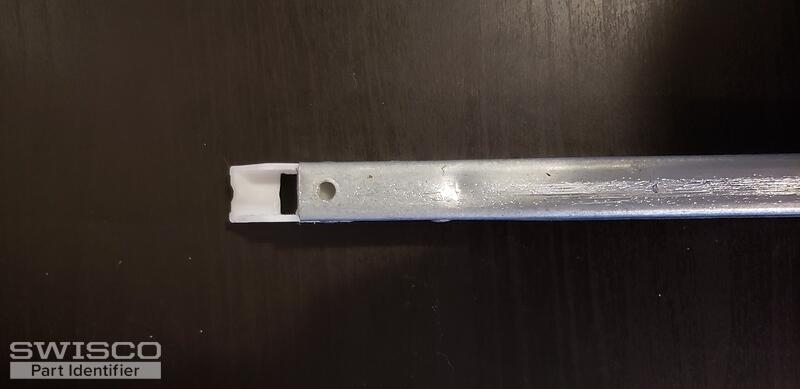

Here they are.
Thanks,
Thanks,
5 user uploaded images
Bob from SWISCO
Feb 15, 2019 9:20 am
OK, Thanks for the extra photos. To be totally safe, you might want to confirm if the other balance in this pair also only has wings on its bottom nylon shoe and not the top nylon attachment; sometimes these wings break off over time, so it's good to be sure. If indeed only the bottom attachment has wings, see our S350-30 Channel Balance. Your stamp option of 2910 is for a window sash in the weight range of 7 through 12 lbs.
