Need Replacement Locking Lever Assembly

A quick learner from Warrenton OR says:

December 18, 2021

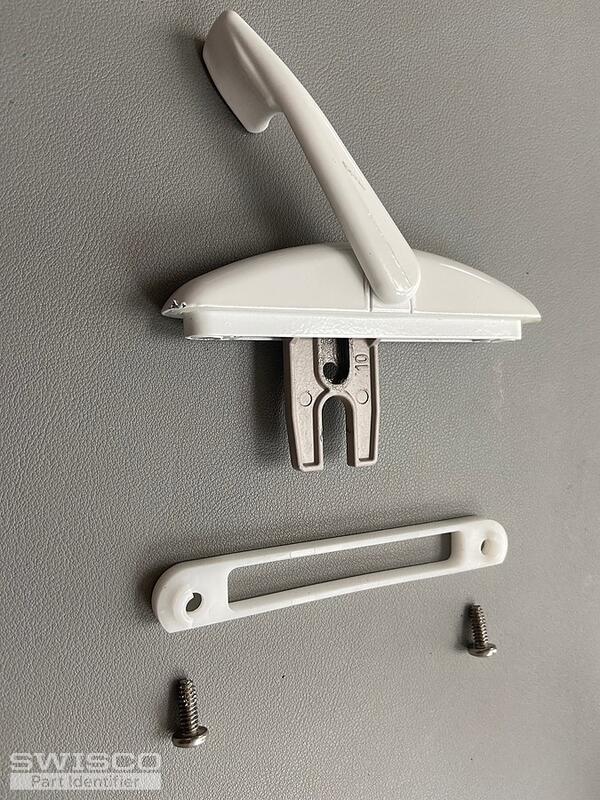

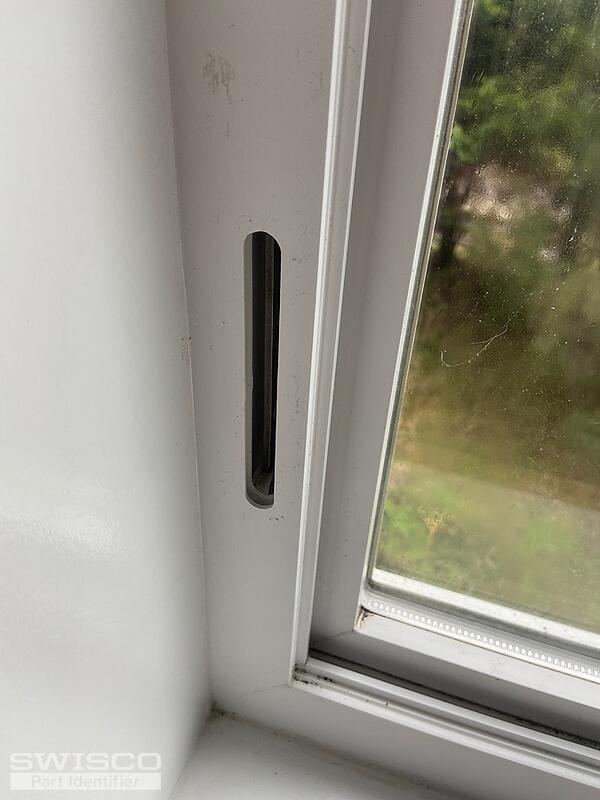

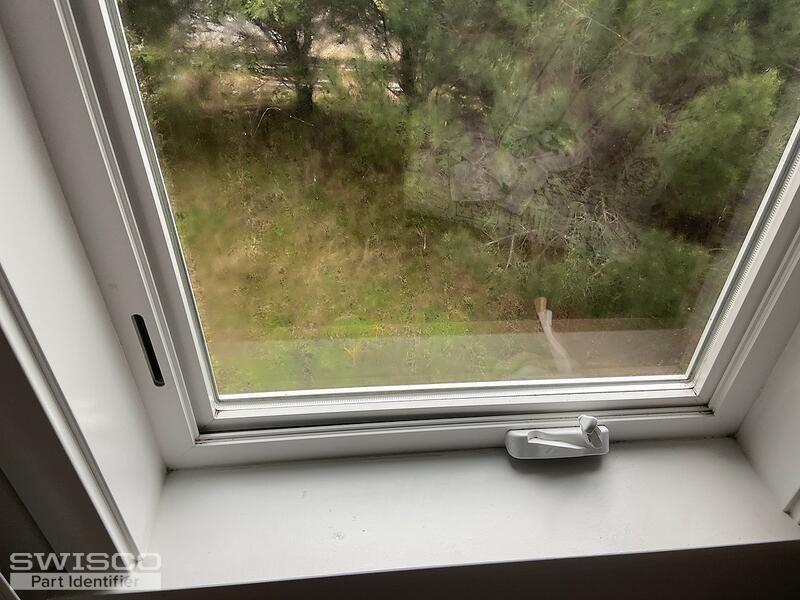

Our locking lever was forced down incorrectly and broke the aluminum weld that moves the locking mechanism vertically. Not sure of our window brand name. We would like to find a replacement locking lever shown in image 6205. It is white and measures just over 4.5 inches long and 0.75 inches wide.

Thanks,
Dwight

Thumbnail of the uploaded file named IMG_6203.jpg

Thumbnail of the uploaded file named IMG_6204.jpg

Thumbnail of the uploaded file named IMG_6205.jpg

Lauren from SWISCO responded:

December 21, 2021

Hi Dwight, thank you for posting!

Please review the dimensions of the 38-095, 38-096, 38-138 and 38-139 Multi-point locks. You will need to compare the projection of the forks and installation holes to determine a good fit! Please let me know if you have any questions.

Maxim Multi-Point Lock, Medium Slider

38-095

$16.97

Maxim Multi-Point Lock, Long Slider

38-096

$16.97

Roto Multi-Point Lock, 29MM Fork

38-138

$25.55

Roto Multi-Point Lock, 37MM Fork

38-139

$24.44
