Need Replacement Pivot Shoes

Quick Learner from Menomonee Falls, WI

Jul 31, 2016 11:31 am

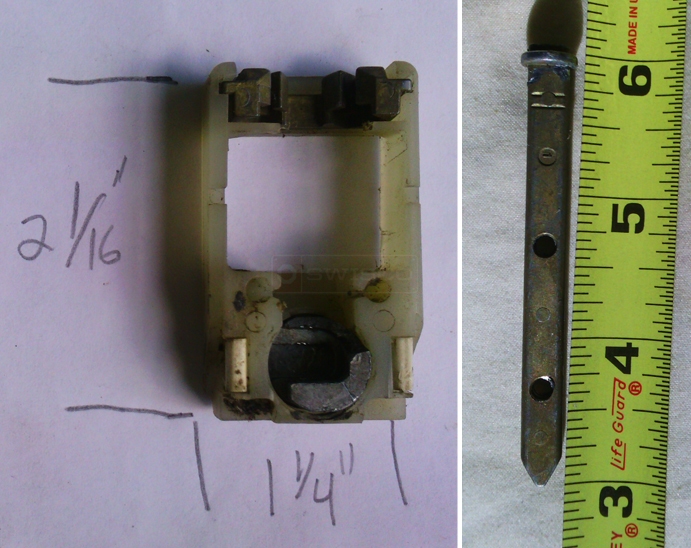

There are no names, numbers or markings on the old part.
Unit measures 2 1/16" x 1 1/4" x 9/16"
I would like to know which product I should order as a replacement?

Thank You,
Chris

User submitted image of their window hardware.

4 Replies

Quick Learner from Menomonee Falls, WI

Jul 31, 2016 6:45 pm

I am including some pictures of the sash pivot bars that are installed on the windows. I believe the direct replacement would be 26-226, please confirm. Thank you.

Paul from SWISCO

Aug 3, 2016 11:45 am

I agree, the 26-226 pivot bar looks like a great choice. As for the pivot shoe, see our 15-188 for a possible match.

Quick Learner from Menomonee Falls, WI

Aug 8, 2016 7:50 pm

Just received the parts I ordered. I actually went with the 15-178 Pivot Lock Shoe because it was listed as 9/16" thick, the same dimension of the part I was replacing. It is a perfect fit. It took no time at all to install the new shoe and the window works great. Thanks for pointing me in the right direction on these replacement parts.
