Need TILT replacements

A quick learner from Dayton, Ohio says:
May 18, 2015
The rod is 24" including the metal part sticking out, 5/8" wide. There is a dark blue piece crammed up inside. The dimensions for the shoe are ABOUT 1" x 2" x 1/2" give or take a 16th. This is a tilt window. Would love to buy replacements from your store ASAP, as this is for a military relocation and needs to be fixed before they come to their new home. Thanks!
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
May 19, 2015
We would need to see some photos of the parts you need to replace so that we can make a good recommendation. We would also like more accurate dimensions. That 1/16" difference you mention could actually be important. Let me know!
A quick learner from Dayton, Ohio says:
May 20, 2015
Thank you! I thought I had a photo attached, but I'll attach a few more. I had someone with better eyes than me look at the measurements of the shoe. It is 15/16" x 9/16" x 2", but the 2" part curves a little.

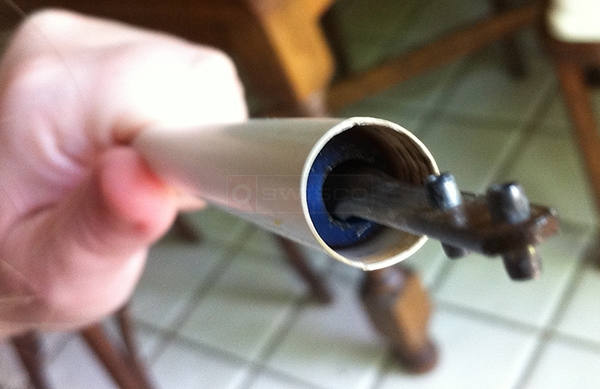

User submitted a photo of a window balance.

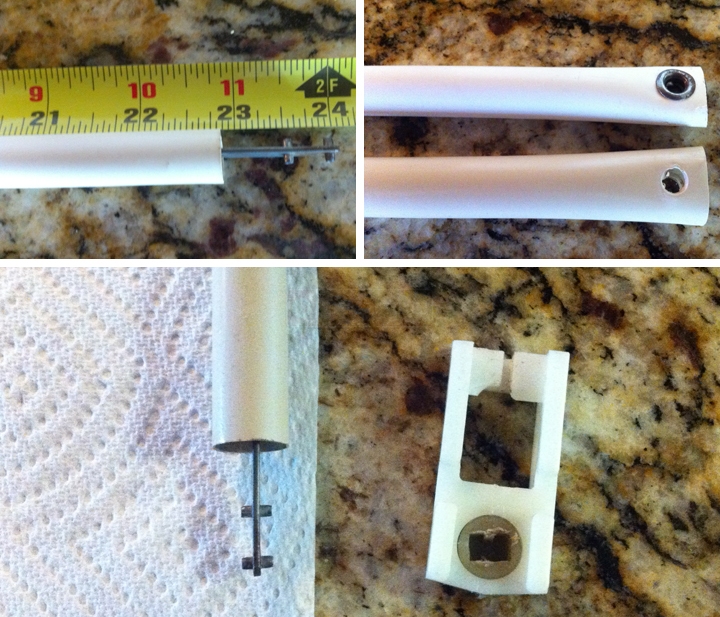

User submitted photos of a window balance.
Profile picture of Paul
Paul from SWISCO responded:
May 21, 2015
Thank you! The balance you show closely resembles our Series 600 spiral balance with a blue tip. Just confirm the length of the tube. It looks to be 23", Please also note that our balance tubes are not white plastic, but metal. We find they hold up better.

As for the pivot shoe, our 15-173 looks close. Let me know if you agree.
A quick learner says:
May 21, 2015
I do agree! I had no idea your website was so easy to search. We ordered those last night in hopes that it was correct - your recommendation makes me feel a lot better about the money that we spent. Thank you so much! I will definitely recommend this site to anyone else needing the info and also will come back for any future parts. Thank you so much for keeping up with amazing customer service in an era where customer service seems dead. Thank you so much!
Profile picture of Paul
Paul from SWISCO responded:
May 21, 2015
Great! I'm so glad we were able to help. If you need anything else in the future, please feel free to ask.
Pivot Shoe, 9/16" Thick
Pivot Shoe, 9/16" Thick
15-173
$2.72
23" Series 600 Spiral Tilt Window Balance
23" Series 600 Spiral Tilt Window Balance
S600-23
$8.85
