Need These QTY 12

Contractor from St Pete
Need These QTY 12
1 user uploaded image
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for posting. Your balances appear to  be either the Series 351 or the Series 390 Channel Balance.

To determine which of these is the series you'll need, confirm the dimension for the depth of the bottom shoe. It should either be 1" or 1-1/8". Let me know if it doesn't match either measurement.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.

Once you've determined the series you have, you'll need to select the length of your balance on the list for your series. This measurement is regarding only the length of the metal channel and does not include the attachments.

Then you'll need to select the stamp option needed for your window based on the stamp/marking from the metal channel. If there are no stamps or you cannot cross-reference it with ours, you'll need to obtain the exact weight of your window. There is a chart under each specific balance length that lists the stamps and the weight range they can support.

Let me know if you have any questions.

Contractor from St Pete

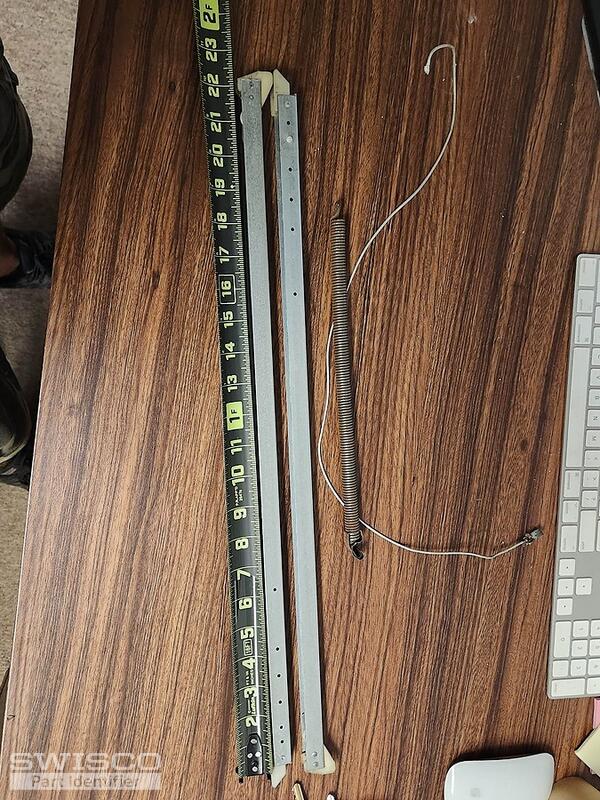

Here is the pic ..... its kinda just shy of 1 1/8" and def bigger than 1". I would think it's the 1 1/8" one if Im guessing?
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Yes, that is correct. Since it is over 1", it is like the 1-1/8" measurement.

It is likely worn down caused by use of the window over the years.
