Need Window Parts

Quick Learner from Palm Bay, Fl
I have windows; H-LC30-53x96. I already have 2 counterbalance replacements; #29 9 ax cmc 11, and they look like the originals, but I will need your equivalent part number for more pieces.
I also need the plastic stops that are screwed onto the lower window top/ side of this model window to interface with these counterbalances. I also have outside white window grids, and was wondering if you sell the white snap in pieces that hold the grids into the window.

Thanks, Greg
6 Replies
Casey
Casey from SWISCO
SWISCO
Expert
Hey there, Greg. Although we appreciate the detailed information you have provided to us, we would also like for you to provide us with some photos of the parts you are looking to have replaced. Seeing the parts gives us the extra push in the right direction of locating your replacements.
Quick Learner from Palm Bay, Fl.
Hi, Window Balance has #29 9 ax cmc 11, with the following ends, see pictures.
Greg
User submitted photos of a window balance.
Tom
Tom from SWISCO
SWISCO
Expert
Thanks! Based on these pictures, I would start with our S385-30. Your stamp is outdated, so you will need to weigh your sash on a scale to confirm the best modern stamp option.
Quick Learner from Palm Bay, Fl
Hi, sash weighs 26.6 lbs. also need the sash guide/ balance catch. See pics. Piece is 1/12

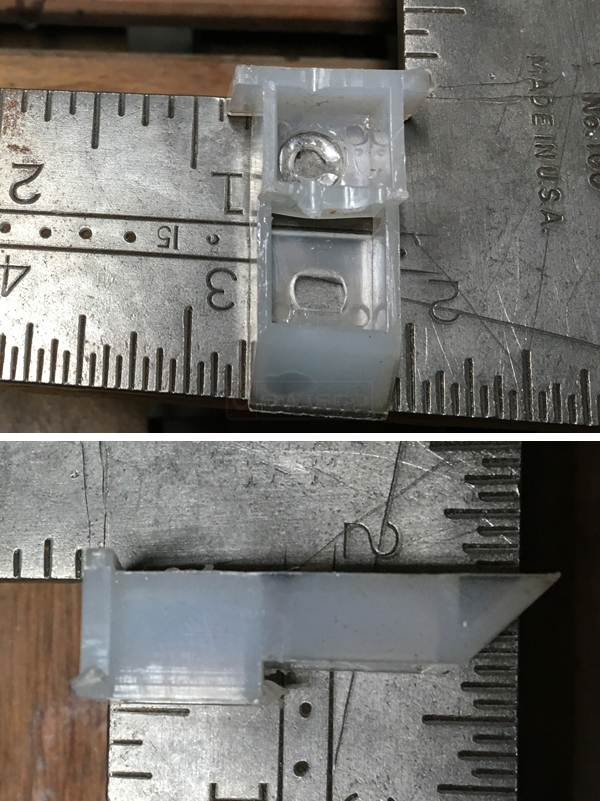

User submitted photos of a top sash guide.

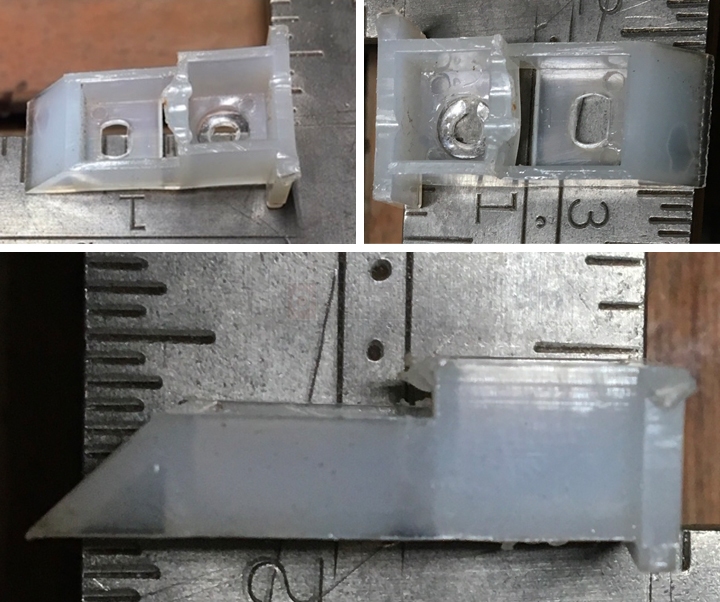

User submitted photos of a top sash guide.
Tom
Tom from SWISCO
SWISCO
Expert
Thank you! Please see our 18-166 top sash guide, this looks like it would be a good match. For a sash that weighs 26.6 pounds, I'd recommend the 2940 option.
