Need Window Parts

Question

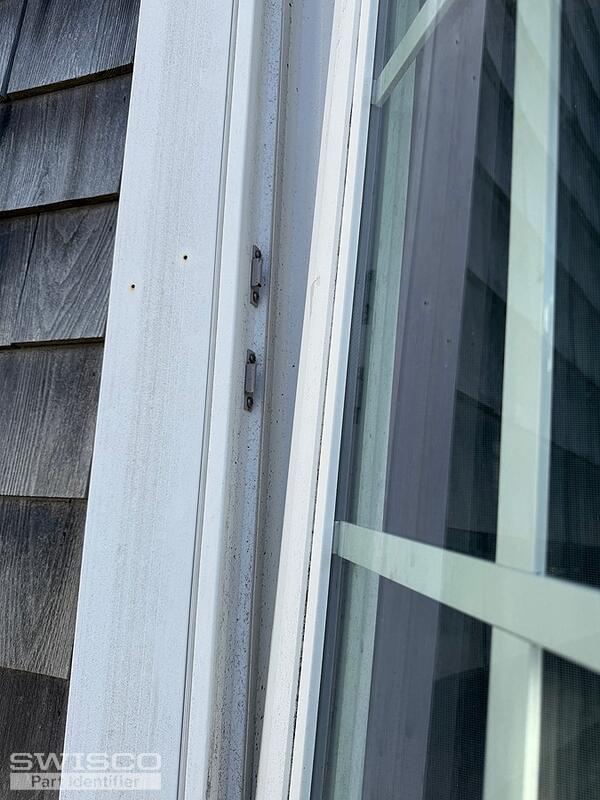

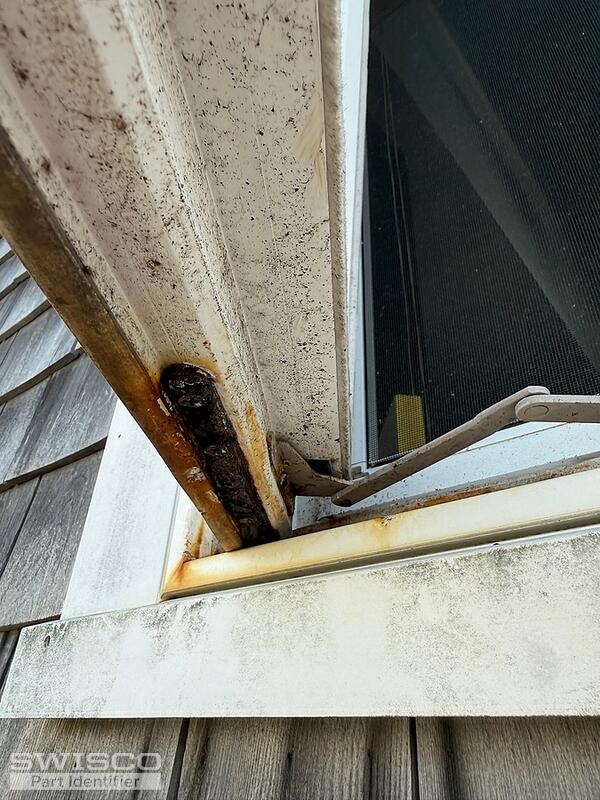

Hello, I was wondering if you have these parts, I know That I'll need more info but is this something you would have? The windows are fine, but the weather killed the metal.
Thank You for your help, I have 9 windows that need these, I just have to see if they are different sizes. the metal bracket on the bottom of the window measures 7 inches. It is labeled "truth" if that helps, on this one Ineed a right and a left. Thank You

Jasmine · Accepted Answer

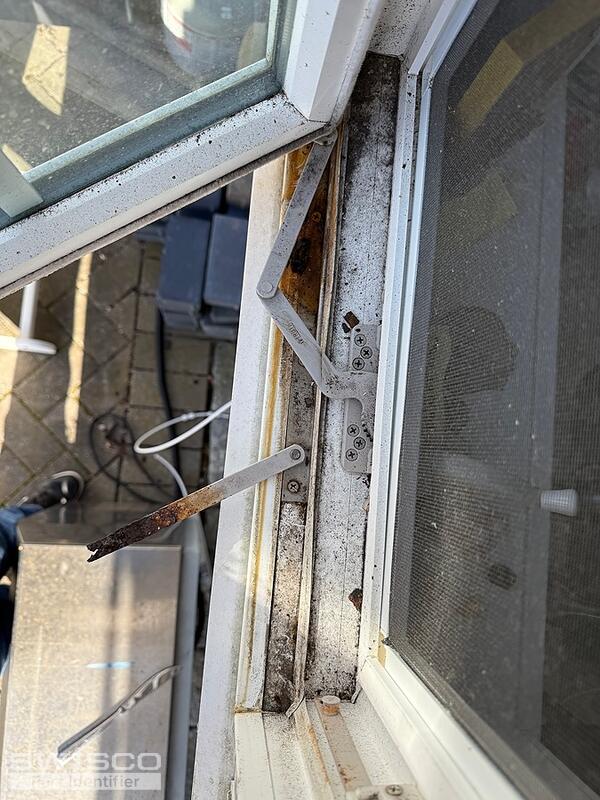

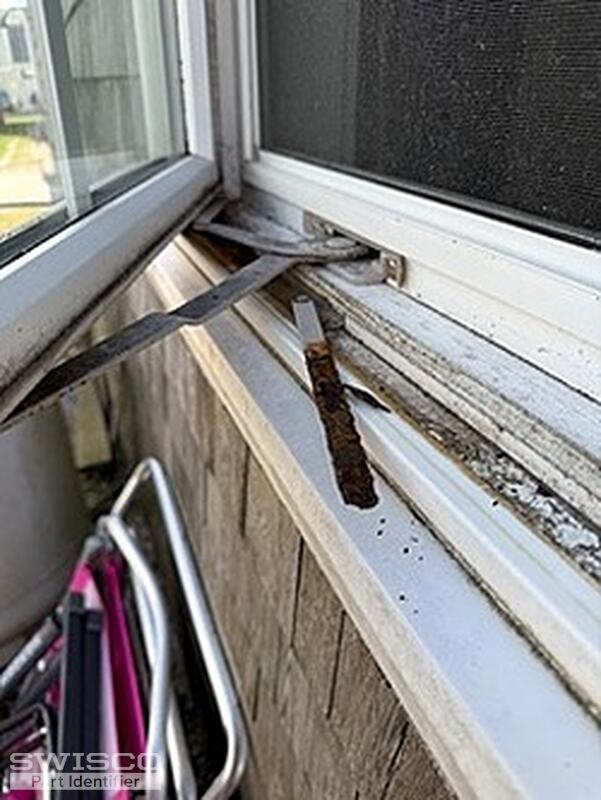

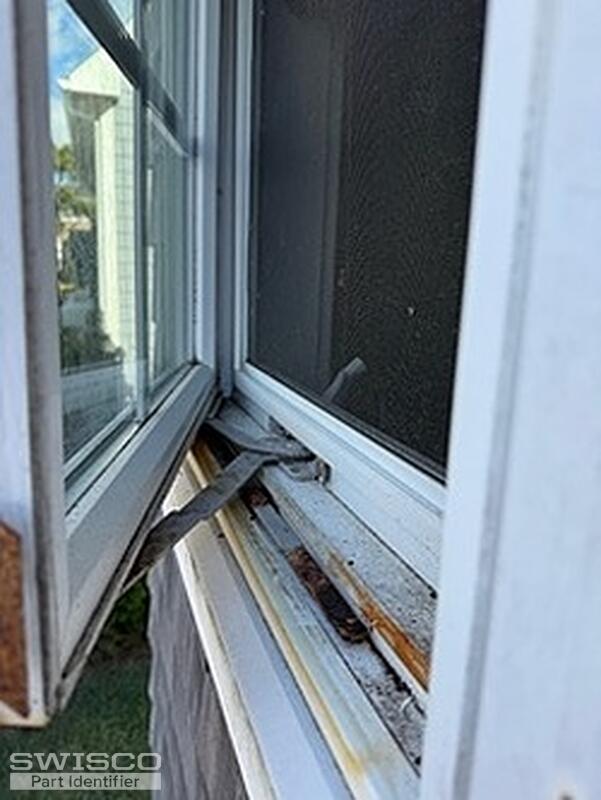

Thanks for your post! The operators you have pictured here are a dual arm operator and an operator with just a link arm.

The dual arm operators can be replaced with the 39-253LB and 39-253RB Encore Dual Arm Operators. These are used with the 39-529 Truth Hardware Track Slider, which slides in the 39-528 Casement Track. The other operators appear to be the 39-220B and 39-221B.

The link arms, for both operator styles (for the dual operator its the smaller arm), attach to the bottom of the sash using the 39-545 and 39-546 Truth Snap Stud Brackets. You'll also need either the 39-375 and 39-376, or 39-451 and 39-452, to replace the covers and handles.

The window hinges can likely be replaced with either the 36-048 2 Bar Hinge Set, or the 36-004-10 (which is stainless steel). To determine the best option for your repair, you'll need to carefully compare each of them. If the track length is not a match, please let me know. Both sets can be used to replace the top and bottom hinges, for left and right handed applications.

The dimensions/specifications for all of this hardware can be viewed directly on the website.
