Need a locking handle for this lock

A handy person from Long Beach, CA says:
September 21, 2022

We have a sliding patio vinyl door that we need to install a new locking handle with a Schlage keyway. the door is 1.5" thick and the screws are 3 15/16".

Sincerely,

Don

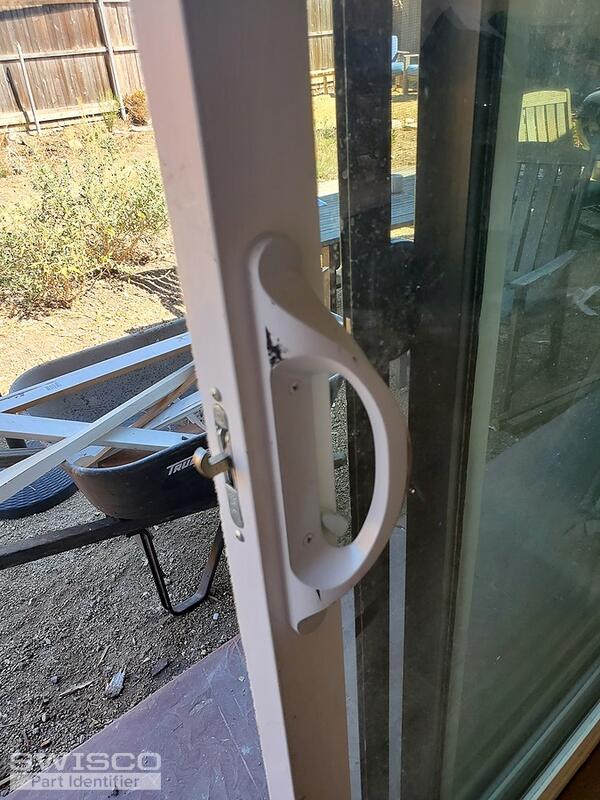

Thumbnail of the uploaded file named Lock 1.jpg

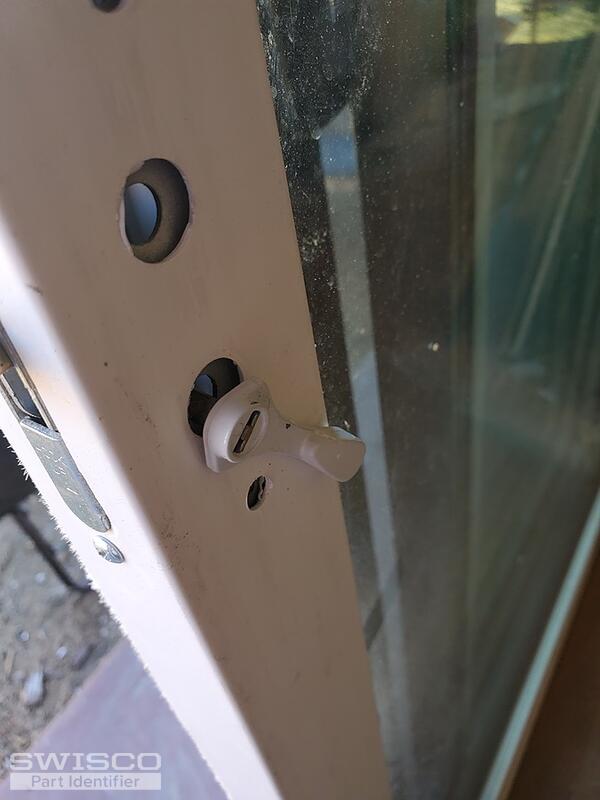

Thumbnail of the uploaded file named Lock 2.jpg

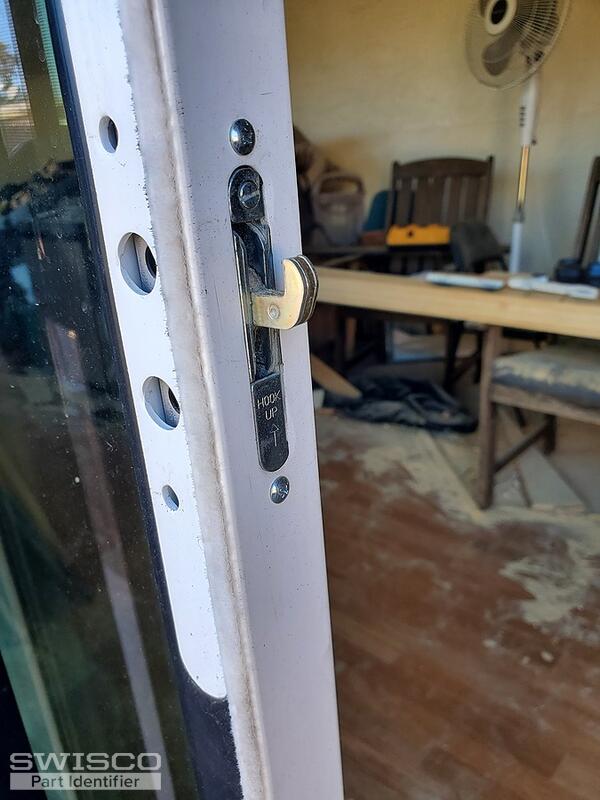

Thumbnail of the uploaded file named Lock 3.jpg
Profile picture of Tom
Tom from SWISCO responded:
September 27, 2022

Hello, Don! My recommendation here would be our 82-030 handle set. This should be fully compatible with your door and existing hardware.

Now, it doesn't come with a key lock and we do not sell a Schlage that would be compatible. The only lock we sell that can fit in this handle set is our 82-310, which is Kwikset. I am sorry for the inconvenience.
Key Lock
Key Lock
82-310
$14.30
Sliding Patio Door Handle Set, 3-15/16"
Sliding Patio Door Handle Set, 3-15/16"
82-030
$29.95
