Need a new Handle???

Question

Hi guys,

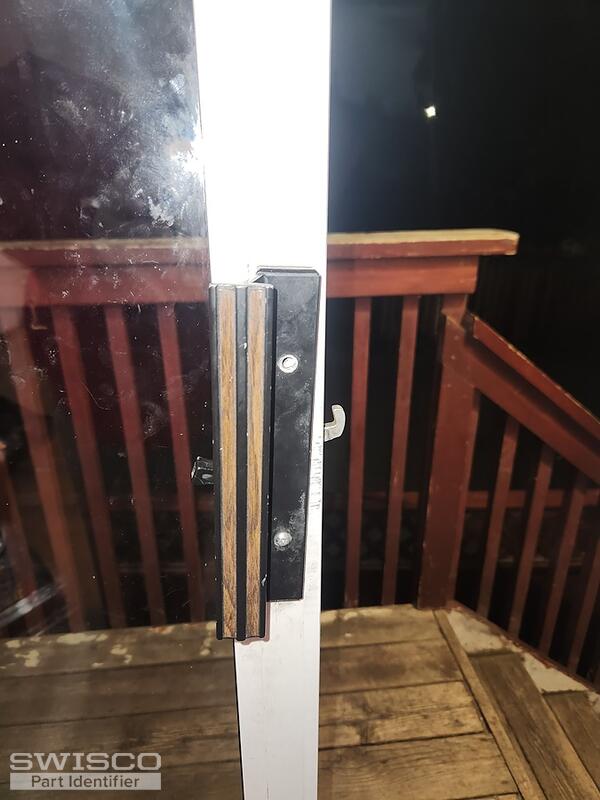

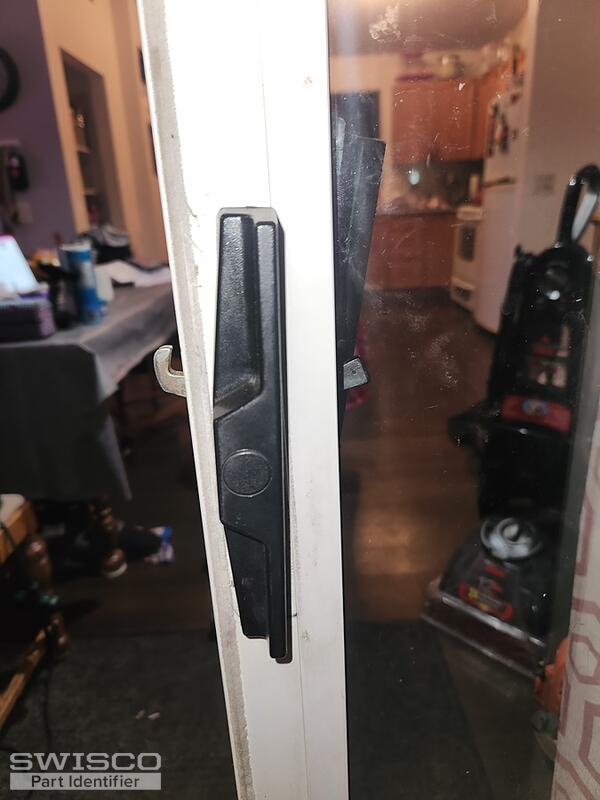

I need some help figuring out what to replace my broken door handle with. I would like to get a handle with a key lock on it, but if one is not available for my door I'm okay to just replace it.

Can you give me 3 or 4 suggestions?

Thanks! - Christine

Casey · Accepted Answer

Hello,

I suspect you can replace your old-style handle set with the 82-030 as long as the 3/15/16" hole spacing matches yours. If the thumb lever is in an offset position, take a look at the 82-030B keyed version of this assembly. If the thumb lever is centered, see the 82-030A. Both of these parts have a keyed exterior pull and measure 3-15/16" on the installation hole centers. Review the specifications and see what you think. Thanks for posting!

Hole center dimensions for 82-030

Dimensions for 82-030
