Need a pair of window balancer kit

Handy Person from 37054 O'Brien, Oregon

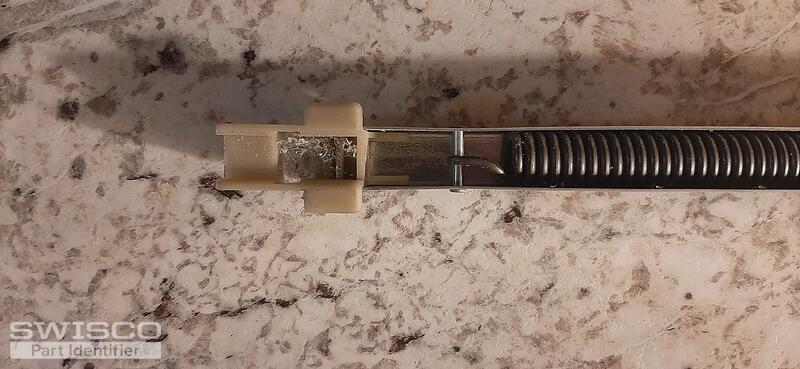

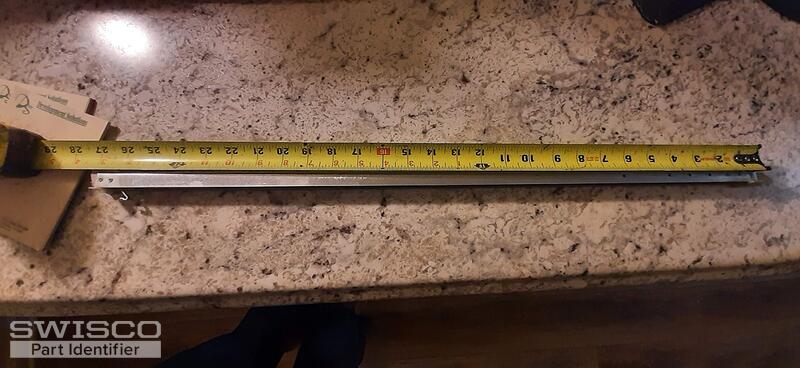

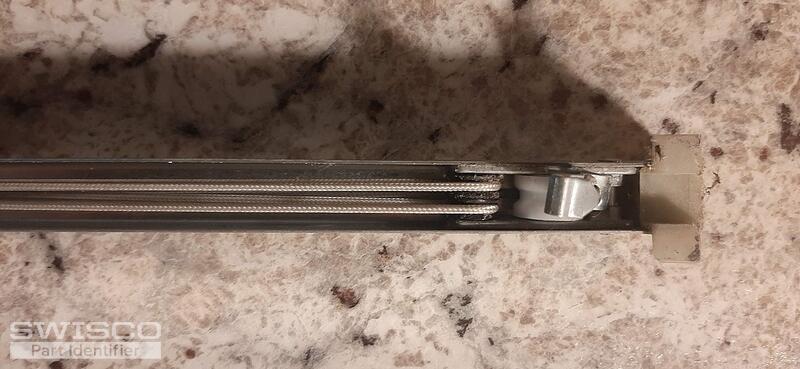

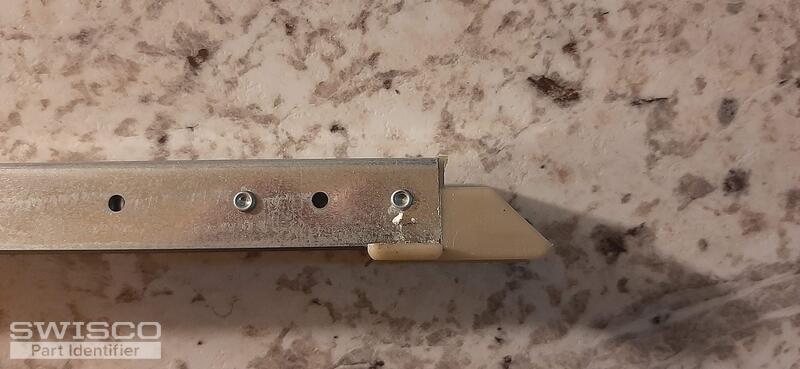

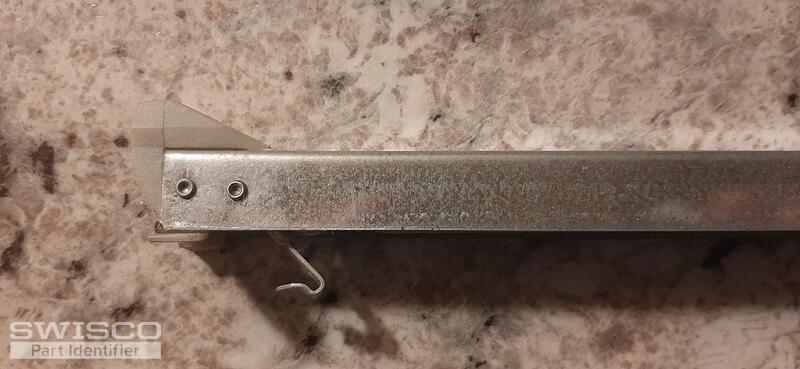

46' by 58' up and down Kinro Window balancing kit. Pictures attached
5 user uploaded images
2 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello, thank you for posting,

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

Are you able to confirm the length of the metal channel excluding the nylon attachments? We will also need to know the number stamped on the metal channel. If there are no visible numbers, we will need the weight of the window sash to determine the correct strength to support the window sash.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
