Need a replacement awning operator

Question

Hi,

The crank on our awning operator is damaged, so we need a new one. I looked on the web site, but couldn't find an exact match for the one we have. Any help in identifying the correct part would be appreciated.

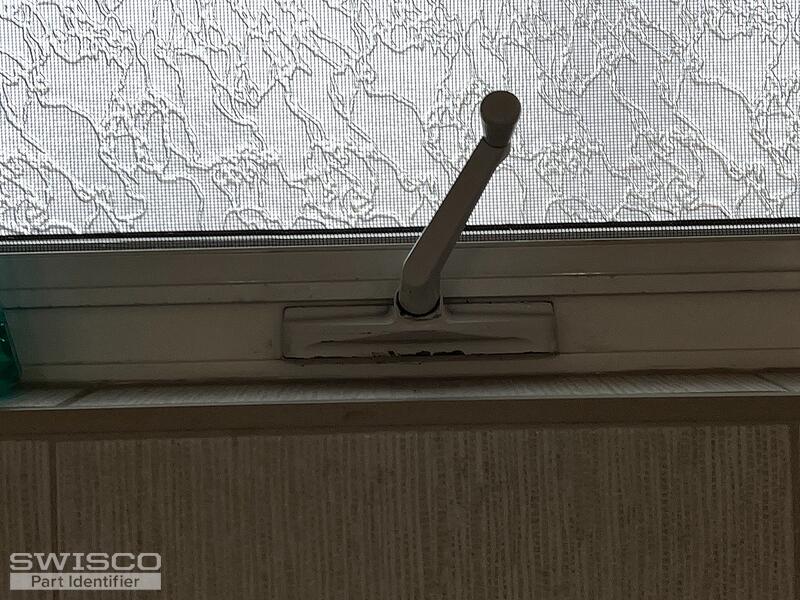

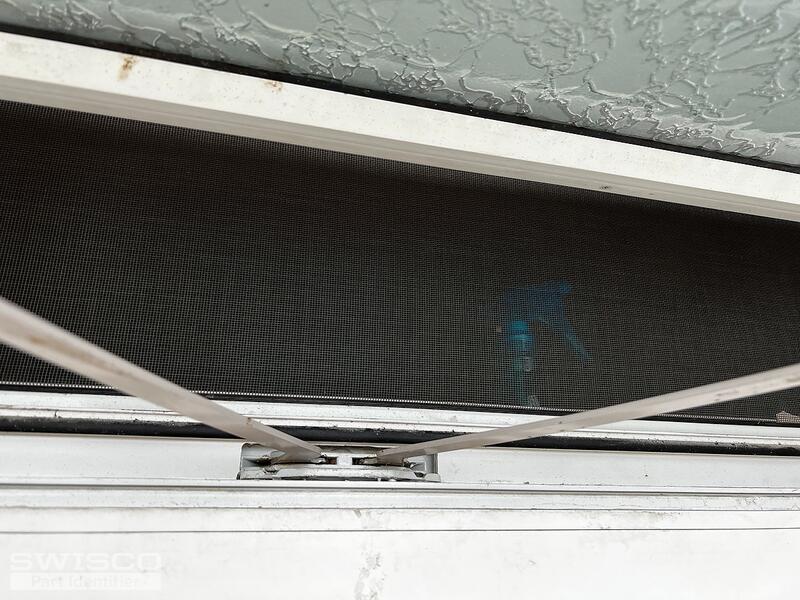

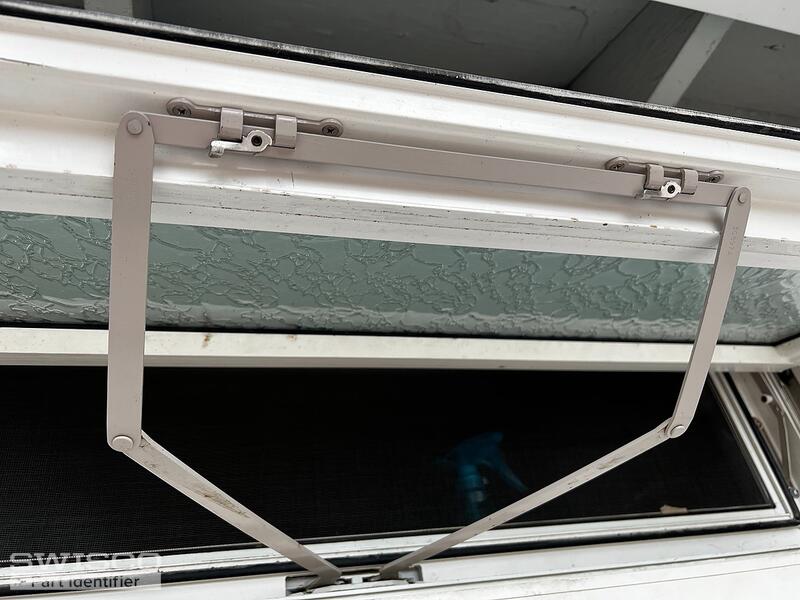

I've attached photos of the operator. The bar attached to the window is 13 1/2", and the extending arms are 10" and 6 1/2" measured from the joint to the end. The awning extends roughly 15" due to the window size, but it can extend further (maybe 20" or so?).

Thank you for your help.

Casey · Accepted Answer

Hello,

Your photos resemble the 39-015 but we measure these operators a bit differently than the specifications you've provided. Take a look at the diagram below to confirm if it matches your assembly. Thank you!

Detailed drawing of the 39-015 awning window crank operator
