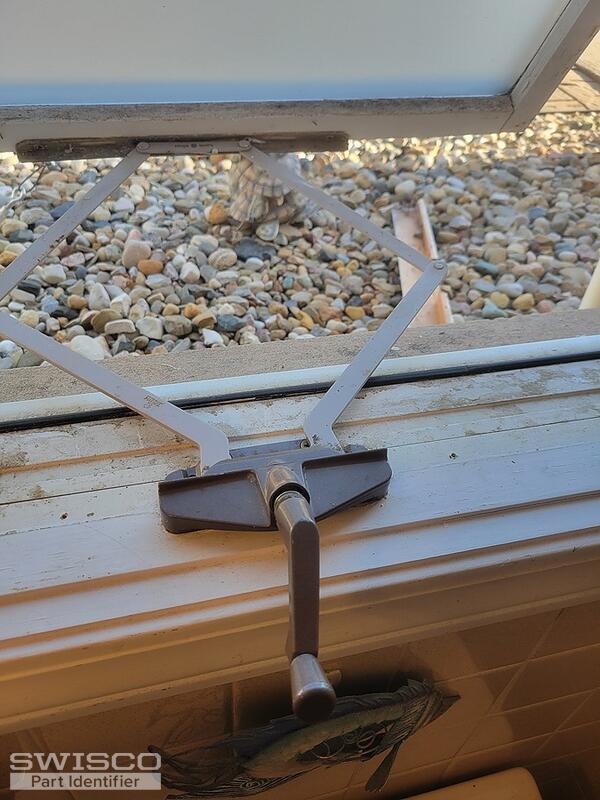

handle, gearing, and arm set up

Handy Person from Indiana
Sep 4, 2024 6:53 pm
Google picture search pulled this up as on of your parts. 40085 is stamped on the underside of the handle, no other numbers on the unit.
17254902508032838182171672925985
1 user uploaded images
1 Replies
+ Add a Comment
Casey
Casey from SWISCO
Sep 9, 2024 4:14 pm
SWISCO
EXPERT

Hello,

Take a look and compare the 39-083 and 39-140 awning operators to your assembly. The size of the arms when retracted would be the determining factor. Both parts use the 39-114L handle. Thanks for posting!

Dimensions for 39-083
Dimensions for 39-083

Dimensions for 39-140
Dimensions for 39-140
