Need a replacement lock

Home Owner from Anchorage Alaska
I am looking for a locking system to replace my current nonworking locking system for my slider. Newcastle XT\insulate 960
CPD: PWG Dash M - 144.
3 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hello,

Thanks for posting! I am confident we can make a replacement recommendation for the handle set you have but I'll need to know the measurement for the distance between the installation holes. This measurement should be from the center of the top hole to the center of the bottom hole.

It would also help to see the handle set removed to see exactly how the handle set interacts with it.

Please don't hesitate to reach out with any other hardware repair questions you might have.

Quick Learner from Anchorage Alaska

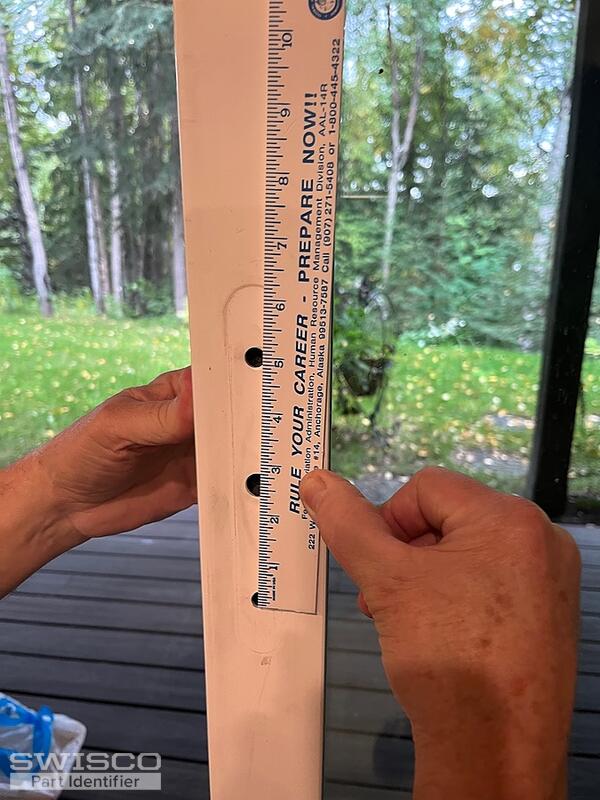

Here are the measurements you asked for: see photo
1 user uploaded image
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for the photo. I believe you can use the 82-081 Keyed Mortise Style Handle Set. It appears that measurement should be 4-15/16" but it is hard to tell from the photo. Be sure to double check this.

Dimensions for 82-081
Dimensions for 82-081
