Need arm assembly

A handy person from Brooklyn NY says:
Hi, I need a new arm operator assembly for this window. Can you let me know which one I need? This is an Andersen window.

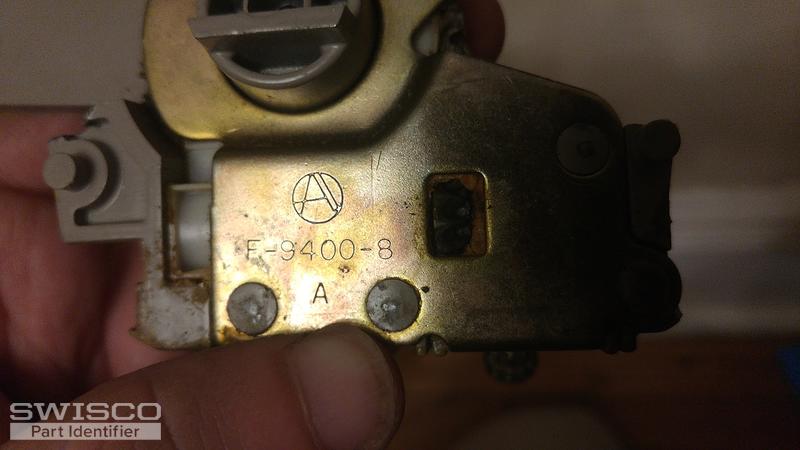

Thumbnail of the uploaded file named 20191003_225826.jpg

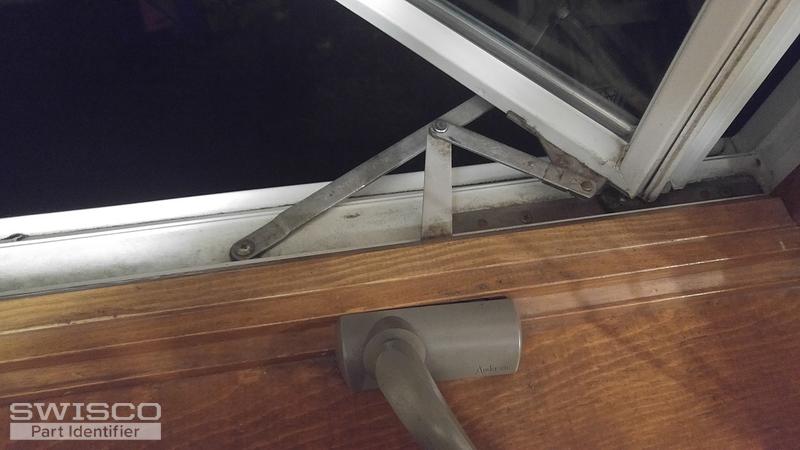

Thumbnail of the uploaded file named 20191003_211614.jpg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for writing in. See our 39-264 to start. Carefully go over all the dimensions, and let me know if you think this might work for you.

Profile picture of Bob
Bob from SWISCO responded:

Could you give us the measurements of the hole spacing?

A handy person from Brooklyn NY says:
The dimensions seem right but the whole locations are different. Would it still work?
A handy person from Brooklyn NY says:
Updated dimensions.

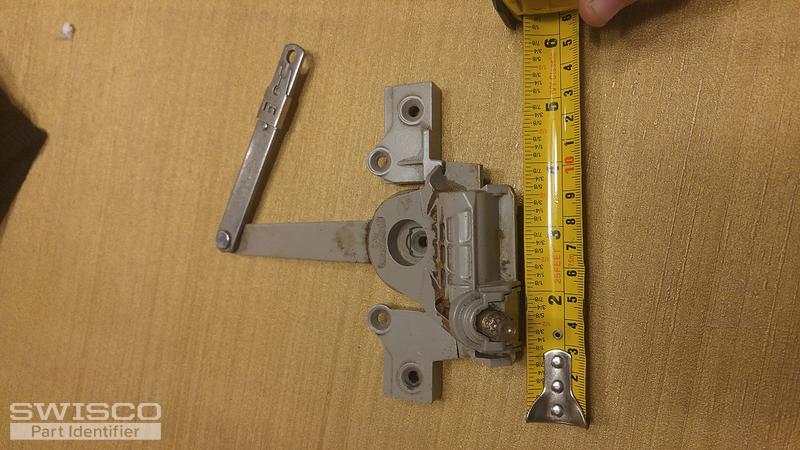

Thumbnail of the uploaded file named 20191027_182346.jpg

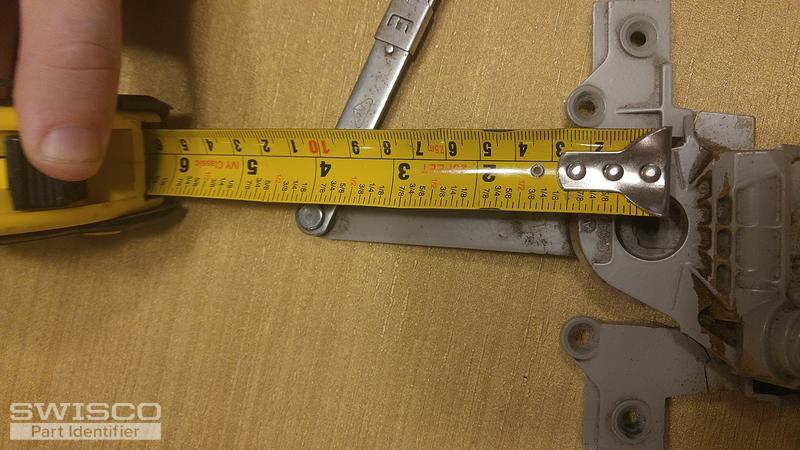

Thumbnail of the uploaded file named 20191027_182337.jpg

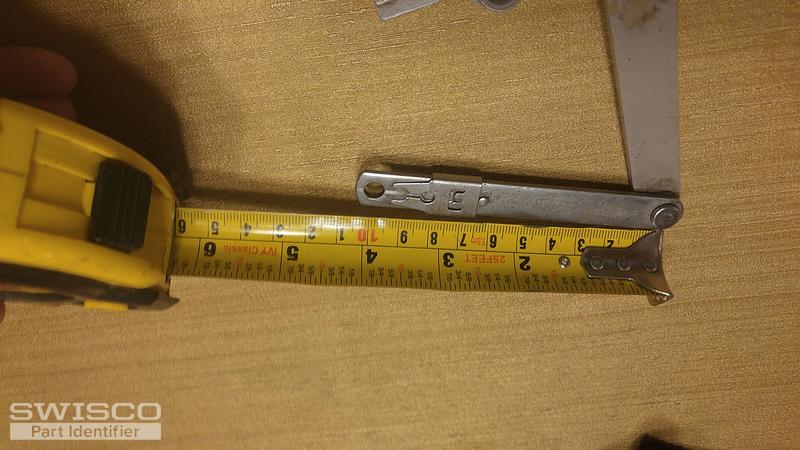

Thumbnail of the uploaded file named 20191027_182249.jpg
Profile picture of Tom
Tom from SWISCO responded:

Thanks! I can't really make out your precise dimensions from just a tape measure in a photo, but our 39-264 is definitely the best option in our inventory. Regardless of the hole spacing, this is the only version of this operator made anymore. Yours is likely an older model.

So what can we do about that? Well, it depends. If your window was made in the span of time from 1995 to 1998, then you can use our 39-362 adapter plate. This will allow you to install the modern 39-264 on your older window.
