Need balance parts 5.5 39" PAT523208

Start a new Discussion

Quick Learner from KY

Apr 21, 2017 5:47 pm

8 Replies

Quick Learner from KY

Apr 25, 2017 8:31 am

window measurement is 64" X 33.5"

Tom from SWISCO

Apr 25, 2017 10:01 am

I'm afraid this information does not tell us what balance you have. We will need to see a picture of the balance itself, preferably out of the window.

Quick Learner from KY

Apr 25, 2017 6:53 pm

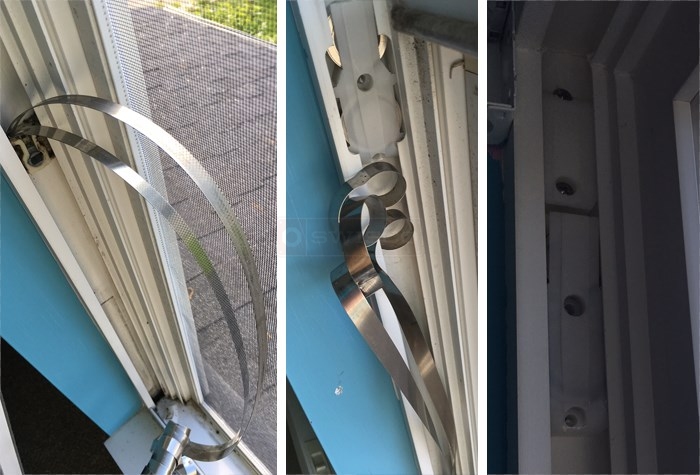

hope these work

Tom from SWISCO

May 1, 2017 9:49 am

Ah, I see. This is a type of coil balance. Your pivot shoe resembles our 15-111. Do you agree? If so, I would recommend our S160-5 to replace your old springs. These are also stamped with "5.5."

Quick Learner from KY

May 1, 2017 6:07 pm

I measured the pivot shoe and it is exact.
I was wondering if the spring is 4 inches shorter than the original, should I lower where the coil support is located by 4 inches?
If you think that will work then I would like to order:
2 pivot shoes 15-111
2 1/2 inch coil double supports and
4 S160-5 coil springs

Thanks

Quick Learner from KY

May 3, 2017 1:23 pm

so does this sound like it will work?
Should I order these parts?

Tom from SWISCO

May 4, 2017 10:23 am

Ah, I see. If the old springs were longer than the new ones, mounting them a little lower may make all the difference. However, you need to make sure that they aren't mounted so low that they interfere with the tilt latch. Triple check the travel and location of the tilt latch as you raise and lower your sash just to make sure.
