Need balance please help identify

Home Owner from Chicopee, Ma
Aug 25, 2024 11:38 am

Hello,

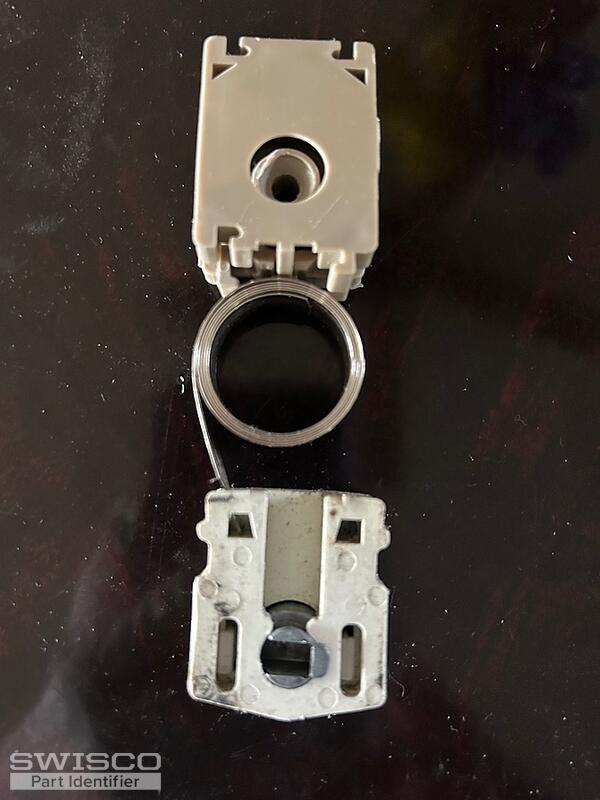

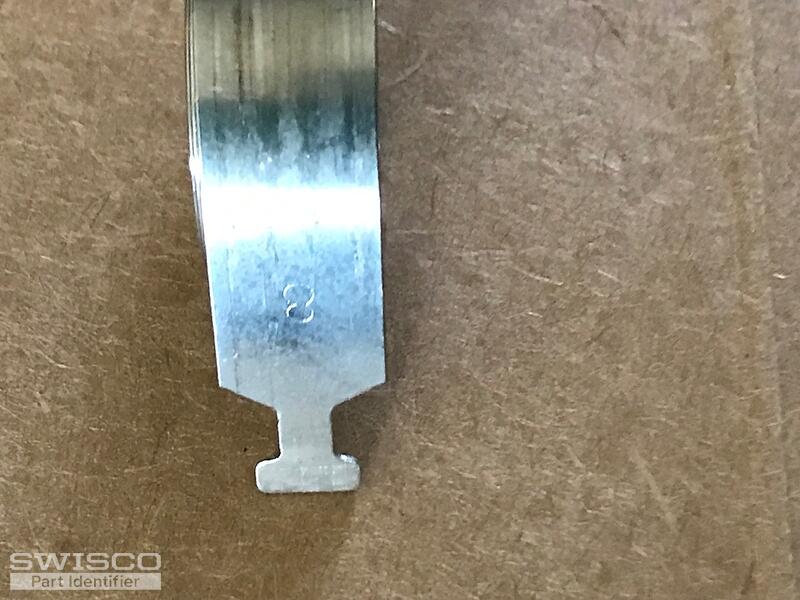

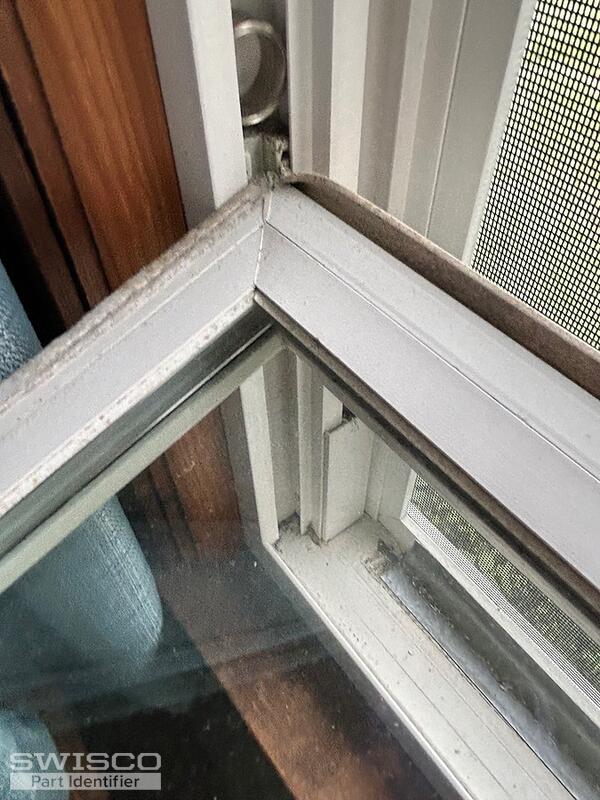

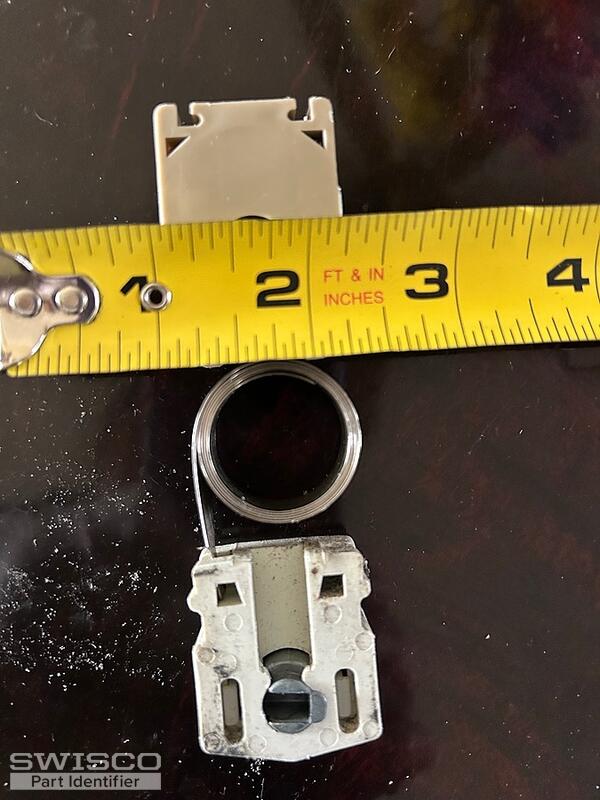

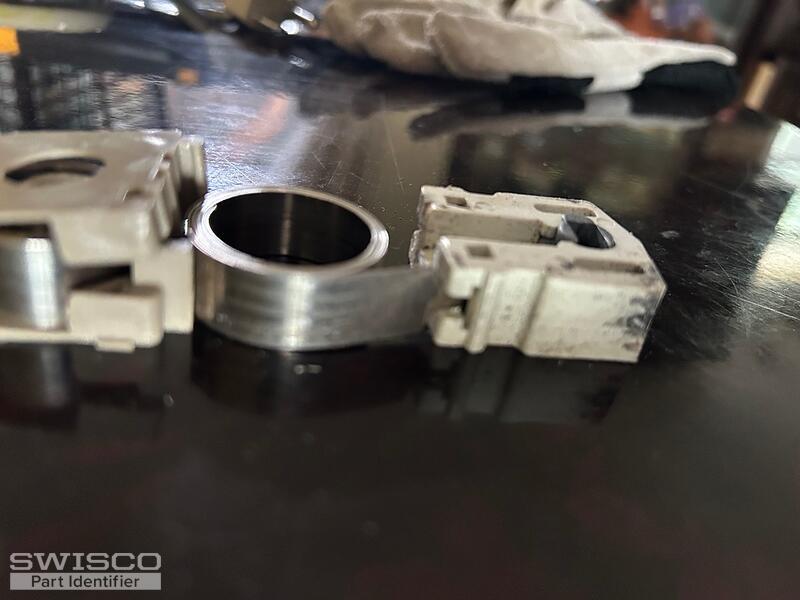

I need window balance for my double hung window. Lowe can't help. The window is 25 years old. the balance has 5 on cover, it is 1.25 inch wide. Metal coil has 8 on it. Please help identify, thanks Julie

IMG_1455 IMG_1454 IMG_1453 IMG_1433 IMG_0829
5 user uploaded images
5 Replies
Jasmine
Jasmine from SWISCO
Aug 26, 2024 10:54 am
SWISCO
EXPERT

Thanks for writing in! I am confident we can provide you with a replacement recommendation for your coil balance shoe. I'll just need to know the measurement for the width and the thickness of the balance shoe. It would also help to confirm the thickness of the coil spring.

May I also see a photo of the pivot bar this shoe is compatible with? It is likely still installed at the bottom of the sash.

Please don't hesitate to reach out with any other questions in the meantime.

Home Owner from Chicopee, Ma
Aug 27, 2024 7:16 pm

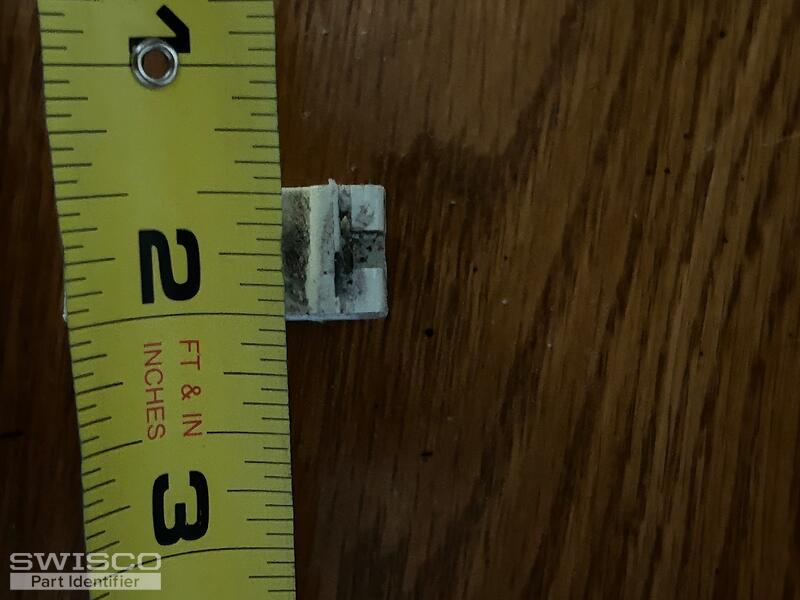

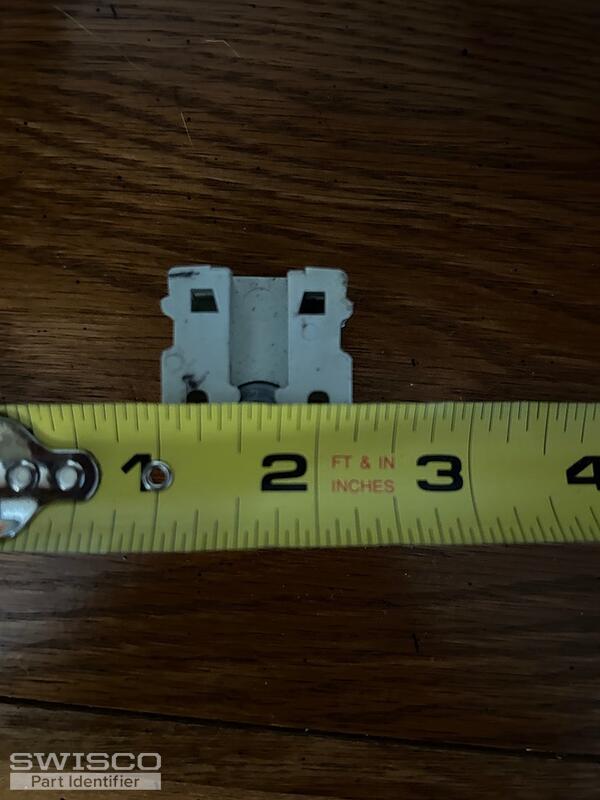

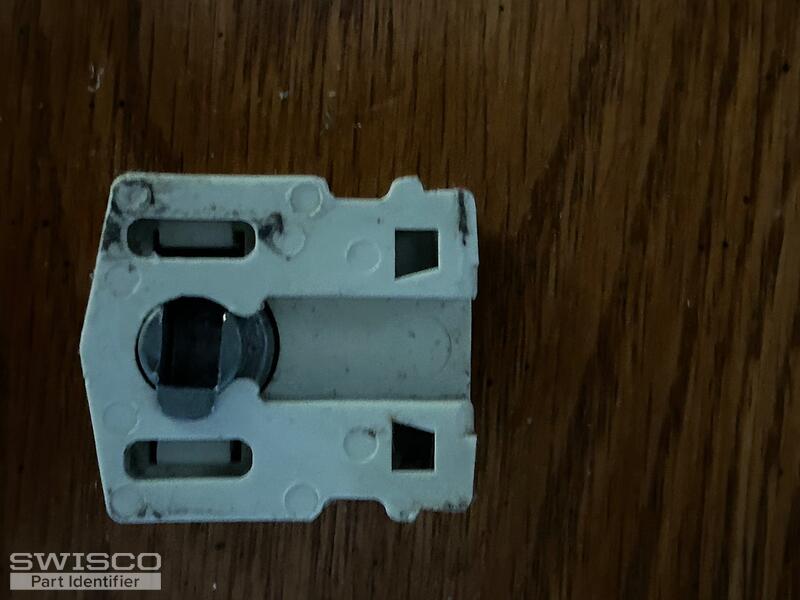

The balance shoe is about 1/2 inch x 1.25 inch but I think the balance shoe is working just fine. I think the item I need to replace is the coil springs it is about 1/2 inch. Can I replace just the coil spring? Thanks

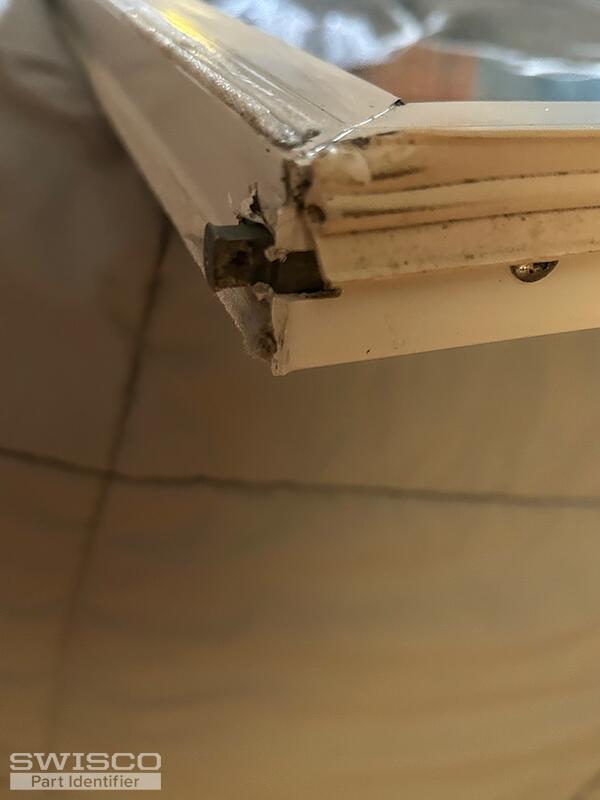

IMG_1472 IMG_1471 IMG_1467 IMG_1465
4 user uploaded images
Jasmine
Jasmine from SWISCO
Aug 28, 2024 9:08 am
SWISCO
EXPERT

You may be able to use the 1/2" thick S160-07 to replace your coil; although, the tongue that connects the coil to the shoe is just a bit longer than the one on your existing coil. This coil is rated to support 7.5lbs, so you'll need to replace them on both assemblies to keep the sash even.

If you are also considering replacing the cover, I suggest using the 15-150S.

Home Owner from Chicopee, Ma
Aug 28, 2024 8:11 pm
Is it different to use 7.5 lbs vs 9 lbs? Just in case I also need the shoe, can you please recommend shoe product code?

Thank you very much!
Jasmine
Jasmine from SWISCO
Aug 29, 2024 9:47 am
SWISCO
EXPERT

We typically suggest using coil balances that can support a weight within 1lb+/- the sash weight. Since your original balances were stamped with an 8, it is likely the sash weighs somewhere around 16lbs.

Two 9lb coils would provide 18lbs of tension, which would be too strong for the sash.

To replace the shoe, I believe you can use the 15-191 Heavy Duty Pivot Shoe. Be sure to double check the dimensions to confirm that it would be a fit.

Alternate image for 15-191
Alternate image for 15-191
