Need balance and locks

Handy Person from Cumberland ri

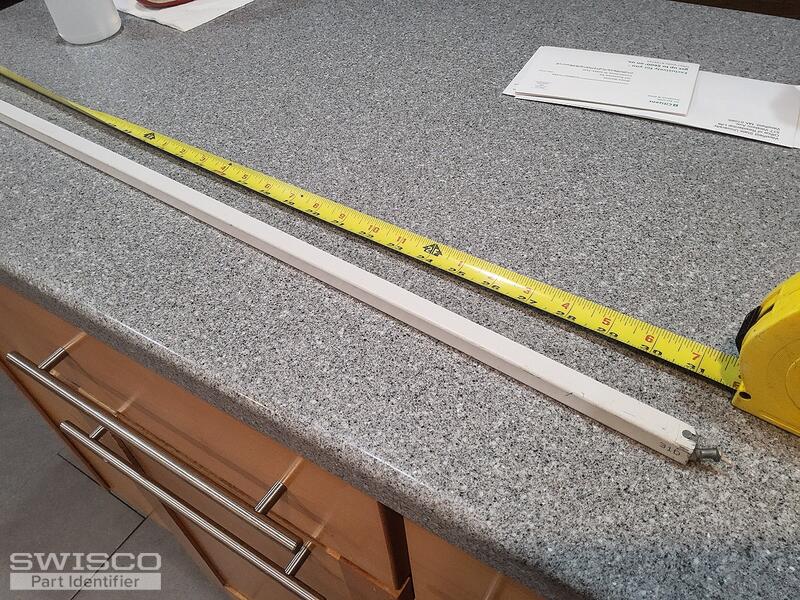

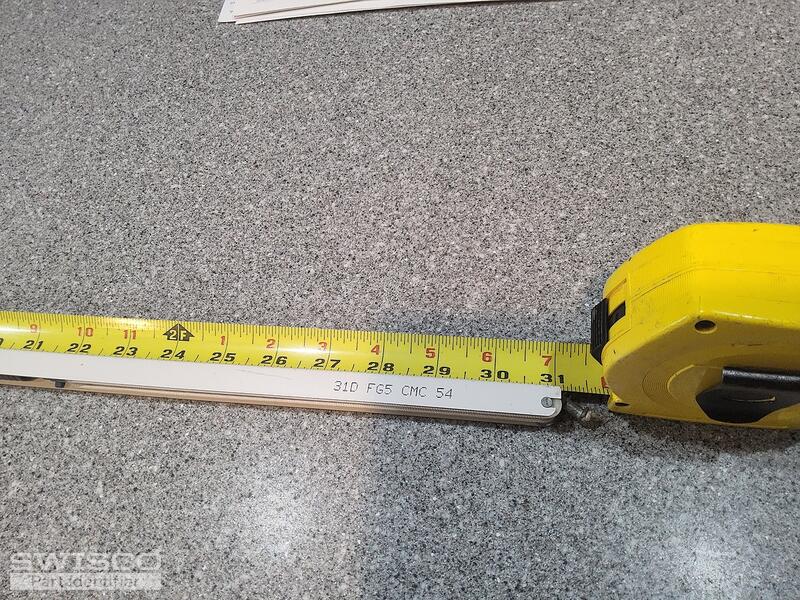

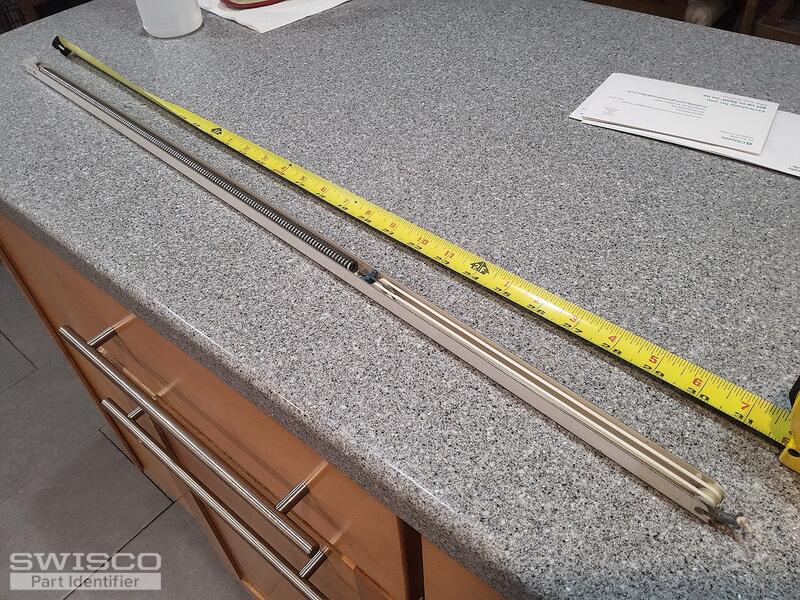

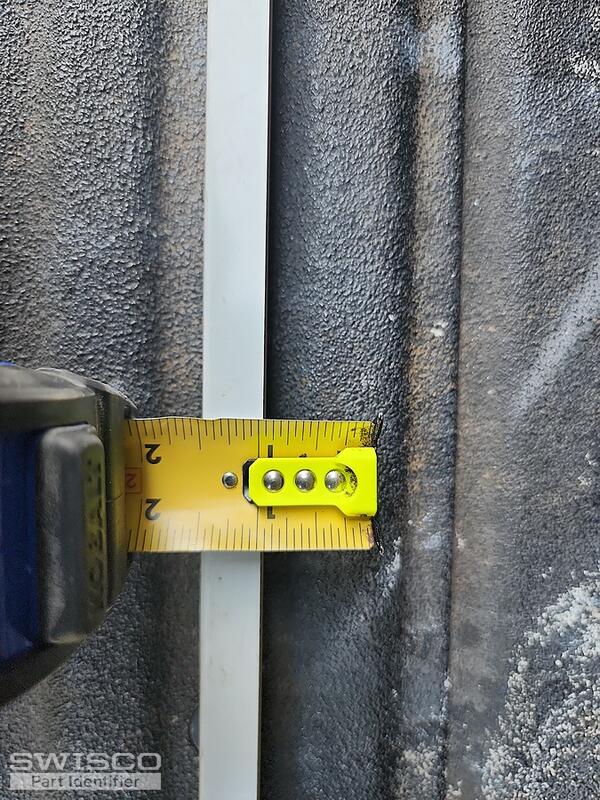

Window was purchased from Lowes 10 years ago length is 31 inches

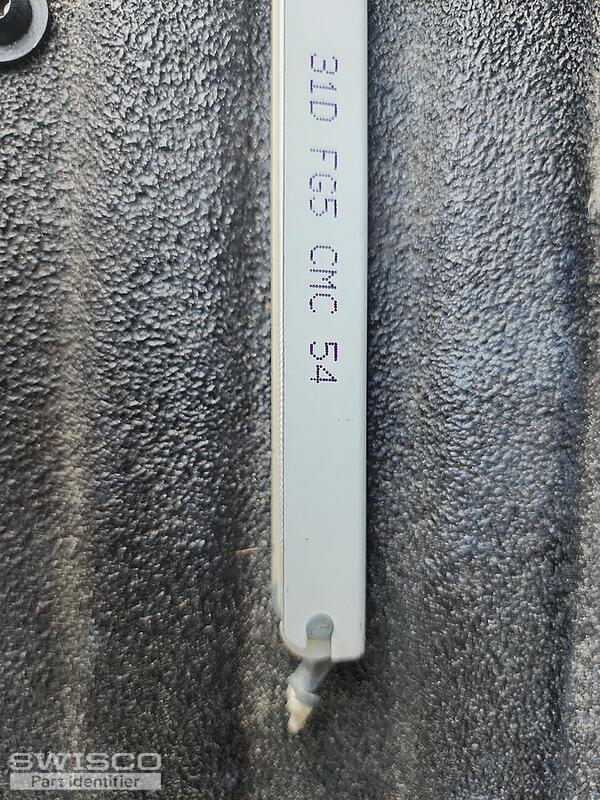

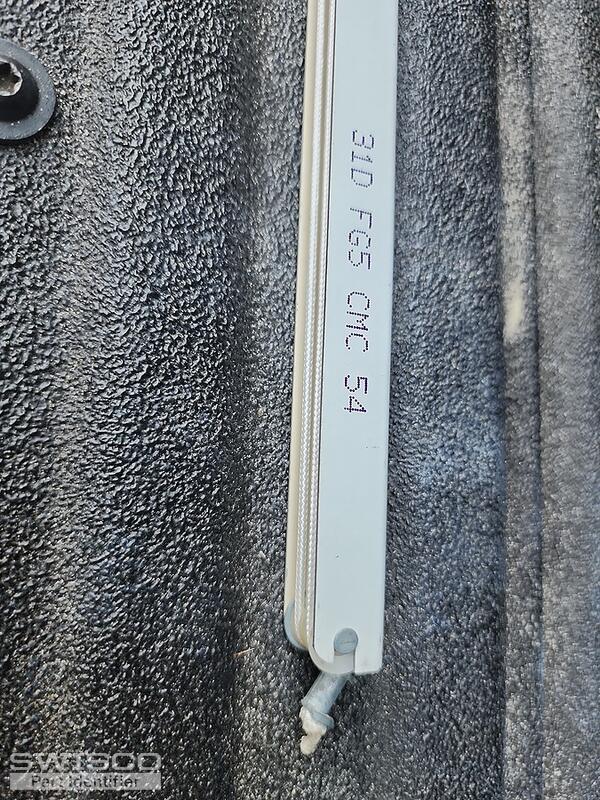

31D Fg5 cvc 54
3 user uploaded images
5 Replies
Tom
Tom from SWISCO
SWISCO
Expert

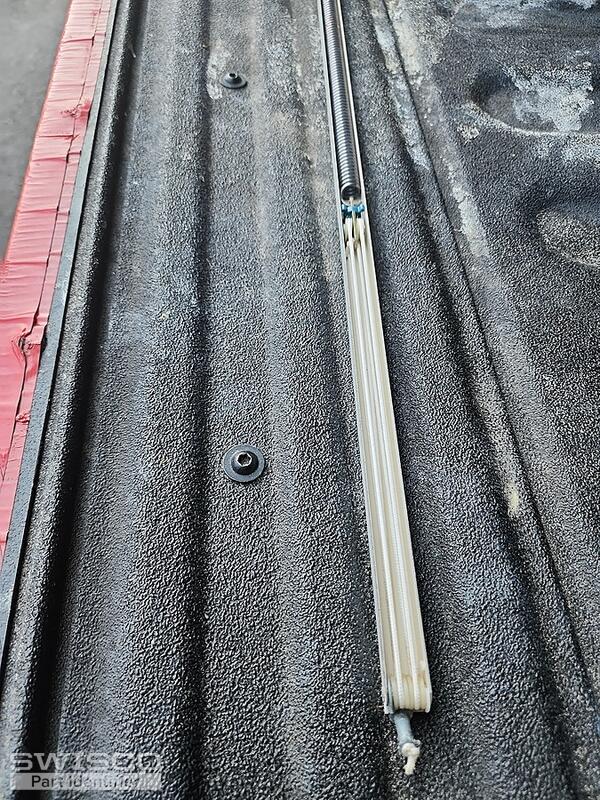

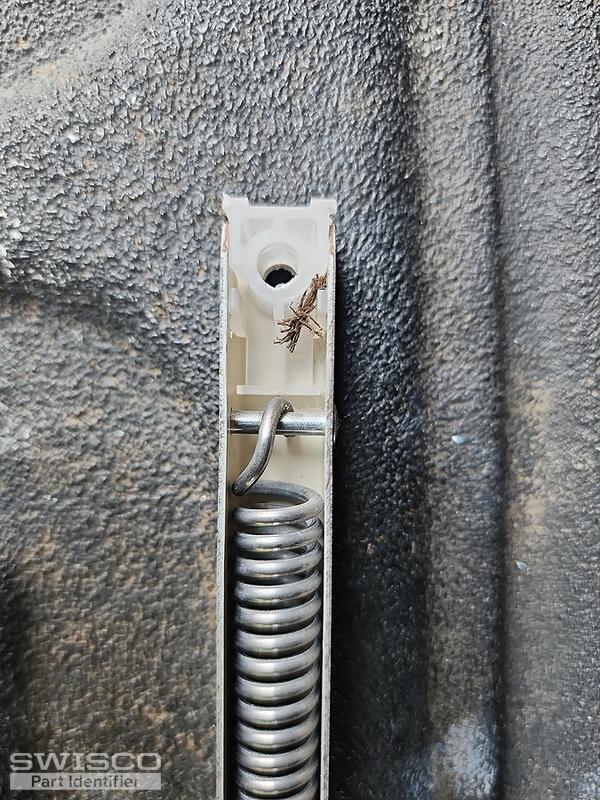

Thanks for reaching out to us. I believe your balance will have to be a special order, due to  its configuration, but I'd like a few more photos from you before I say anything for sure. I'd specifically like to see a clear and close up photo of the bottom end and top end of the balance. Please make sure that it's flipped over so that I can see the "inside" of the balance; that is to say, the open part where all the internal components are.

I'd also like to know how many of these altogether you needed.

Handy Person from Cumberland ri
Let me if you need more photos. Looking for 4 of each blocks and balances.
5 user uploaded images
Handy Person from Cumberland ri

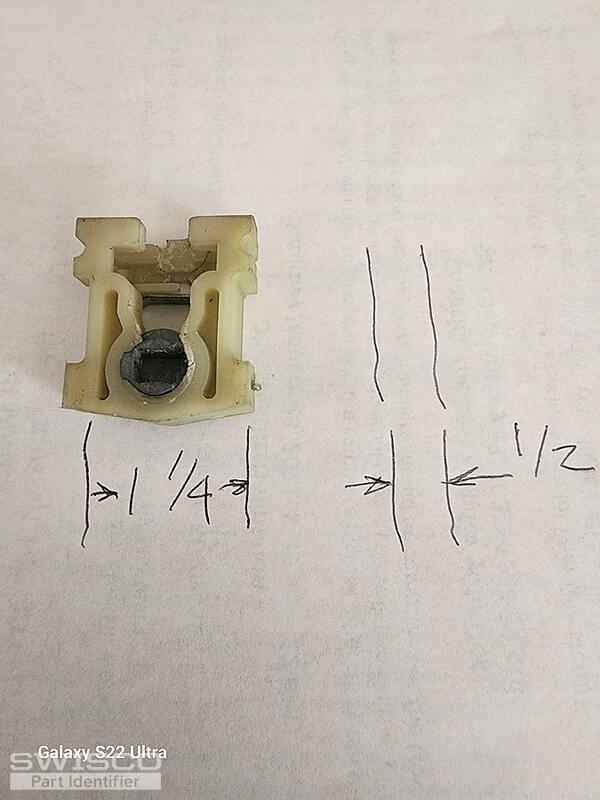

Looking thru your catalog , I think the shoe is 15-216. Not sure of the balance.
1 user uploaded image
Tom
Tom from SWISCO
SWISCO
Expert

These photos are perfect, thanks! You are correct, the 15-216 should replace your original. It is a modern version of your older part.

The balance is also something we can supply, but it has to be a custom order as it's not a stock configuration. What we would use is our S770-31 channel balance, but we'd also swap the bottom metal clip for our 15-044 attachment. This is the attachment that can fit into the 15-216 shoe.

If that sounds good to you, let me know how many you wanted to buy and I can email you a purchase link and price quote that you can use to place an order on our site.
