Need bottom track and rollers

Home Owner from Langhorne, PA

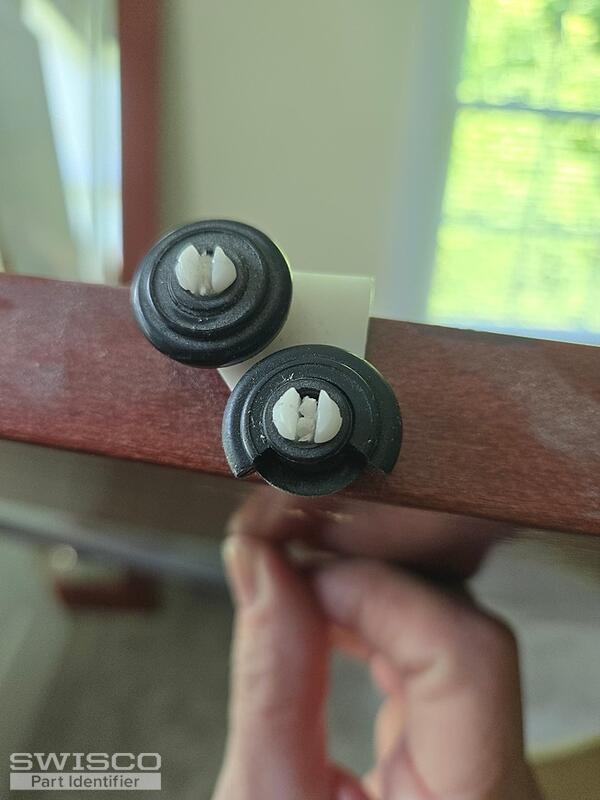

Hi! We need a replacement bottom track and rollers for these mirrors. The rollers were damaged and the track was thrown out during a recent renovation.
4 user uploaded images
6 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

I can't be sure without seeing how the part attaches to the door but I suspect you may have a part similar to the top roller guide shown in another customer's post here. If so, the 23-222C would be our best replacement option, which was recommended by Stanley to replace the old-style version of this guide. Take a look and see what you think.

Dimensions for 23-222C
Dimensions for 23-222C

Home Owner from Langhorne, PA
Hi. If I understand correctly we should replace the top and bottom rollers and the top and bottom tracks, correct? Are these all sold separately or as a kit?
Casey
Casey from SWISCO
SWISCO
Expert

As long as the rest of your hardware is still in good condition, you shouldn't need to replace the tracks or bottom guides. If you need any other parts, we'll need to see photos of those as well, since most closet hardware does not come as a kit.

Home Owner from Langhorne, PA

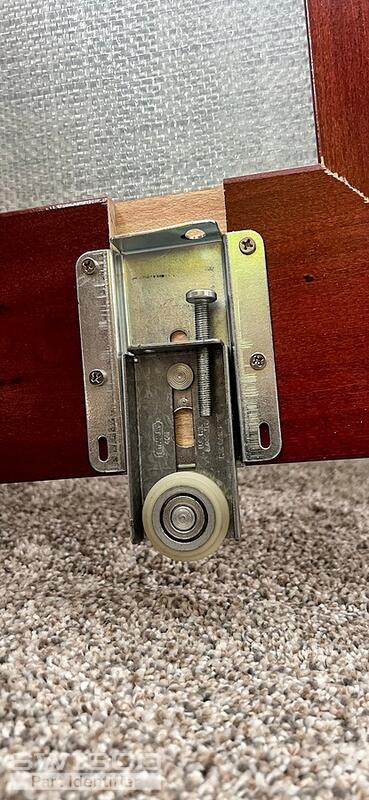

Hi. Here is a photo of the bottom roller.  We need to replace the bottom track for this. Do we need to replace the roller as well, or do you sell the track?  The track is 46 inches.
Or should we replace top & bottom rollers and top & bottom tracks? Do you sell a kit, or is each part sold separately?
1 user uploaded image
Casey
Casey from SWISCO
SWISCO
Expert

Your discontinued Stanley roller can most likely be replaced with the 23-041 Mirror Wardrobe Door Roller Assembly. You'll need to carefully review and compare the dimensions to confirm that it is the correct fit.

Dimensions for 23-041
Dimensions for 23-041

Alternate view of 23-041
Alternate view of 23-041

Alternate view of 23-041
Alternate view of 23-041

As long as your roller has a convex wheel, see the 48" long 23-240 track. As I mentioned, these closet parts are not available as a kit, so each part would need to be purchased separately.

Profile view of sliding mirror door bottom track
Profile view of sliding mirror door bottom track
