Need channel balance 36-3-EKS-CMC-6

Question

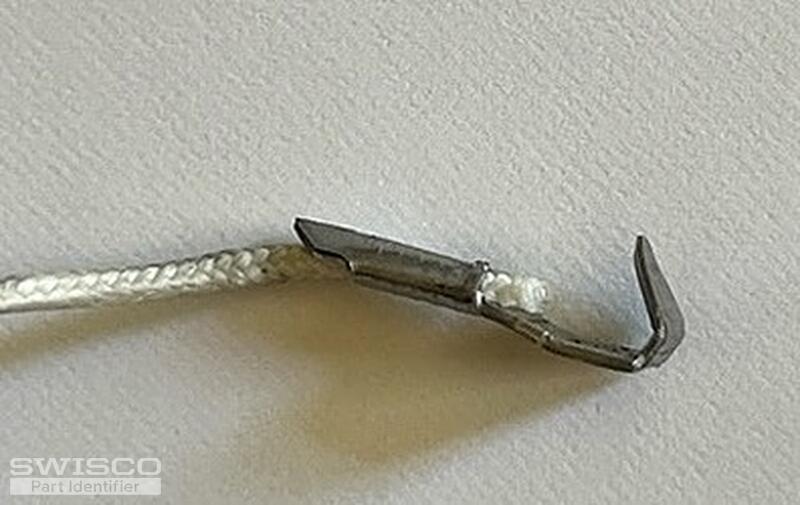

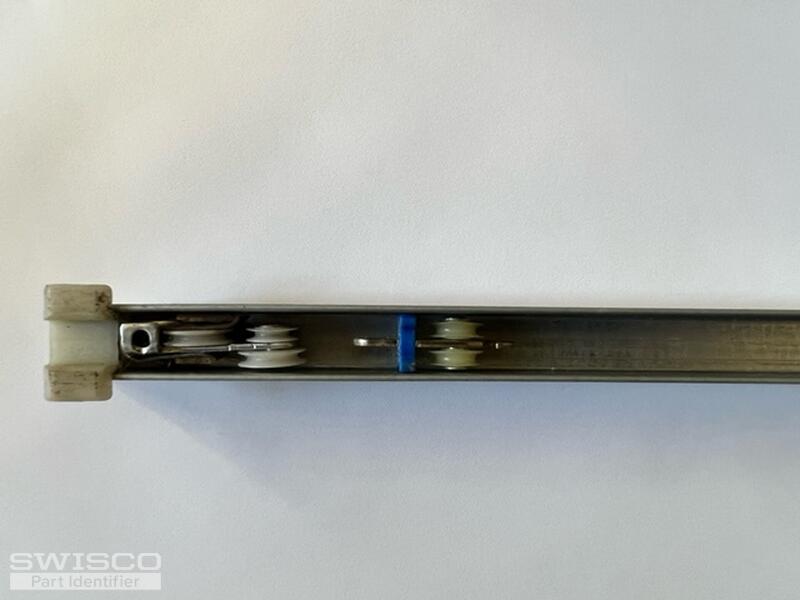

I have PGT windows and in one window the cord that attaches to the pulleys and spring broke. The channel balance is 37 inches long without the end guides.

36-3-EKS-CMC-6 is written on the side of the channel balance

Emily · Accepted Answer

Hello!

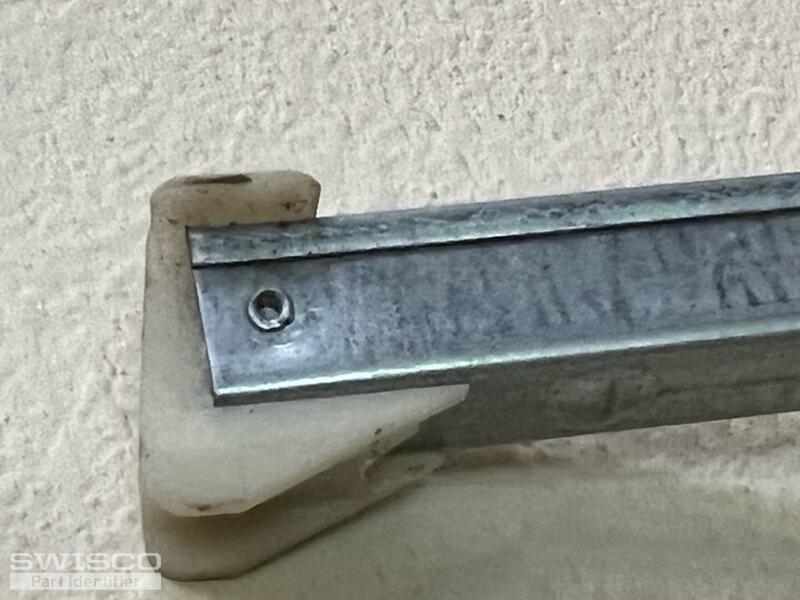

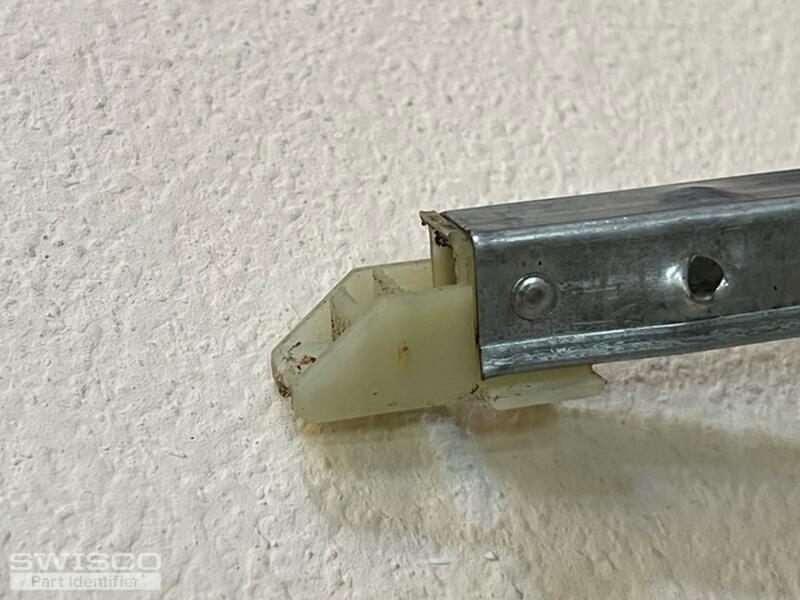

With this combination of attachments, you could have either an S380-37 or S385-37 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You will also need a 3630 stamp option.

Comparison of the S378, S380 and S385 balance shoes.
