Need channel and SHOE
Hello,
I can't be sure with the pivot shoe installed but what I can make out resembles the 15-178 or 15-188. The determining factor would be how the width and thickness compare to yours.
As for the balances, yours are too damaged to identify but I can tell you that these pivot shoes are commonly used with the S770 channel balances. We would need to see the clip attached to the pulley of an undamaged balance to confirm if these are the replacements you need. We'll also need you to write out the exact length of your metal balance channels. Thank you!
Hi Casey, thank you for your feedback
The pivot shoe is 1 1/4 wide by 1/2 inch thick
The metal channel bar is exactly 20 inches long

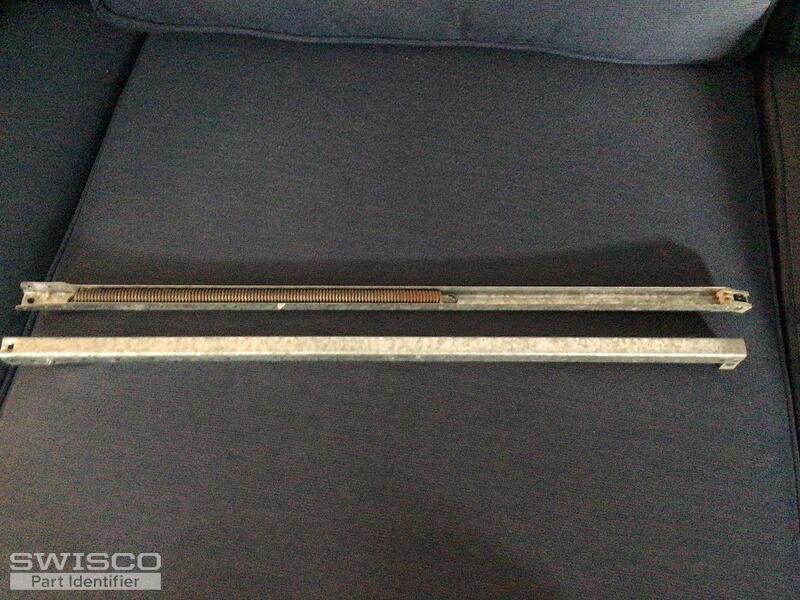

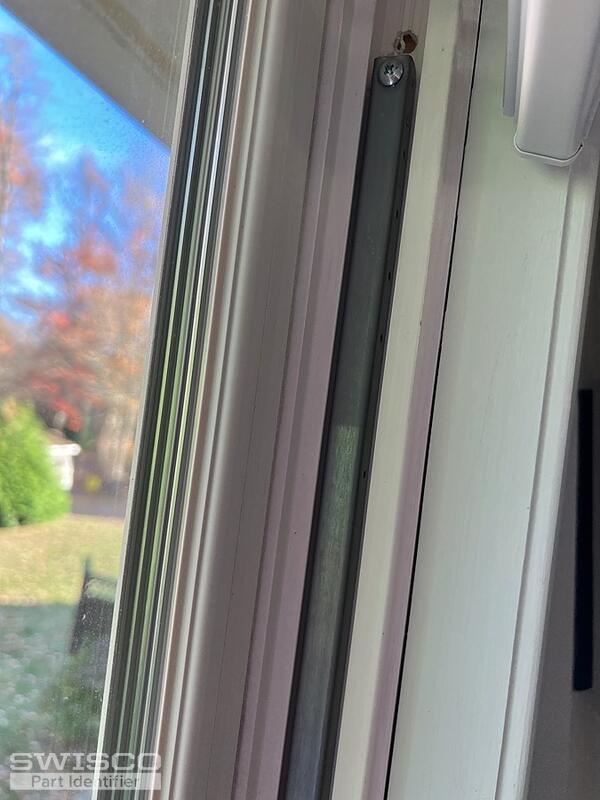

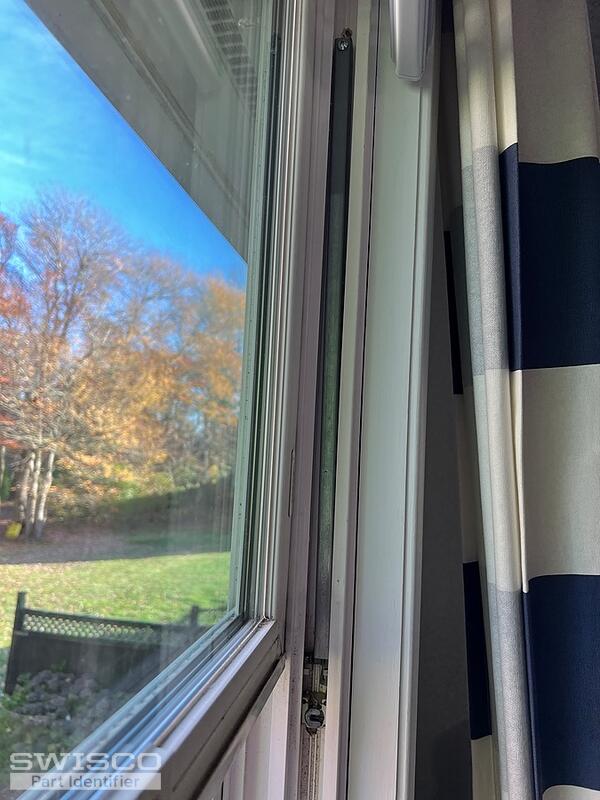

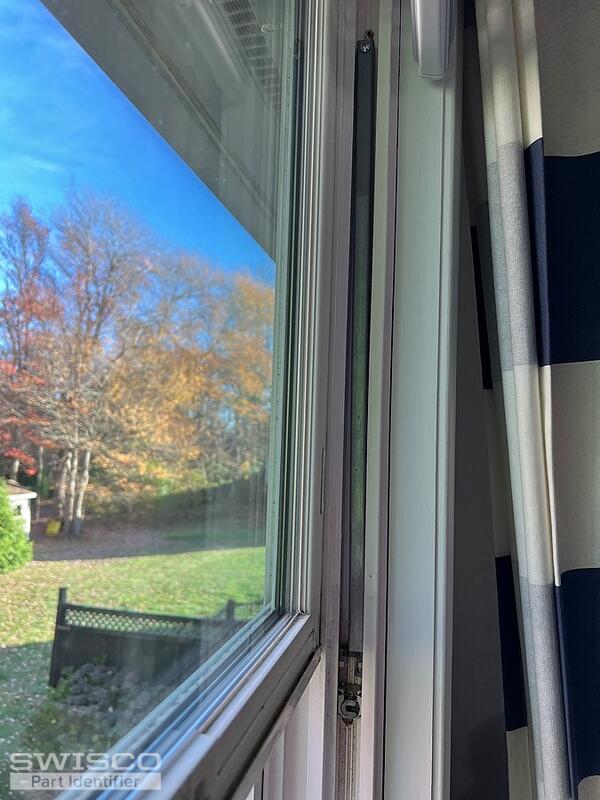

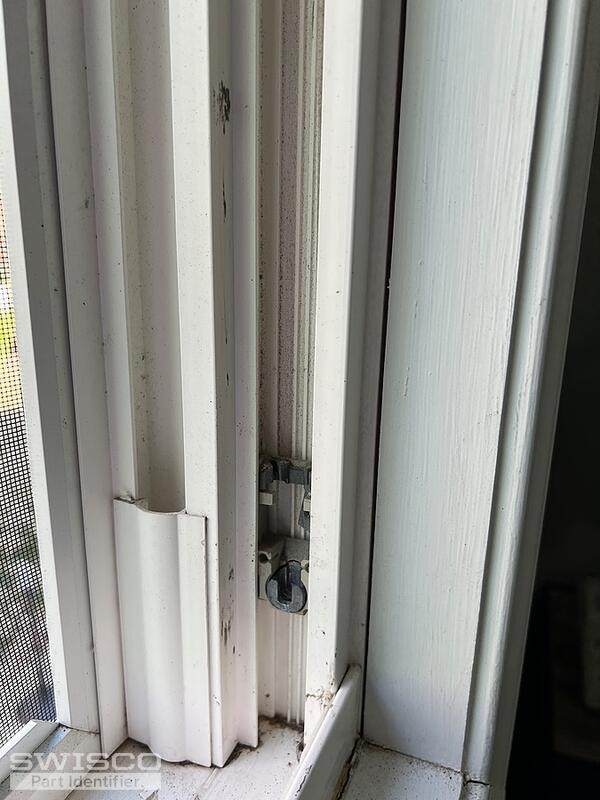

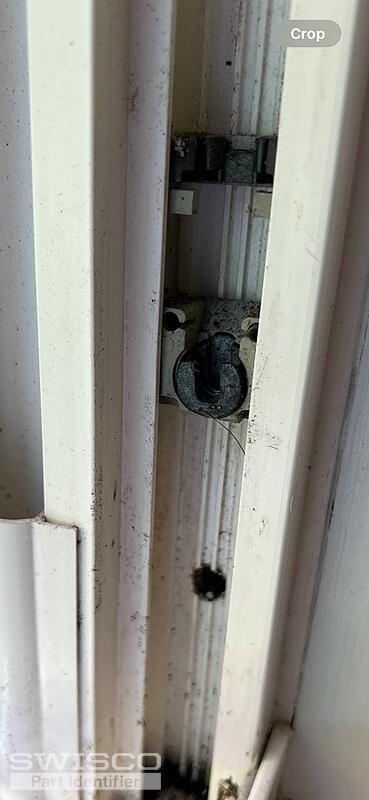

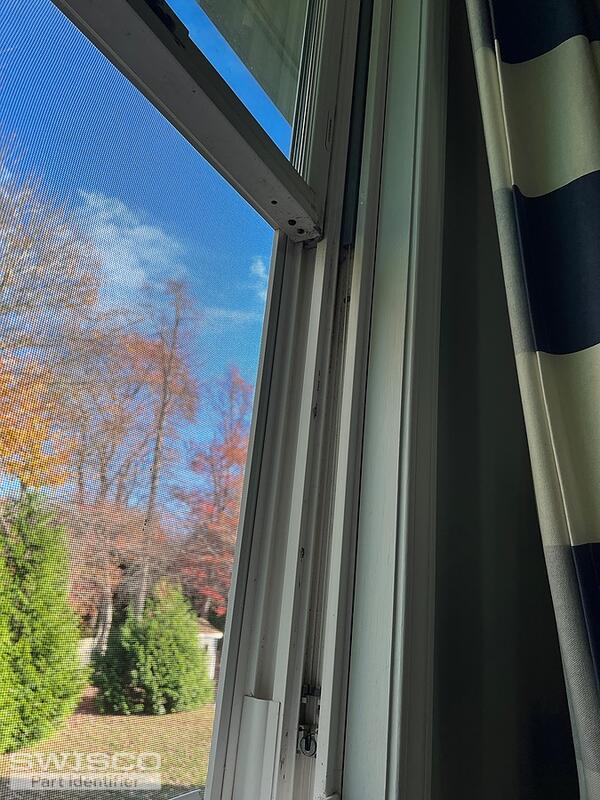

Attached are pictures of the complete channel Bor and shoe . Hopefully it gives you some direction of where to go and parts needed.
Thank you, PJ
Thanks for getting back to us. Your pivot shoe dimensions match the 15-188.
As for your balances, see the S770-20. If all of the balances have the same 19DS30 stamp, we should be able to supply them through a custom order. We'll just need to confirm the number of replacements you need, with the minimum being two.
We're happy to help. Just let us know if you need two or more balances and we can work on getting these balances quoted for you.
