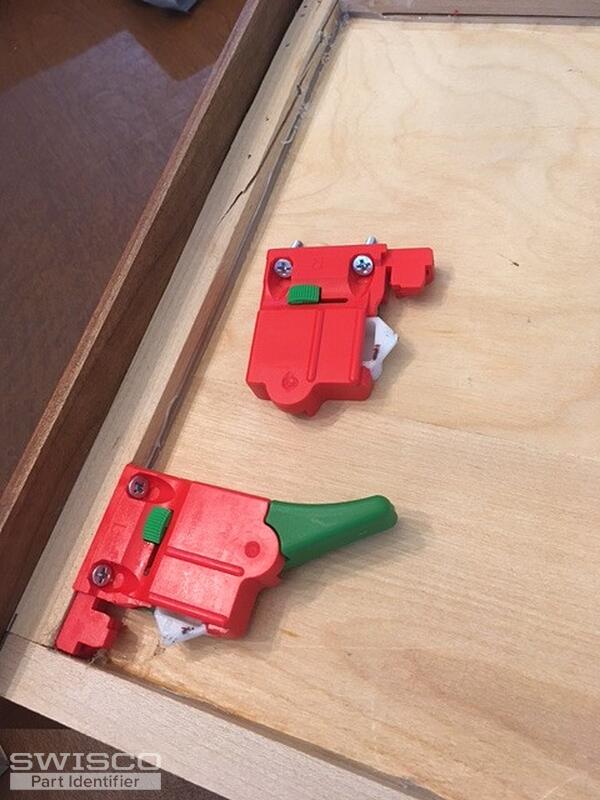

Kitchen cabinet drawer slide "Front Fixing Bracket"
Part # 793.025 (.10.01) is printed on the device.
From house built in 2005
Screws affix at an angle (appx 70 degreesd?) from the top of the device into the rear underside of the front of the drawer box.
There is a green slide on the face of the device that actuates a green plastic slide height adjusting plate to protrude or retract for slight adjustment of the drawer angle.

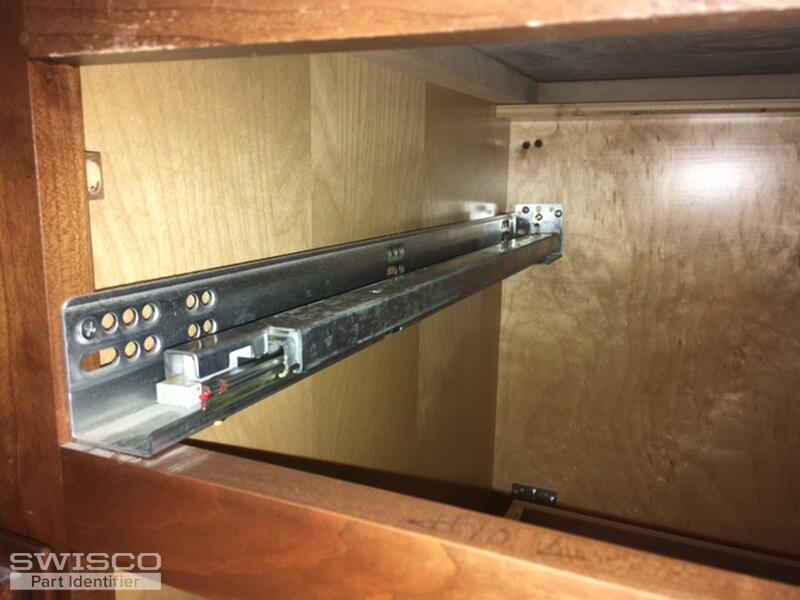

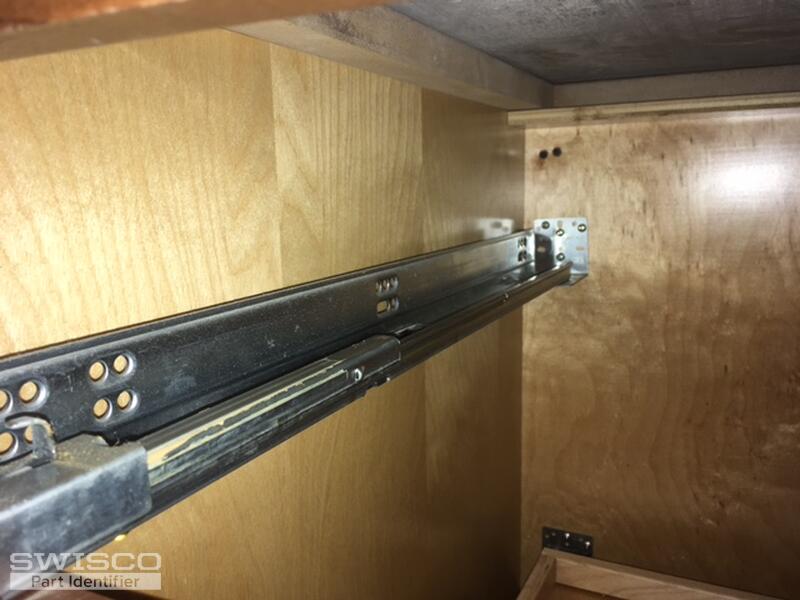

The slide mechanism to which this bracket is supposed to connect does not seem to have a part#, but the bracket that holds the slide to the back wall of the cabinet shows a part # 792N375 .
The exterior dimensions of the drawer box, not including the finished face, are 21"L x 11 5/8"W x 3 3/4"D.
Need the brackets or a fully compatible solution to get my drawers back (this is one of two identical drawers with this issue).
Need compatible "Front Fixing Bracket" to this Dynamic NT Part # 793.025
Home Owner from Toms Brook, VA
Jun 15, 2023 2:31 pm
3 user uploaded images
2 Replies
Casey from SWISCO
Jun 16, 2023 9:51 am
Hello,
We do not carry the exact drawer-locking device shown in your last photo but it is similar in design to our 32-336. Look over the specifications of this part below and see if you might be able to adapt this to work for your repair.
Unfortunately, we do not carry a replacement for the drawer sliders shown in your first two photos. I'm sorry that we won't be able to assist with this part of your repair but please let us know if you have any other hardware questions. Thanks for posting.
Dimensions for 32-336
