Need corners & rollers identified

Quick Learner from Wentworth, MO

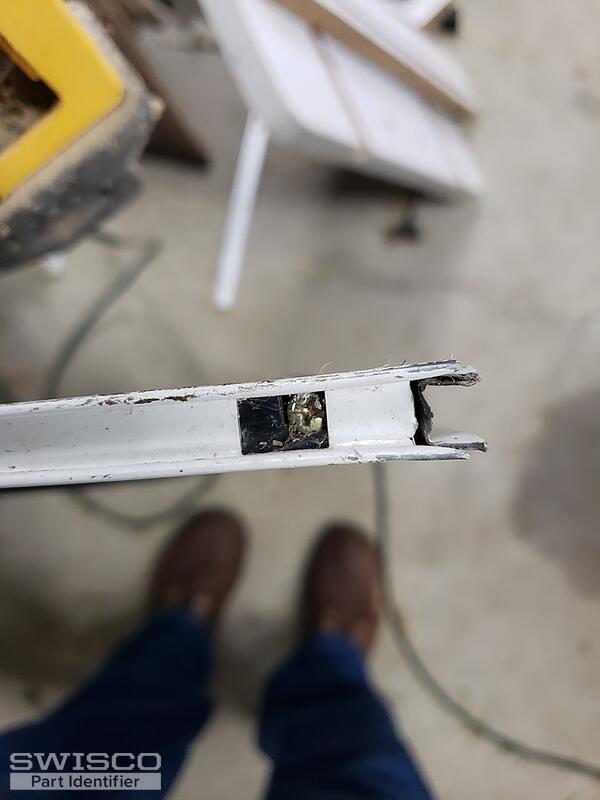

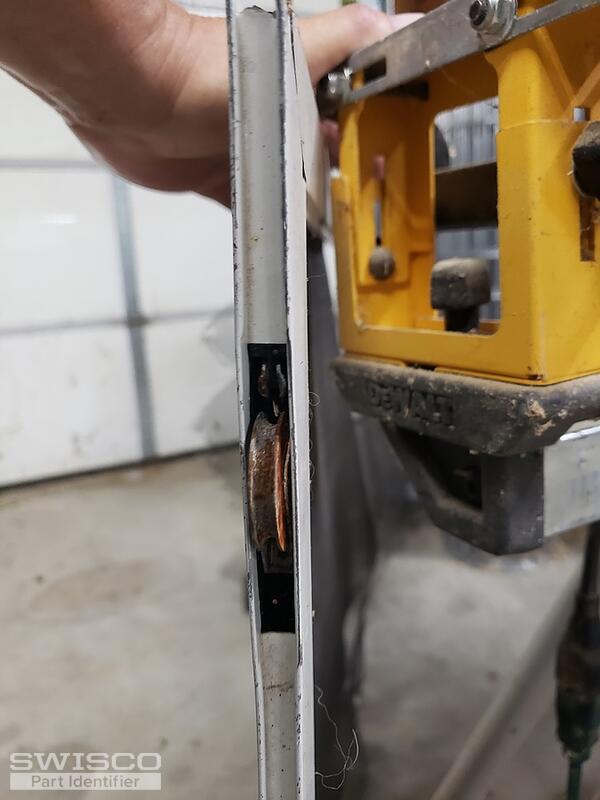

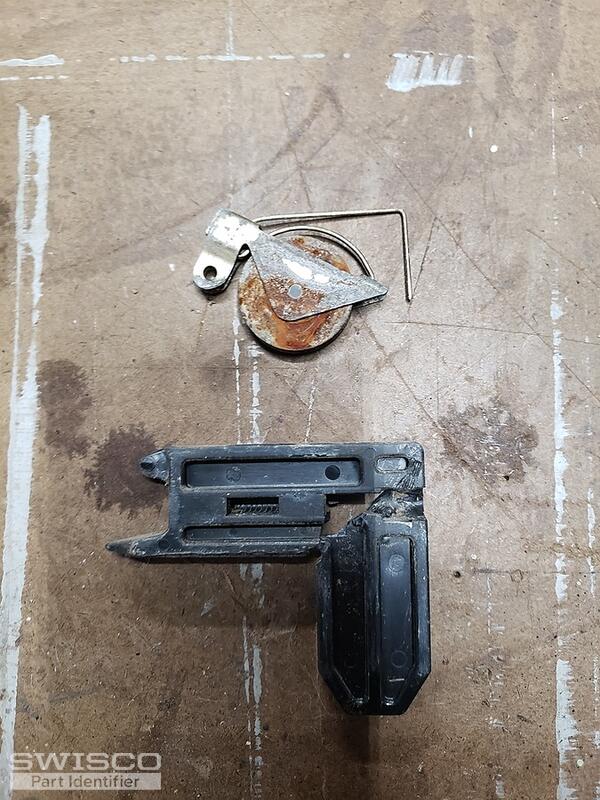

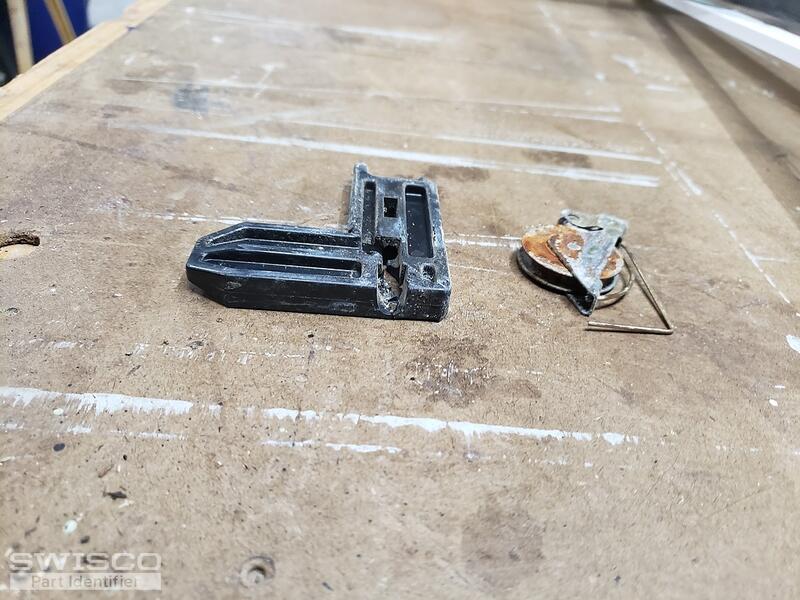

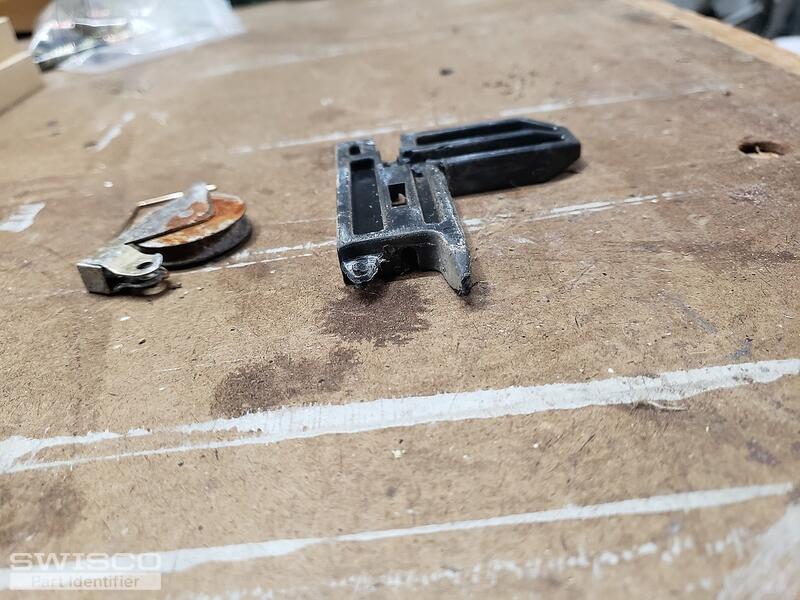

I cannot find any markings on the screen door or patio door frame. Can you help identify these parts and do you stock them? All four corners appear to be the same and screen door appears reversible. I need keeper for the latch as well but have reached the max photo upload limit and will have to submit those in a separate request.
5 user uploaded images
5 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

Your screen door corner looks like an older version of the 95-020, which is compatible with the 84-104 and 84-091M rollers. Take a look and see how the dimensions of both options compare to your roller. Thanks for posting!

Quick Learner from Wentworth, MO
Thank you Casey. I checked my corner piece dimensions against the 95-020 and they all match with the exception of the 2-13/16" dimension. Mine are 3-5/16". Do you have anything that would accommodate that? It is the corner leg that attaches to the roller, so it will affect roller positioning and I'm thinking that may be a critical dimension.
Quick Learner from Wentworth, MO
Is the 84-016 nylon roller the same fitment as the 84-104 with metal roller shown above? I'm wondering if they're interchangeable or if one is recommended over the other. Nylon just seems like it w[uld be quieter.
Dave Sr.
Dave Sr. from SWISCO
SWISCO
Expert

I have used the 95-020 in the past to replace that black plastic corner you show in your photos without any problems.

As for the nylon wheel of the 84-016 compared to the metal wheel used with the 84-104, my wife prefers the nylon wheel since she also said that it rolled a little quieter. I prefer the metal because I believe it will last longer but it's ultimately a personal preference.
