Need crank handle and lock handle

Question

Hi good morning!

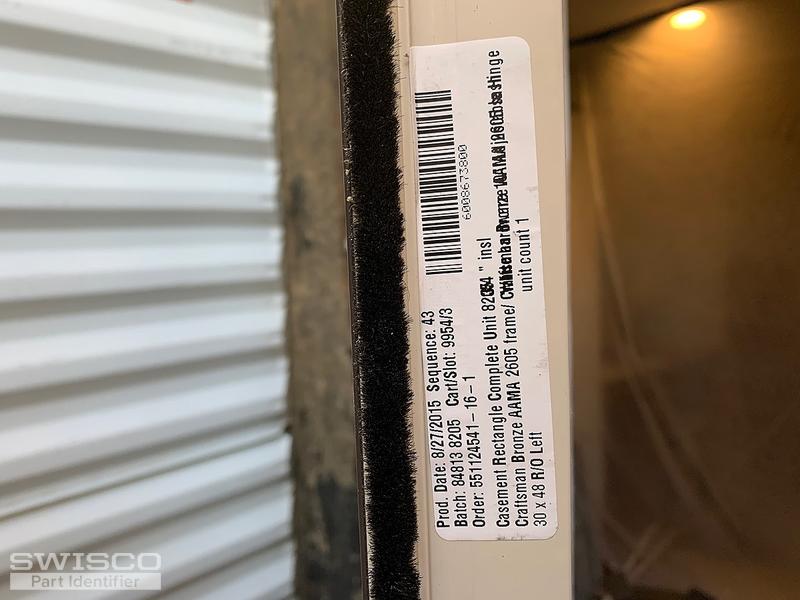

I think the window is a weather guard window.

It appears to have an 11/32 crank handle head and I think it is truth hardware from my research. Actual measurement is closer to 21/64.

I found this item I think will work for the handle. Folding crank handle, 11/32" 39-205 beige

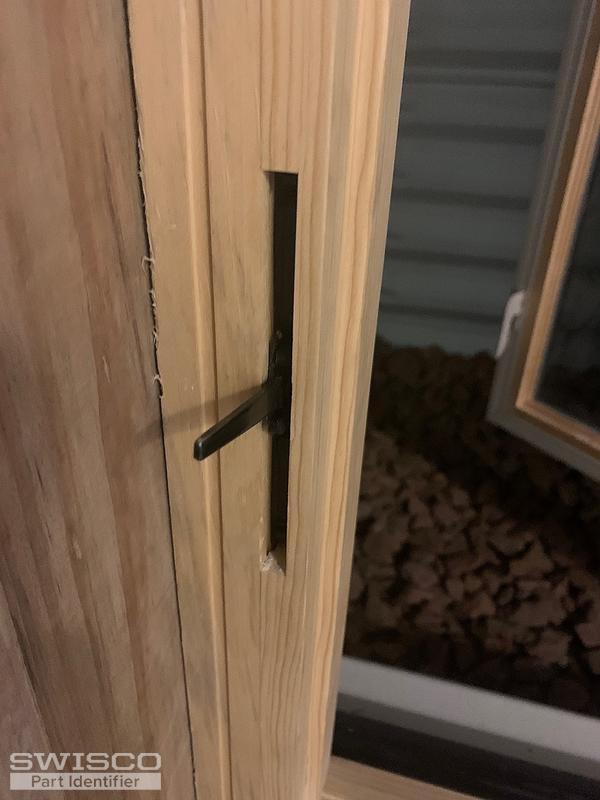

But cannot find any info on the locking handle part. Have you seen that type before? I got the window second hand at a habitat for humanity store that's why I don't have any info on it. I didn't realize it wasn't a very common window.

Tom · Accepted Answer

Hello! As long as your old handle has a hole diameter of 11/32", then our 39-205 should work well for you.

I'm not sure about the locking handle. There could be a few different options. Odds are this is a Truth brand lock, so start by looking at our 38-205, 38-208, and 38-209. Keep in mind that you may not have any of these, but they're a place to start at least. You'll want to remove the old lock from the window entirely to ensure that everything matches up. It'll be next to impossible to confirm a match as long as it's still in the window.
