Need door Handle - Window Master AXSI 297.1 -1975, IG CFR 1201, CIGCAT II

Hey there!

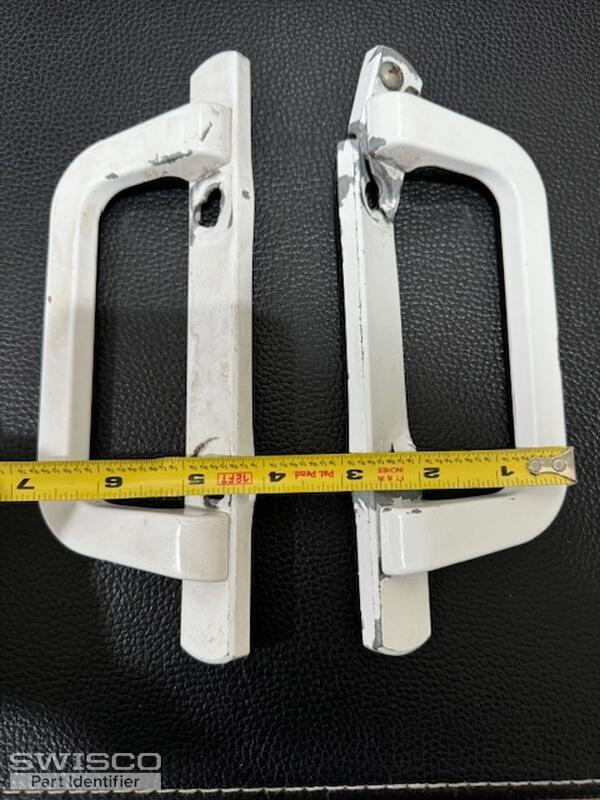

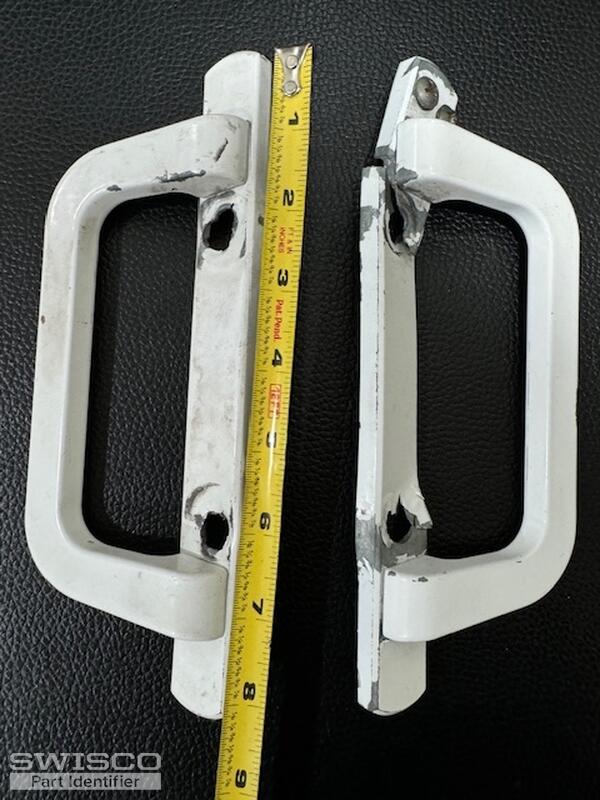

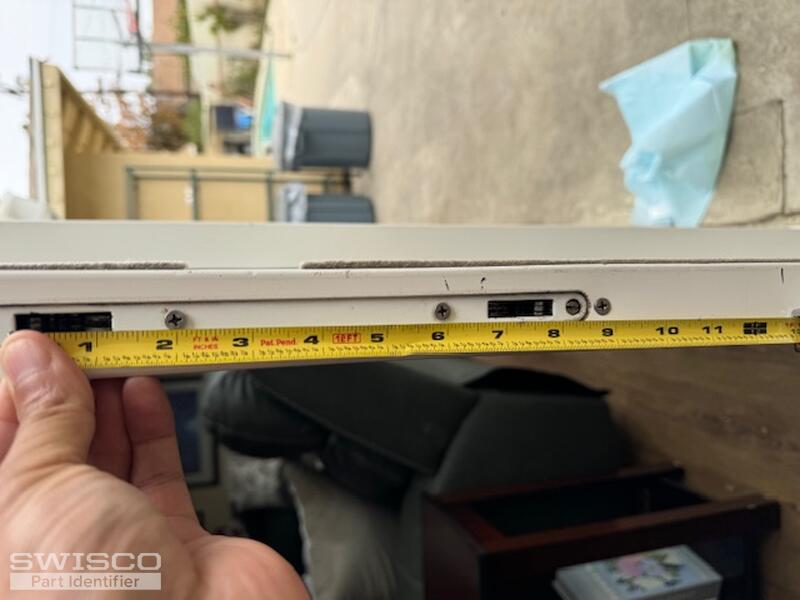

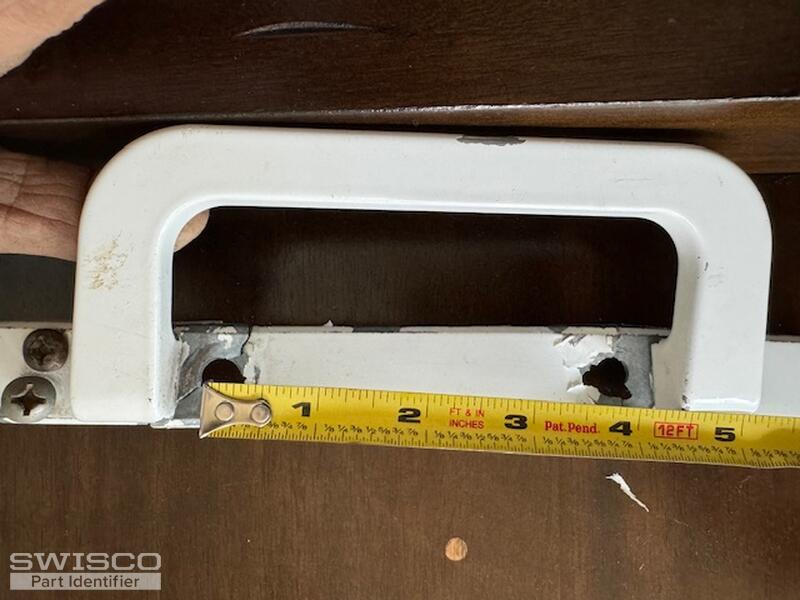

Thanks for reaching out to us. Can you confirm the distance between the two installation holes, measured from the center of each hole? Can we also see a photo of the mortise lock?

Thank you for getting back to us. Your mortise lock resembles the 82-239. This lock is often used with handles with 3-15/16" hole center spacing. It's hard to say from photos of a tape measure but I wonder if the installation hole center spacing could be 3-15/16" for your old handles. We recommend you confirm that first. If it's indeed 3-15/16", take a look at the specifications for the 82-030 and see how they compare with yours.

Hole center dimensions for 82-030

Dimensions for 82-030

Alternate image for 82-239
