Need door part- sliding glass door

A home owner from Colorado says:

January 16, 2018

Hi, I am looking for a replacement handle for my sliding door. The only specs I could find were that it is a PPG Herculite KHP sliding glass door. I assume it was put in around the 80's. The numbers I found are 16CFR1201 CII, SGCC 1605 42 02. I can also get you the Ansi number. Please let me know if you have this handle. Thanks

Casey from SWISCO responded:

January 17, 2018

Thanks for the detailed information. Unfortunately, that information alone will not help us identify a replacement. Could you send us some photos of the handle? If you could also send us some measurements and dimensions of the handle as well as the thickness of the door this handle will be installed to, that would be a big help.

A home owner from Colorado says:

January 23, 2018

Here are the photos of the needed replacement handle.
Thanks

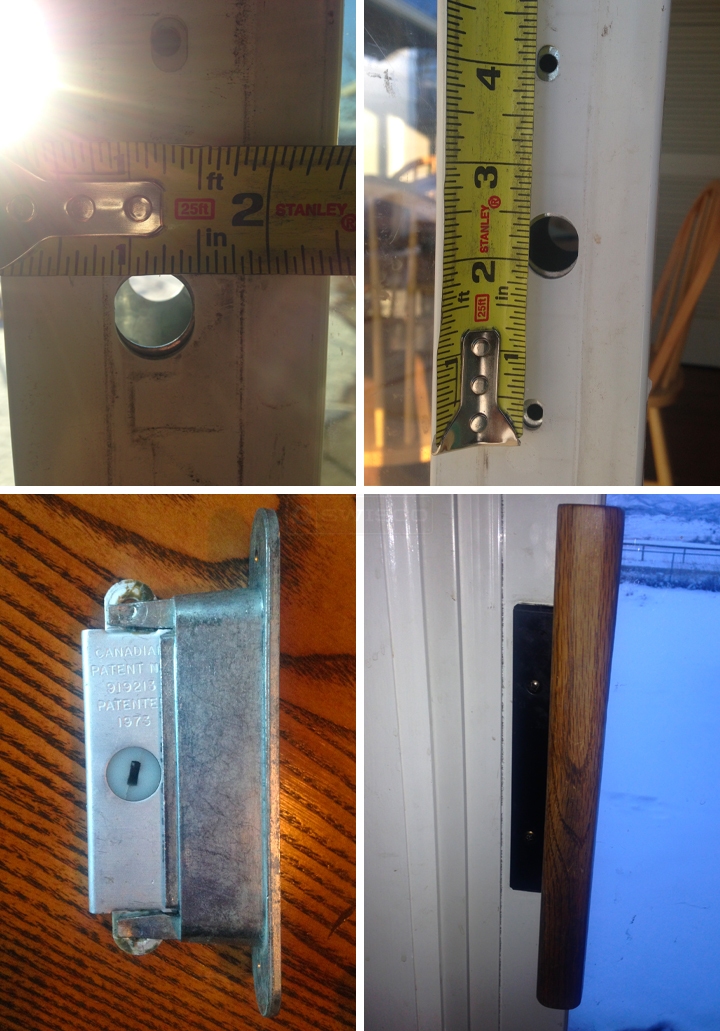

User submitted photos of patio door hardware.

Dave Sr. from SWISCO responded:

January 29, 2018

Perfect. Thank you. I believe our 82-020 handle set would work best for you. Based on the size of your mortise latch and keeper would determine whether you would go with our 82-211 or 82-214. Be sure to let us know how you made out.

Mortise Style Handle Set, 3-15/16"

82-020

$40.72

Mortise Latch & Keeper, 3/4" Wide

82-211

$18.77
