Need full set of hardware for 3 left hand crank windows 18.5in x 32.5in : SWISCO.com

Home Owner from 96734

Jul 22, 2024 3:17 am

1. I found the crank part.

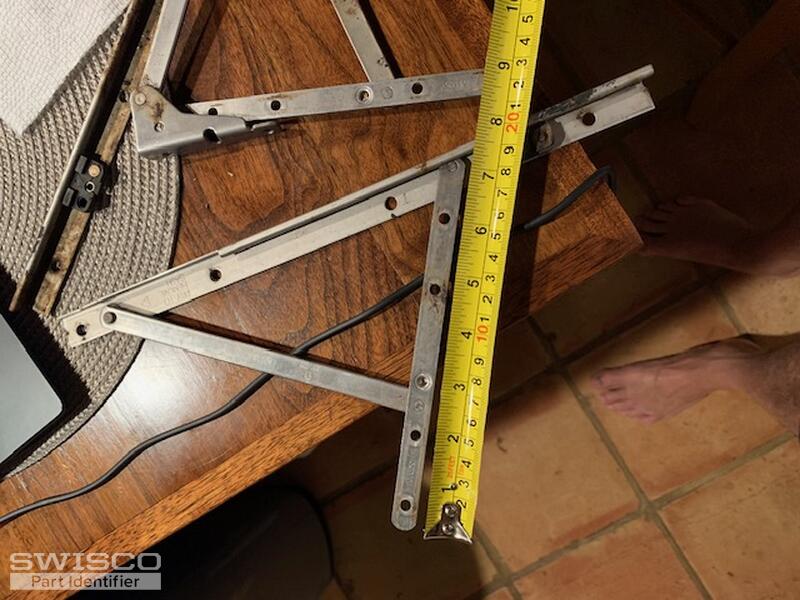

2. The hinges are 13 inches long and I can only find 10 inch long ones.
3. the handles and crank covers are ok. i dont need new ones of those.
thanks!

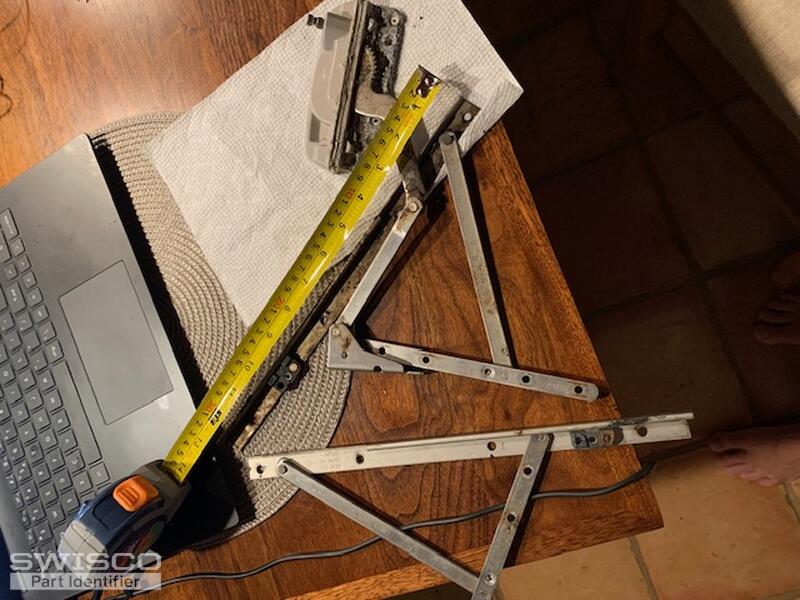

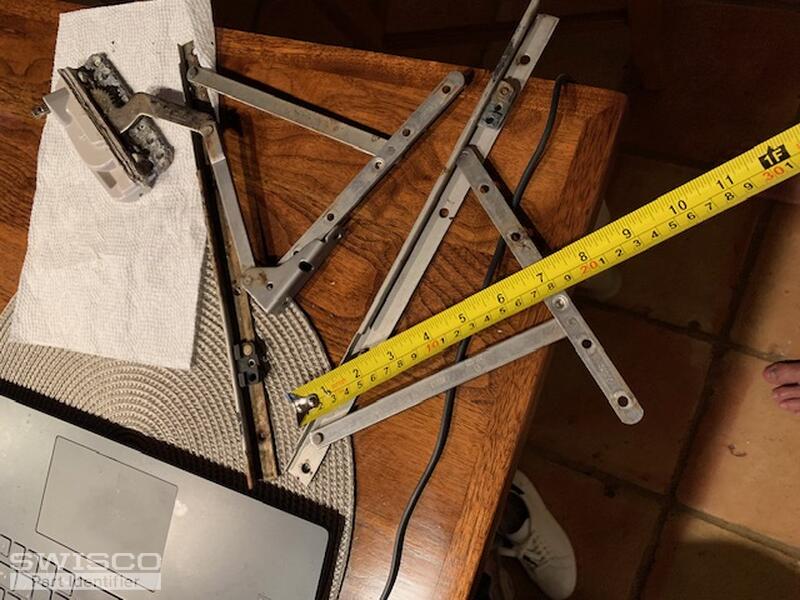

4 user uploaded images

4 Replies

Emily from SWISCO

Jul 23, 2024 2:27 pm

Hey there!

Thanks for reaching out to us. We don't sell a hinge set with a 13" base, unfortunately. The 36-049 appears to be our closest option. Take a look at the specifications and see what you think. We just suggest that you replace the top and bottom hinges at the same time.

Dimensions for 36-049

Home Owner from 96734

Jul 23, 2024 2:43 pm

OK I'll check if the 14-inch hinges will work. I actually do need the crank assembly if you have them. I can't find them at the moment, would you mind posting them here along with the price? Thank you.

Emily from SWISCO

Jul 23, 2024 4:43 pm

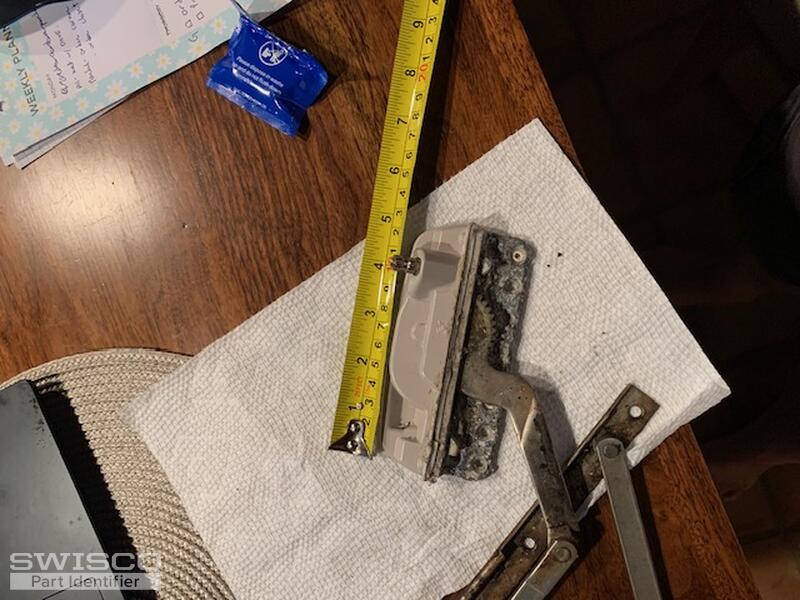

Sure, the operator in your photos brings the 39-220B and 39-221B to mind. I recommend you review our specifications to ensure they match up with your old operator assembly.

We also have the 39-375, 39-376, 39-451, and 39-452 covers with handles. Pricing for our parts can be found on their respective store pages as well!

Detail of 39-220B

detail of 39-221B
