Need help determining what channel balance to get

Start a new Discussion

Home Owner from Arizona

Jan 6, 2012 7:36 pm

Looking to replace 28" Channel Balance. It's stamped with 2730, BSI, and RR. Thanks

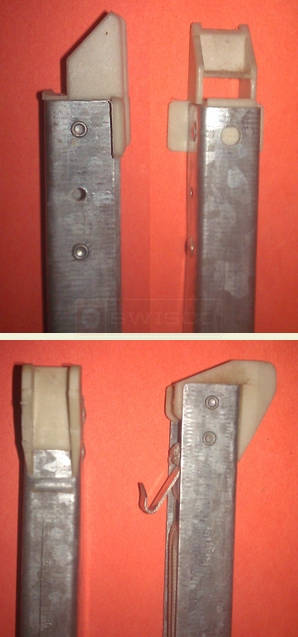

A customer submitted photo of channel balance attachments.

6 Replies

Tom from SWISCO

Jan 9, 2012 9:48 am

Thanks for posting in our discussion board! Before I can recommend an applicable substitute, I just need a bit more information, namely regarding your bottom shoe.

Please refer to the following chart and pick out your shoe from the examples given. This will help us identify your balance Series.

Diagram on how to choose between the 15-001, 15-002, 15-004, 15-005, and 15-029 channel balance shoes.

Home Owner from Arizona

Jan 9, 2012 5:21 pm

The shoe has NO wings and the width is 1".

Casey from SWISCO

Jan 10, 2012 11:11 am

Thank you for the clarification! However, are you sure that your shoe is 1"? I ask this because based on your picture, the style appears to be closer to our 1-1/8" 15-001 shoe. It is, of course, impossible for me to tell by the picture alone. Can you please double check your measurement? Is your shoe closer to 1" or 1-1/8"? I apologize for the inconvenience.

Home Owner from Arizona

Jan 10, 2012 4:51 pm

It could be 1-1/8". When I measure it with my "highly" precise tapemeasure (pun intendend)it looks to be 1-1/16"

Tom from SWISCO

Jan 11, 2012 10:53 am

Thank you. I think that should be all the info we need to get you started! With a winged top and a non-winged bottom, you will need the S395-28 with the 2730 option.
