Home Owner from Highlands Ranch Colorado
Jun 6, 2023 11:01 am

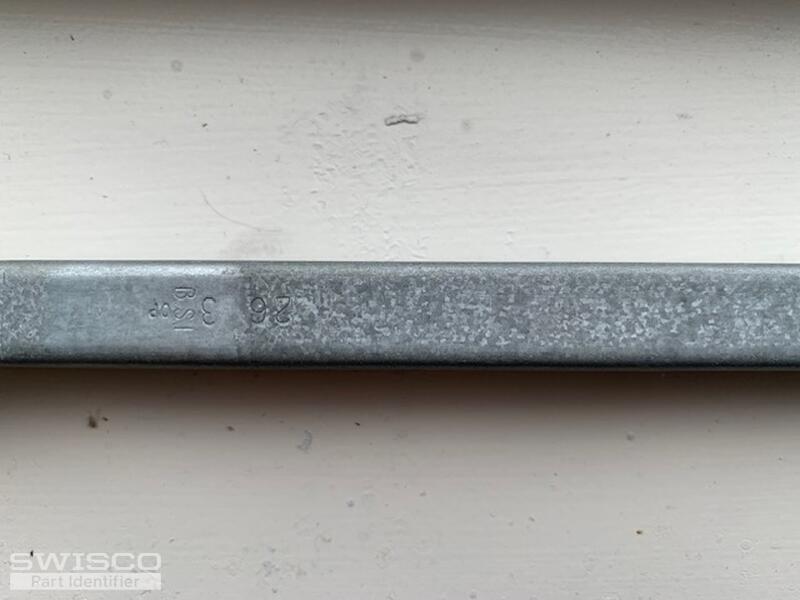

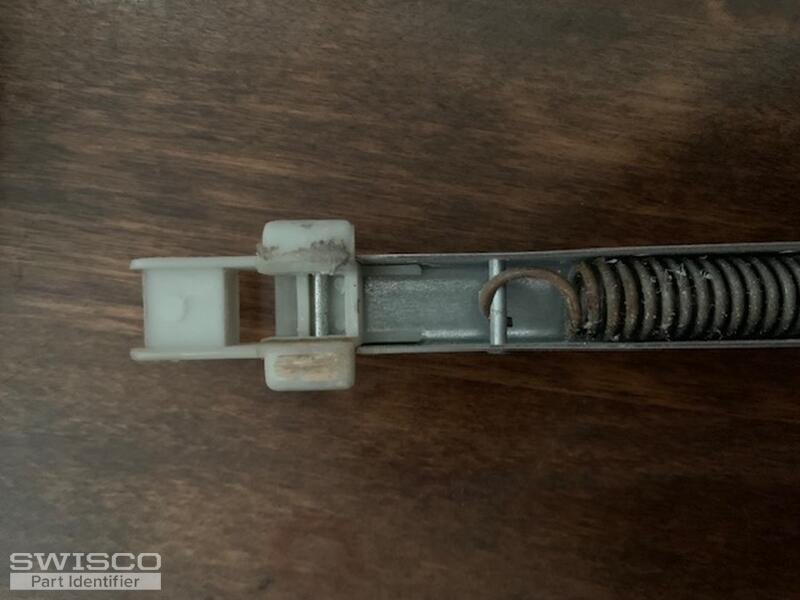

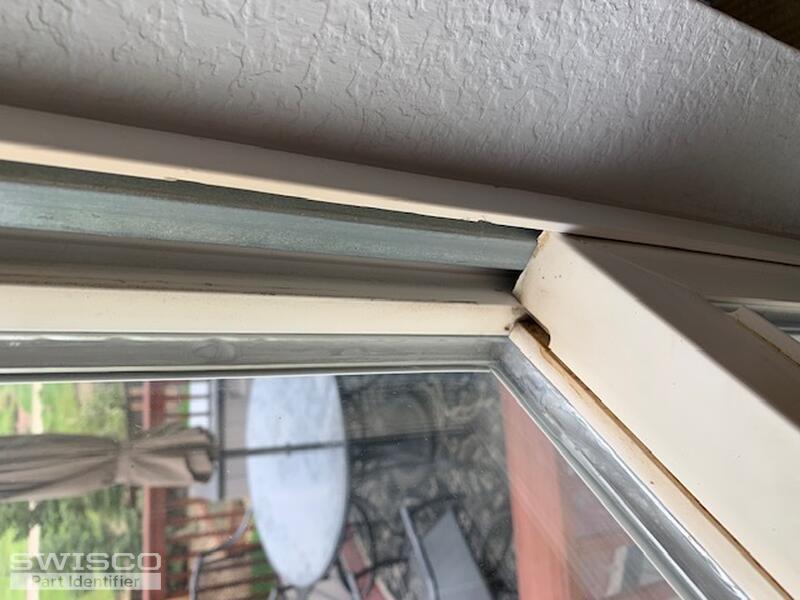

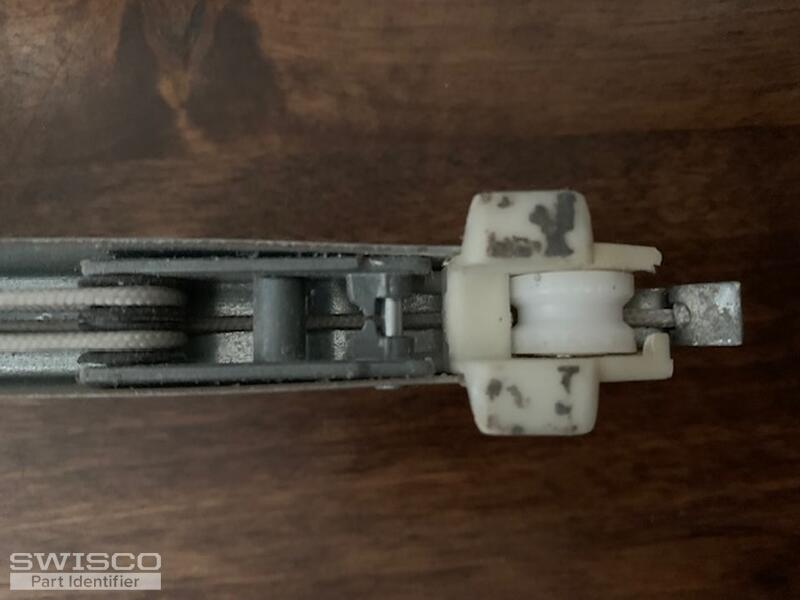

One of the channel balances popped up and out of the window (not dropping down like so many Youtube videos show), not sure what's causing it, but I figured that I should replace them. I took the channel balance out and took some photos. Both the top shoe and bottom shoe have wings, and the stamp on the metal channel shows 26-3. Please let me which one of your balances is a good match. It seems to me 380/385 could be. Thanks!
4 user uploaded images
8 Replies
Emily
Emily from SWISCO
Jun 7, 2023 3:43 pm
SWISCO
Expert

Hello there!

Thank you for reaching out to us. We can help supply this balance but it will have to be a custom order due to its configuration. The pulley wheel is built into the bottom fitting itself and this balance features an extended cord travel as well as a metal channel length of 26-5/8" which is what makes it custom. I will just need a few more details before we proceed.

Can you show us a full and unobscured view of the metal clip attached at the end of the pulley cord? We would also like to see the bottom fitting from a side angle.

Home Owner from Highlands Ranch Colorado
Jun 7, 2023 4:20 pm
Hi, thank you for getting back to me. I'm more than happy to provide further details. BTW, I'm thinking of replacing both balances. Would it still be required that a matching custom balance needs to be made? Thank you for your help!
Emily
Emily from SWISCO
Jun 8, 2023 8:39 am
SWISCO
Expert

That's a good idea! We always recommend placing your balances in pairs. Both balances would need to be a custom order, yes.

Home Owner from Highlands Ranch Colorado
Jun 8, 2023 9:00 am

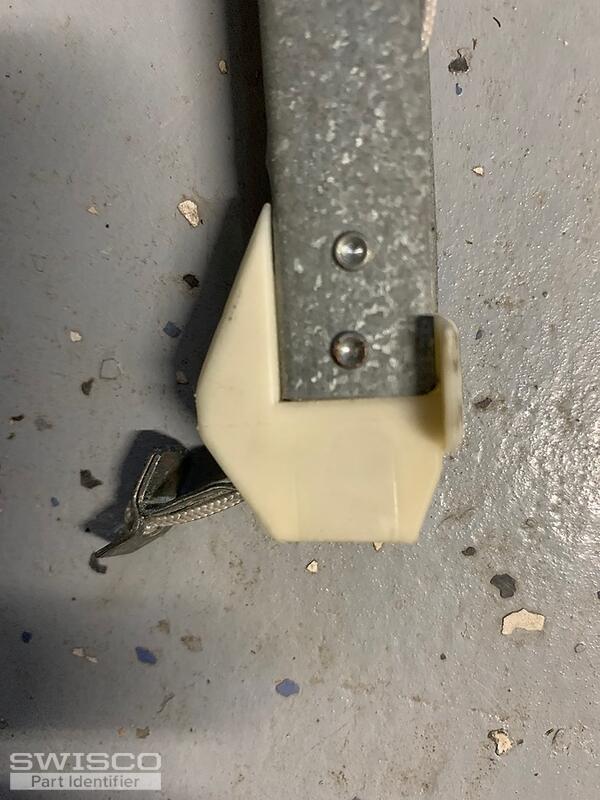

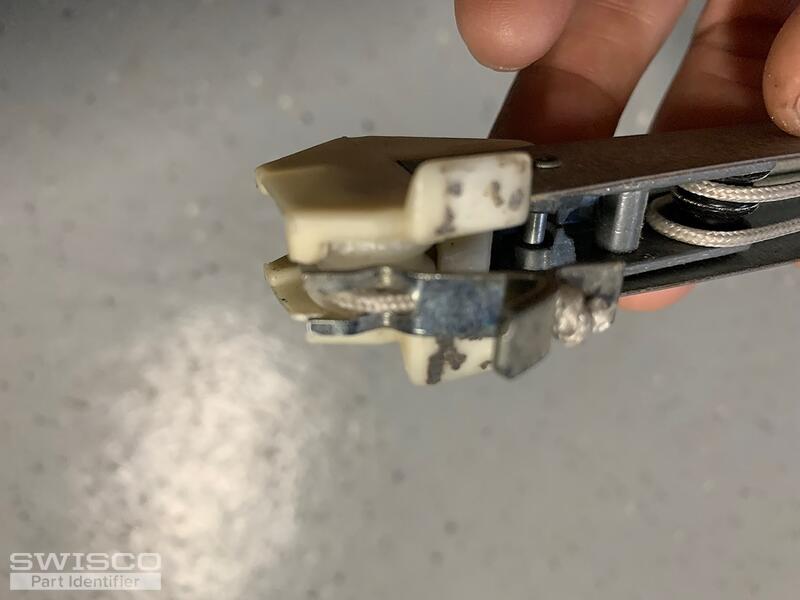

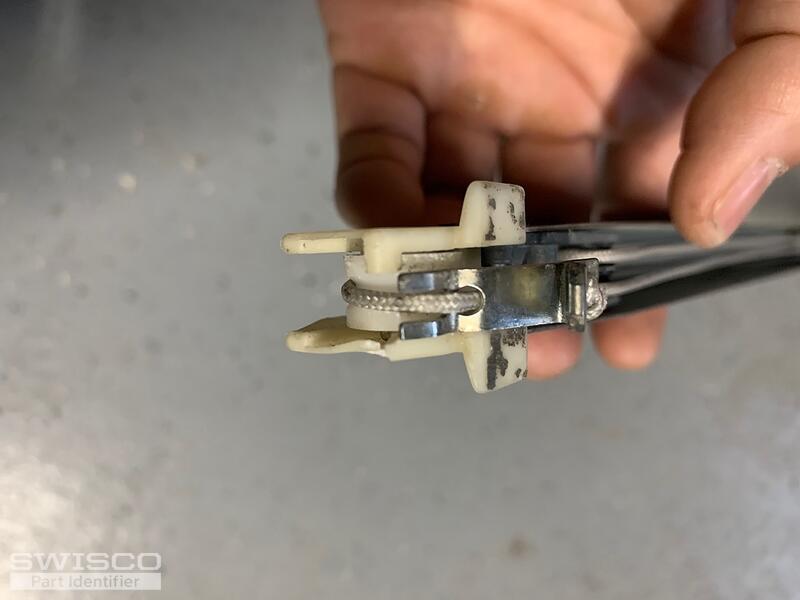

Let me know if these photos help. I can provide more if needed. There is a piece of plastic that has broken off from the bottom shoe that would have kept the metal hook in place. That's why the hook is loose right now. Thanks.
3 user uploaded images
Emily
Emily from SWISCO
Jun 8, 2023 9:33 am
SWISCO
Expert

This is perfect! What I will do now is email you a purchase link and price quote for 2 balances that you can use to place an order on our website. Please note, there is a 5-6 business week lead time.

Let me know if you have any questions and I'd be happy to help!

Home Owner from Highlands Ranch Colorado
Jun 8, 2023 12:17 pm
That's great, I really appreciate it.
Emily
Emily from SWISCO
Jun 8, 2023 1:53 pm
SWISCO
Expert

You got it. Please let me know if I can be of further assistance and I'd be happy to help.
